External Start/Stop Input (EXT I/O)
You can use an external signal to start and stop the DL850/DL850V.
External Start/Stop Input Terminal
The External Start/Stop Input terminal and the GO/NO-GO I/O terminal are the same terminal. This
terminal is used as an external start/stop input when the GO/NO-GO determination I/O function is not
used (when on the GO/NO-GO menu, Mode is set to OFF).
Specifications
The connector uses an RJ-11 modular jack. Connect the separately sold 720911 cable to the
connector.
6
1
1
Pin no. Signal
2
3
4
5
6
EXT EVENT IN
START IN
NC (no connection)
NC (no connection)
Connector on
the DL850/DL850V
Starts on low edge, stops on high
GND
NC (no connection)
EXT I/O
Manual event. Event input occurs on low edge.
Input level: TTL (0 to 5 V)

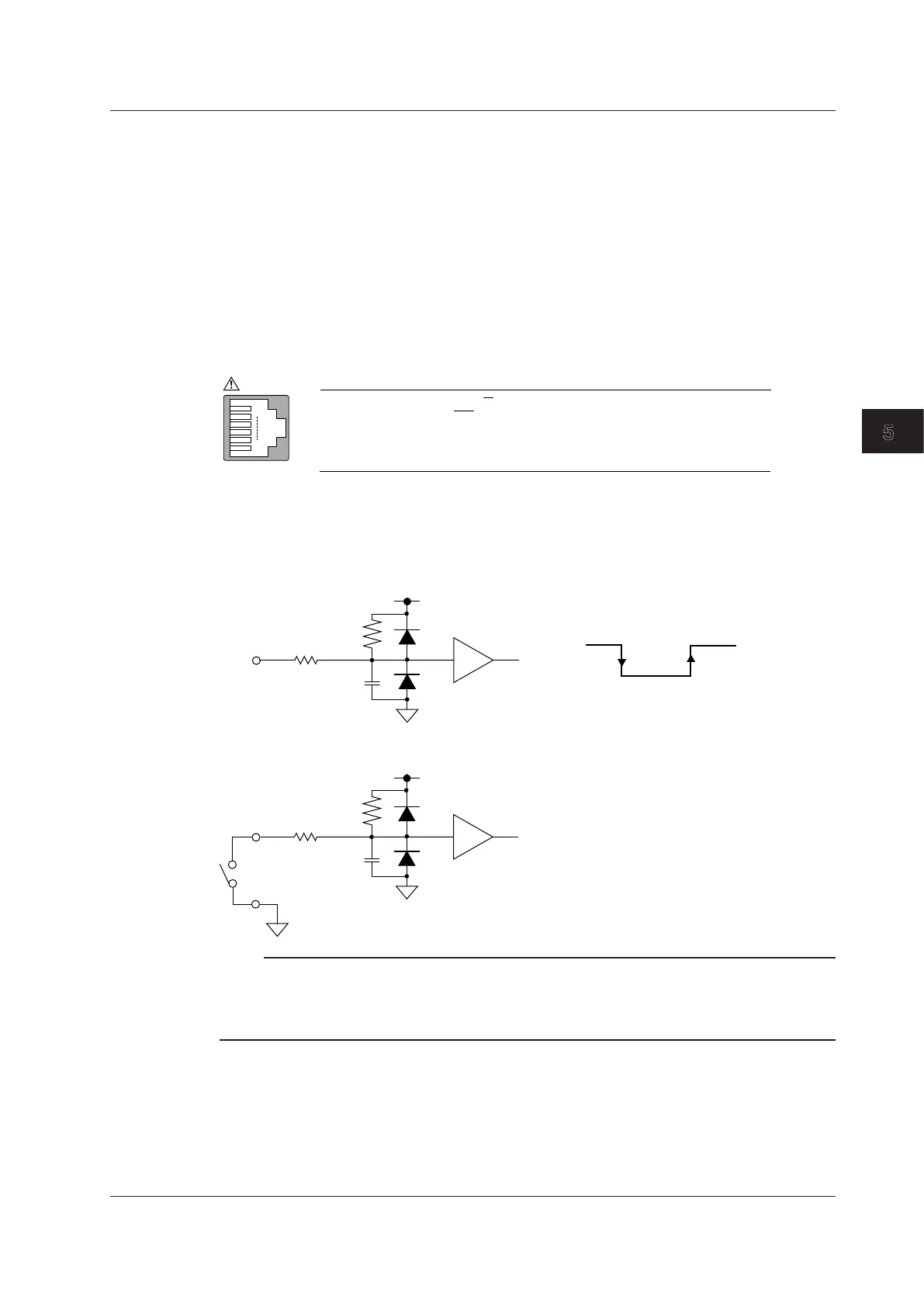

Circuit Diagram for External Start/Stop Input
+5 V
120 Ω
LCX14
4.7 kΩ
100 pF
2
(pin no.)
High
Low
START
STOP
+5 V
120 Ω
LCX14
4.7 kΩ
100 pF
2
• Contact input is possible
5
Close to start,
open to stop
Note
• Low and high edges are used to detect starts and stops.
• You can select whether to enable high edges (stops) in the external start/stop signal or disable. For
information about how to do so, see section 18.8, “Configuring the Environment Settings,” in the user’s
manual.
5.5 GO/NO-GO Determination I/O and External Start/Stop Input (EXT I/O)

YOKOGAWA DL850 ScopeCorder Specifications

General

Maximum Sampling Rate	100 MS/s
Power Supply	100 to 240 VAC, 50/60 Hz
Resolution	16-bit
Operating Temperature	5 to 40°C
Bandwidth	20 MHz
Input Types	Voltage, Temperature, Strain, Acceleration, Frequency, Logic, Current
Interfaces	Ethernet, USB, GP-IB
Trigger Modes	Edge, Window, Pattern
Number of Channels	Up to 128 (with multiple input modules)
Memory Capacity	Up to 2 G points (with /M4 option)
