YOKOGAWA DL850 ScopeCorder User Manual

When Carrying the Instrument

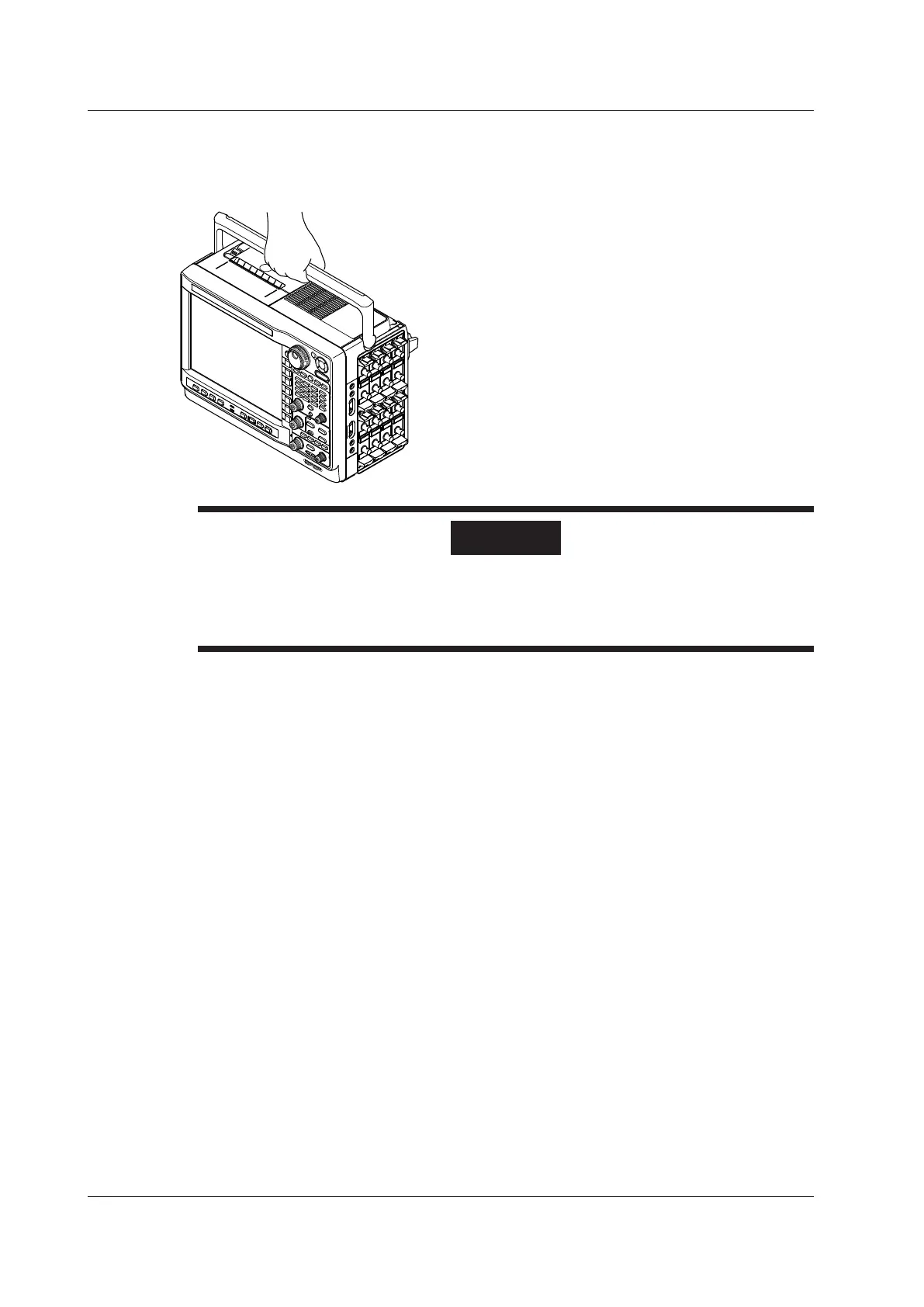

Remove the power cord and connecting cables. When moving the instrument, use the handle as
shown below, or carry it with both hands.
WARNING
• When you hold or put away the handle, be careful not to get your hand caught between the
handle and the case.
• When you carry the instrument, be careful not to get your hand
caught between the wall,
installation surface, or other objects and the instrument.
Cleaning
When cleaning the case or the operation panel, first remove the power cord from the AC outlet. Then,
wipe with a dry, soft, clean cloth Do not use chemical such as benzene or thinner. These can cause
discoloring and deformation.
3.1 Handling Precautions
3-2
IM DL850-03EN

YOKOGAWA DL850 ScopeCorder Specifications

General

Maximum Sampling Rate	100 MS/s
Power Supply	100 to 240 VAC, 50/60 Hz
Resolution	16-bit
Operating Temperature	5 to 40°C
Bandwidth	20 MHz
Input Types	Voltage, Temperature, Strain, Acceleration, Frequency, Logic, Current
Interfaces	Ethernet, USB, GP-IB
Trigger Modes	Edge, Window, Pattern
Number of Channels	Up to 128 (with multiple input modules)
Memory Capacity	Up to 2 G points (with /M4 option)
