6-16
IM DL850-03EN
Item Specifications
Battery backup The settings and clock are backed up with an internal lithium battery.
Backup battery life Approx. five years (at an ambient temperature of 25°C)
Safety standard Compliant standards
EN61010-1, EN61010-2-030, EN61010-031, EN 60825-1
• Overvoltage category (installation category) II
3
• Measurement Category: See the specifications of each module.
4
• Pollution degree 2
5
Approved (DL850/DL850V, 701250, 701251, 701255, 701267, 701261, 701262, 701265,
701270, 701271, 701275, 701280, 720210, 720220, 720221, 720230, 720240, 720241, 700986,
700987, 701953, 701955, 701956, 701957, 701958, 702911, 702912)
• Bridgehead for the strain module
Use the 701955 or 701956 with the 701270, and use the 701957 or 701958 with the 701271.
Emissions Compliant standards
EN61326-1 ClassA, EN61326-2-1, EN 55011 Class A, Group 1, EMC Regulatory Arrangement
in Australia and New Zealand EN 55011 Class A, Group 1, Korea Electromagnetic Conformity
Standard ( 한국 전자파적합성기준 )
Approved (DL850/DL850V, 701250, 701251, 701255, 701267, 701261, 701262, 701265,
701270, 701271, 701275, 701280, 720210, 720220, 720221, 720230, 720240, 720241,
700986, 700987, 701953, 701955, 701956, 701957, 701958, 702911, 702912)
EN61000-3-2, EN61000-3-3
This product is a Class A (for industrial environments) product. Operation of this product in a
residential area may cause radio interference in which case the user is required to correct the
interference.
Test items
1. Power supply terminal noise
2. Radiation emission
3. Power supply harmonic regulation
4. Power supply voltage fluctuation and flicker
Cable conditions (DL850/DL850V)
Current probe
When connecting a current probe to the input terminal and probe power terminal of a module,
attach a single ferrite core
6
to both cables on the side of the cables closest to the DL850/
DL850V.
GP-IB cable
Use a shielded cable that is 3 m or less in length.
USB cable
Use a shielded cable that is 3 m or less in length, and attach a ferrite core
6
to the side of the
cable closest to the DL850/DL850V.
Ethernet cable
Use a shielded cable that is 3 m or less in length, and attach a ferrite core
6
to the side of the
cable closest to the DL850/DL850V.
External clock input, external trigger input, external trigger output
Use a shielded cable that is 3 m or less in length, and attach a ferrite core
6
to the side of the
cable closest to the DL850/DL850V.
IRIG cable
Use a shielded cable that is 3 m or less in length, and attach a ferrite core
6
to the side of the
cable closest to the DL850/DL850V.
External HDD cable
Use a shielded cable that is 3 m or less in length.
Video signal output cable
Use a shielded cable that is 3 m or less in length, and attach a ferrite core
7
to the side of the
cable closest to the DL850/DL850V.
External I/O cable
Use a shielded cable that is 3 m or less in length, and attach a ferrite core
6
to the side of the
cable closest to the DL850/DL850V.
DC power cable
Attach a ferrite core
7
to the DC power cable.
Probe power cable
Use the dedicated cable, and wrap it once around a ferrite core
6
on the side of the cable
closest to the DL850/DL850V.

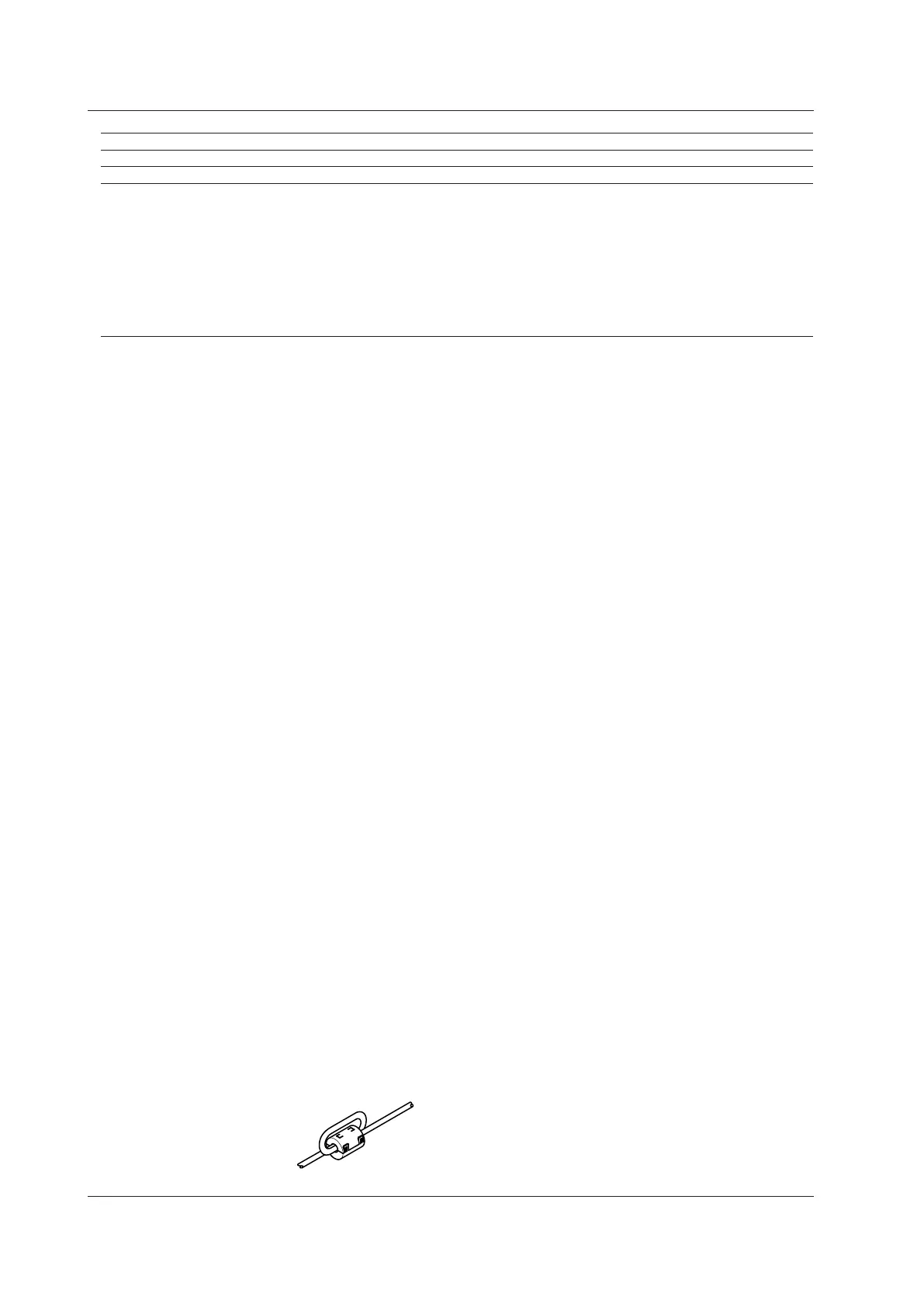

Example of wrapping the cable around once
6.12 General Specifications
To Next Page
