6.15 16-CH Scanner Box Specifications
For the specifications other than the dimensions of the 16-CH Scanner Box, see the 16-CH
temperature/voltage input module (720221) specifications.

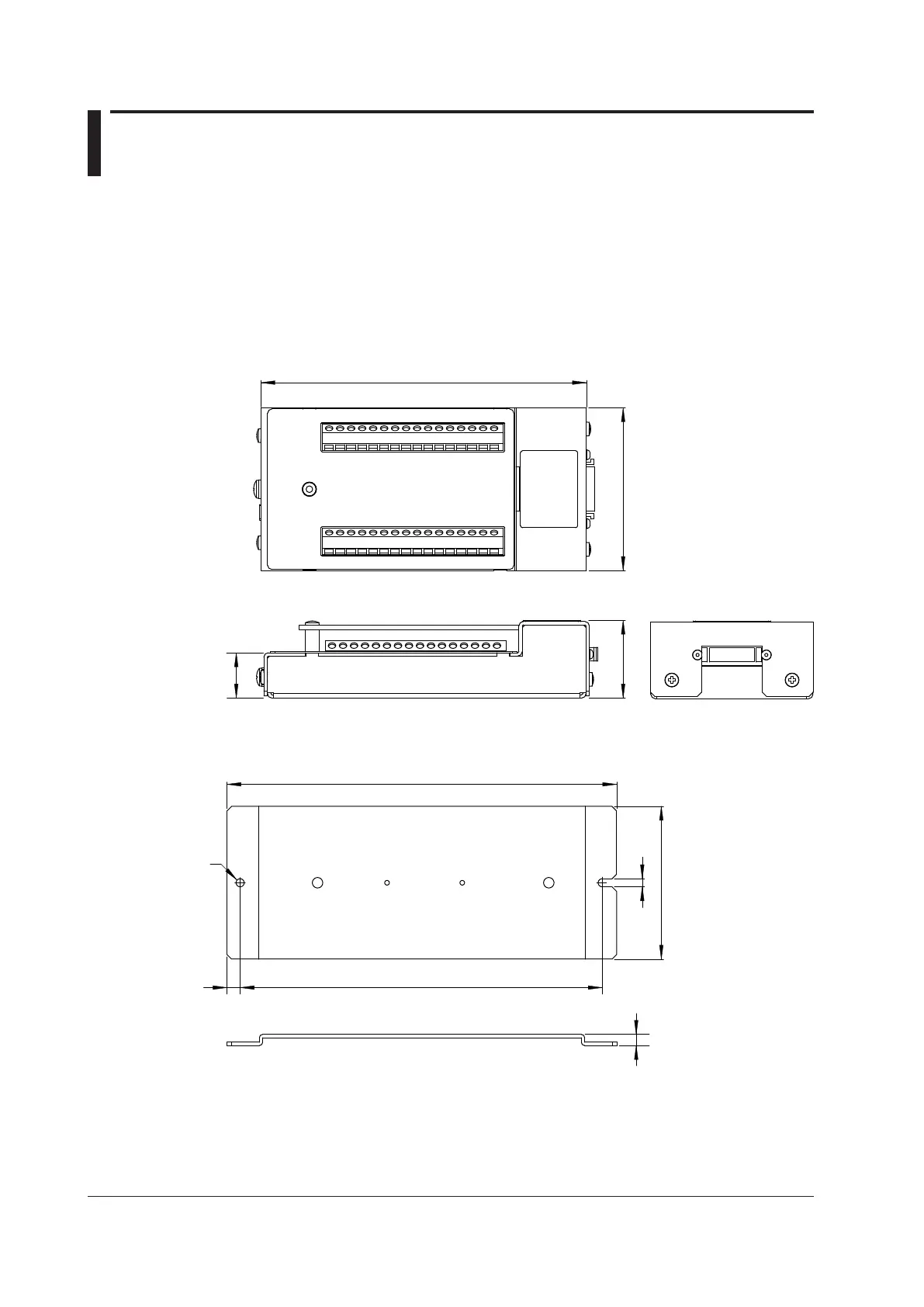

External Dimensions
Unit: mm
Unless otherwise specified, tolerances are ±3% (however, tolerances are ±0.3 mm when below 10
mm).
Attaching plate
16-CH Scanner Box
Φ3.5
6 164.5
3.5
70
177
148
7435
21
5

YOKOGAWA DL850 ScopeCorder Specifications

General

Maximum Sampling Rate	100 MS/s
Power Supply	100 to 240 VAC, 50/60 Hz
Resolution	16-bit
Operating Temperature	5 to 40°C
Bandwidth	20 MHz
Input Types	Voltage, Temperature, Strain, Acceleration, Frequency, Logic, Current
Interfaces	Ethernet, USB, GP-IB
Trigger Modes	Edge, Window, Pattern
Number of Channels	Up to 128 (with multiple input modules)
Memory Capacity	Up to 2 G points (with /M4 option)
