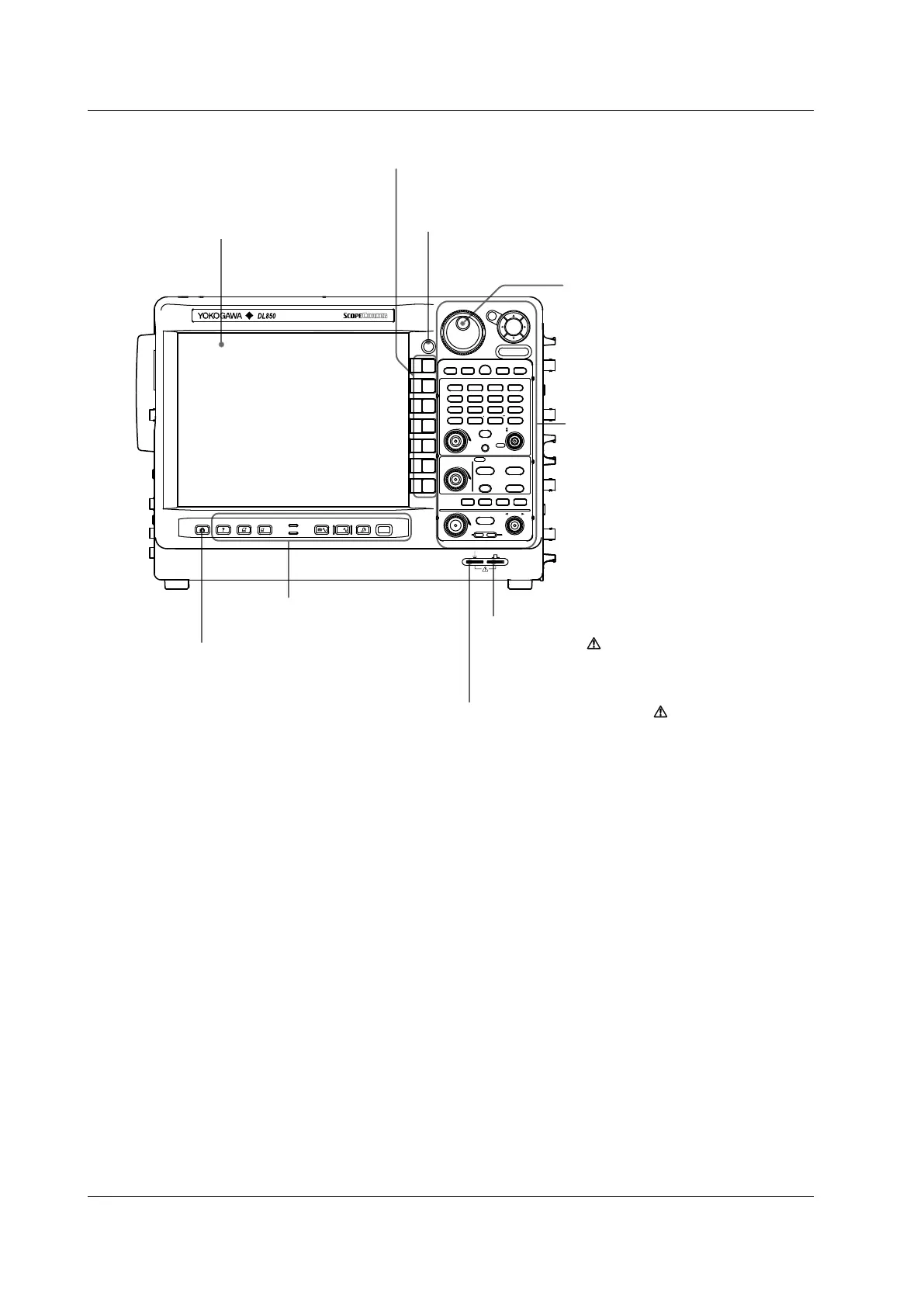

LCD
ESC key
KEY PROTECT key
Soft keys
Description of the displayed
contents → Section 1.3
Use to select items on the setup menus that
appear during configuration.
Setup and execution keys and knobs
Use to clear setup menus and pop-up menus.
Explanation → Section 1.2
Explanation → Section 1.2
Setup and execution keys
Probe compensation signal output terminal
(1 kHz/1 Vp-p)
Functional ground terminal
Connect a ground wire to this terminal when
performing probe correction.
Transmits correction signals for probes.
Probe correction procedure → Section 3.6
Locks the keys. → Section 1.2
Jog shuttle
Use to change values and move cursors.
Turn the shuttle ring to vary the rate at
which values change. The rate is based on
the shuttle ring angle.
KEY PROTECT
HELP PRINT PRINT MENU DUAL CAPTURE
HDD RECORDING
SNAP SHOT CLEAR TRACE UTILTY
ESC
RESET
SET
START / STOP
SETUP
DISPLAY
SAVE
FILE
ACQUIRE
CAL
X - Y
MENU
DUAL CAPTURE
VERTICAL
CH
CH
CH
CH
CH
CH
CH
CH
CH
CH
CH
CH
CH
CH
CH
CH
1 2 3 4
5 6 7 8
9 10 11 12
13 14 15 16
7
4
1
0
8
5
2
9
6
3
EXP
k
m
ENTER
SCALE
ALL CH
NUM LOCK
PUSH
O DIV
POSITION
HORIZONTAL
TRIGGER
TIME / DIV
MODE
POSITION / DELAY
ACTION
MANUAL TRIG
SIMPLE / ENHANCED
TRIG’D
MATH
FFT
HISTORY
MEASURE CURSOR
GO / NO-GO
MAG
ZOOM
POSITION
SEARCH
PUSH
PUSH
COMP
MENU
CLR
SHIFT
Z 1 Z 2
