Names and Functions of Parts
1
2
3
4
5
6
App
Index
1.1 Top Panel, Front Panel, Right Side Panel, and
Left Side Panel

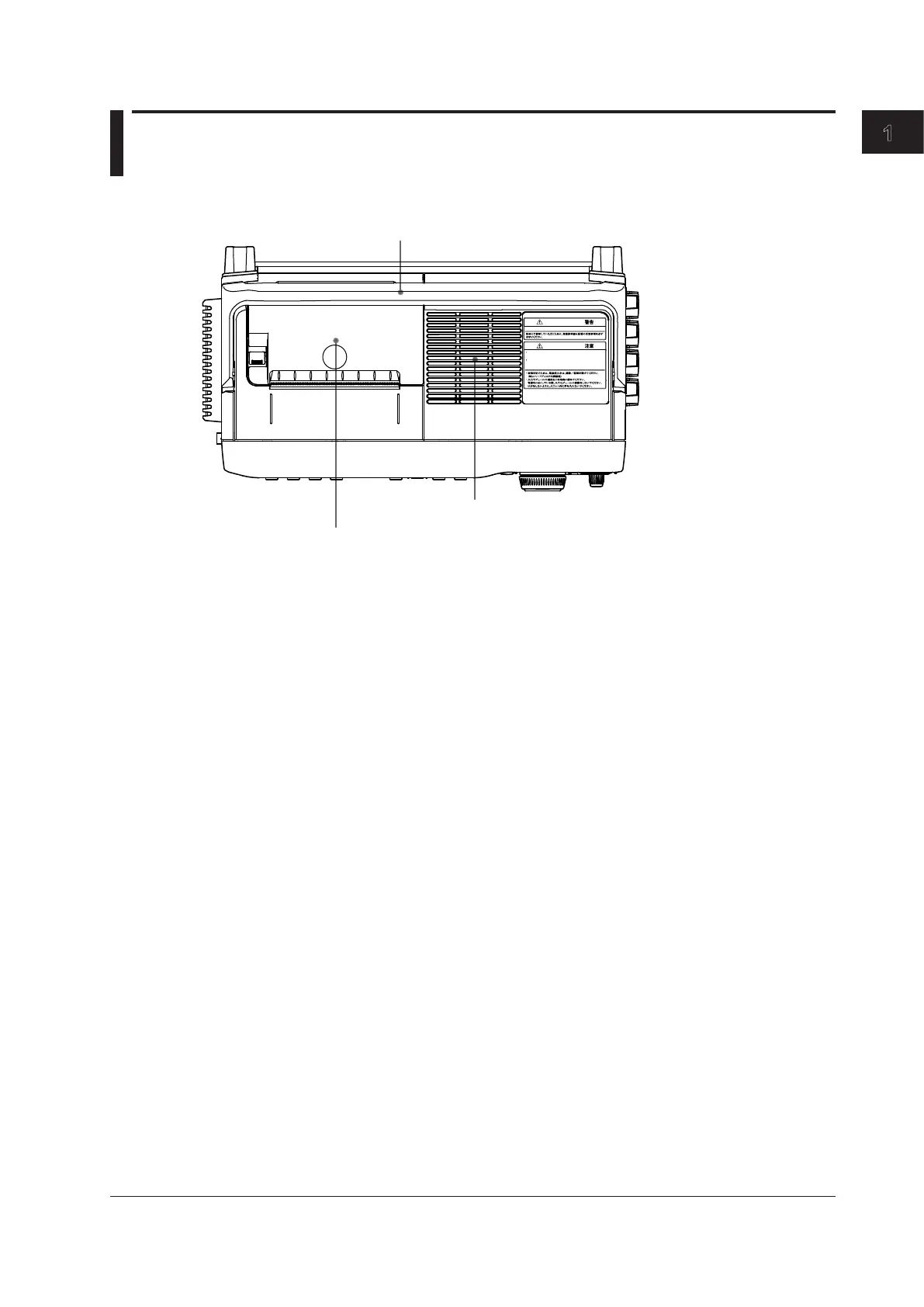

Top Panel
Built-in printer (optional)
Vent
Handle
You can print the display.
WARNING
CAUTION
Do not operate without reading the safety precautions.
Protect the instrument from vibration or shock when power is ON
(especially for internal hard disk type).
Make sure to screw input modules firmly into place.
Switch power OFF before removing input modules.
To prevent injury, do not put your hand inside the slots.
Complies with 21 CFR 1040.10 and 1040.11
Yokogawa Electric Corporation
2-9-32 Nakacho, Musashino-shi
Tokyo, 180-8750, Japan
Chapter 1 Names and Functions of Parts

YOKOGAWA DL850 ScopeCorder Specifications

General

Maximum Sampling Rate	100 MS/s
Power Supply	100 to 240 VAC, 50/60 Hz
Resolution	16-bit
Operating Temperature	5 to 40°C
Bandwidth	20 MHz
Input Types	Voltage, Temperature, Strain, Acceleration, Frequency, Logic, Current
Interfaces	Ethernet, USB, GP-IB
Trigger Modes	Edge, Window, Pattern
Number of Channels	Up to 128 (with multiple input modules)
Memory Capacity	Up to 2 G points (with /M4 option)
