YOKOGAWA DL850 ScopeCorder User Manual

4-11
IM DL850-03EN
Common Operations
1
2
3
4
5
6
App
Index
4.5 Performing Auto Setup
The auto setup feature automatically sets the V/div, Time/div, trigger level, and other settings to the
most suitable values for the input signals.

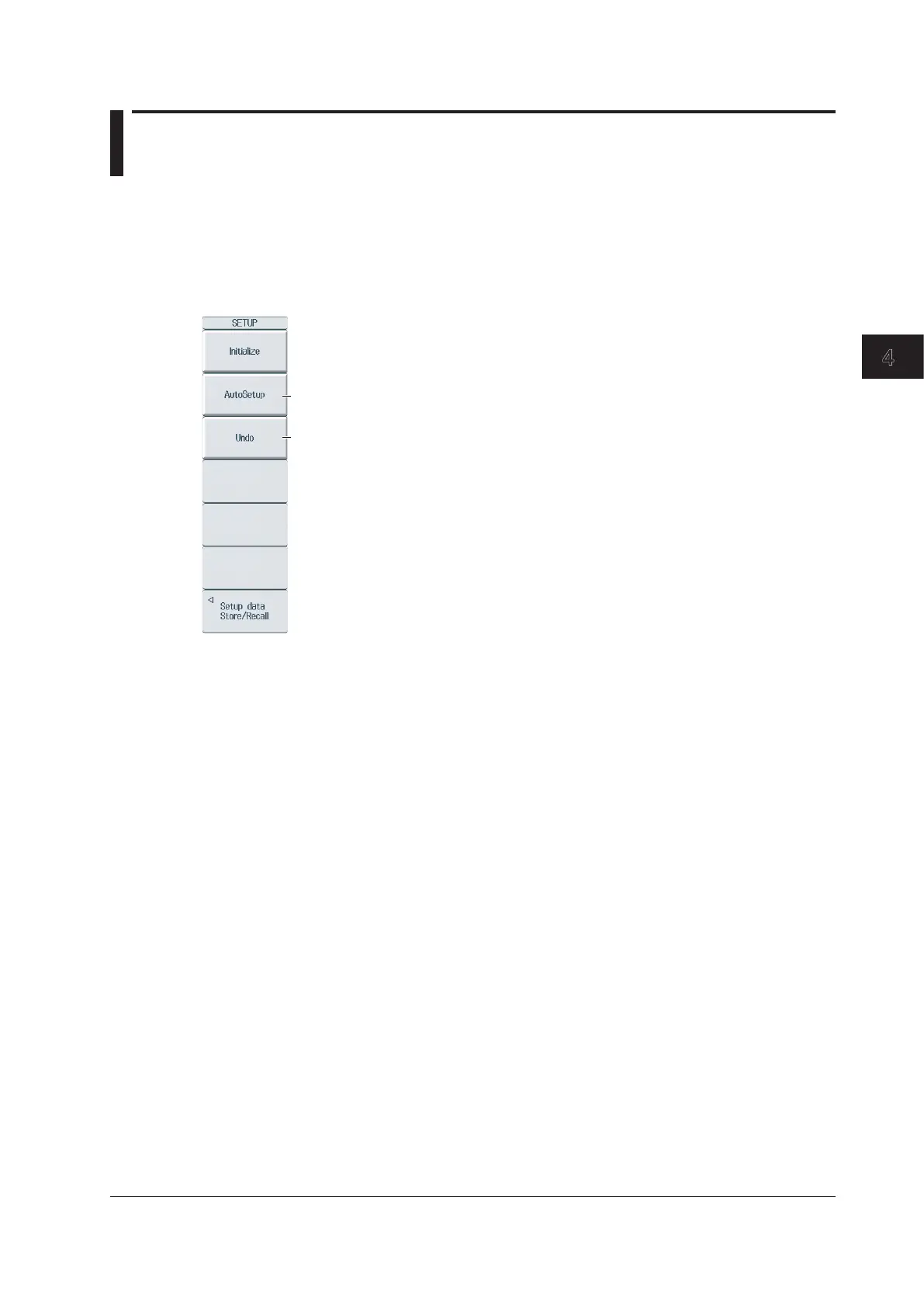

SETUP Menu
Press SETUP to display the following menu.
Executes auto setup
Undoes auto setup
Center Position after the Execution of Auto Setup
The center position after you execute auto setup will be 0 V.
Applicable Modules
Auto setup is performed on the following modules.
701250(HS10M12), 701251(HS1M16), 701255(NONISO_10M12), 701267(HV(with RMS)),
701261(UNIVERSAL), 701262(UNIVERSAL(AAF)), 701275(ACCL/VOLT), 720210(HS100M12),
720220(16CH VOLT)
Channels That Auto Setup Is Performed On
Auto setup is performed on all channels except logic channels.
Logic waveforms are displayed with the same settings as before you executed auto setup.
Waveforms Displayed before the Execution of Auto Setup
When you perform auto setup, the data in the acquisition memory is overwritten, and the waveforms
that were displayed before you executed auto setup are cleared.
Undoing Auto Setup
You can press the Undo soft key to revert to the settings that were in effect before you executed auto
setup. You cannot undo auto setup if you switch to a different setup menu or clear the SETUP menu
using the ESC key.

YOKOGAWA DL850 ScopeCorder Specifications

General

Maximum Sampling Rate	100 MS/s
Power Supply	100 to 240 VAC, 50/60 Hz
Resolution	16-bit
Operating Temperature	5 to 40°C
Bandwidth	20 MHz
Input Types	Voltage, Temperature, Strain, Acceleration, Frequency, Logic, Current
Interfaces	Ethernet, USB, GP-IB
Trigger Modes	Edge, Window, Pattern
Number of Channels	Up to 128 (with multiple input modules)
Memory Capacity	Up to 2 G points (with /M4 option)
