YOKOGAWA DL850 ScopeCorder User Manual

3.2 Installing the Instrument
WARNING
• This instrument is designed to be used indoors. Do not install or use it outdoors.
• Install the instrument so that you can immediately remove the power cord if an abnormal or
dangerous condition occurs.
CAUTION
If you block the inlet or outlet holes on the instrument, the instrument will become hot and may
break down.
Installation Conditions
Install the instrument in a place that meets the following conditions.
Flat, Even Surface
Install the instrument in the correct orientation (see page 3-4) in a safe place, with no tilting from front
to back or left to right. When you install the instrument with the rear panel facing down, you can tilt it
on its stand. The recording quality of the printer may be hindered when the instrument is placed in an
unstable or inclined place.

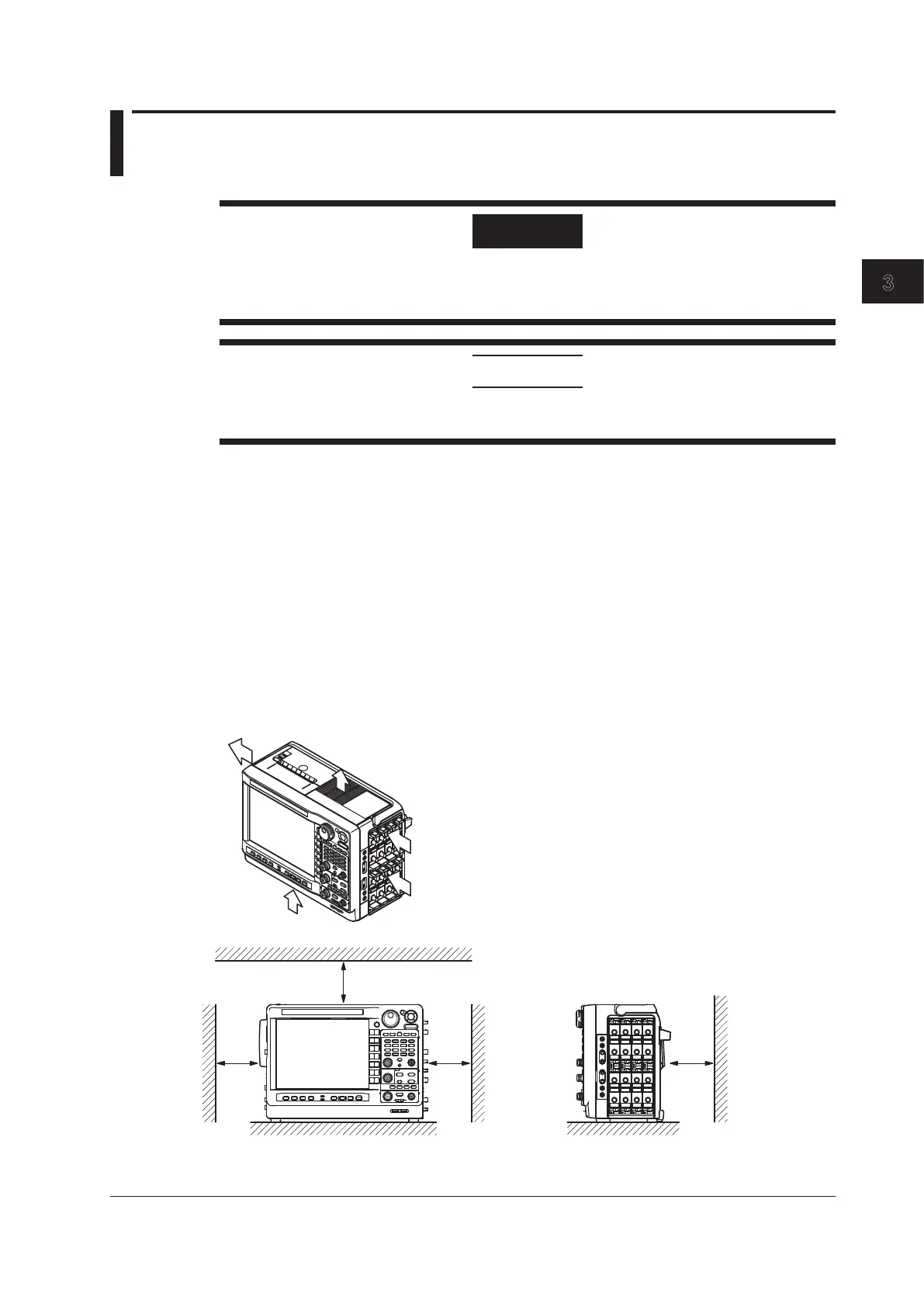

Well-Ventilated Location
There are inlet holes on the bottom side of the instrument. There are also vent holes for the cooling
fan on the left side panel and the top panel. To prevent internal overheating, allow for enough space
around the instrument (see the figure below) and do not block the inlet and exhaust holes.
10 cm or
more
10 cm or
more
5 cm or
more
10 cm or more
When connecting cables and opening and closing the cover of the built-in printer, provide extra
operating space in addition to the space in the figure shown above.
3-3
IM DL850-03EN
Making Preparations for Measurements
1
2
3
4
5
6
App
Index

YOKOGAWA DL850 ScopeCorder Specifications

General

Maximum Sampling Rate	100 MS/s
Power Supply	100 to 240 VAC, 50/60 Hz
Resolution	16-bit
Operating Temperature	5 to 40°C
Bandwidth	20 MHz
Input Types	Voltage, Temperature, Strain, Acceleration, Frequency, Logic, Current
Interfaces	Ethernet, USB, GP-IB
Trigger Modes	Edge, Window, Pattern
Number of Channels	Up to 128 (with multiple input modules)
Memory Capacity	Up to 2 G points (with /M4 option)
