YOKOGAWA DL850 ScopeCorder User Manual

Ambient Temperature and Humidity
Ambient temperature: 5 to 40°C
Ambient humidity: 20 to 85% RH (when the printer is not used; no condensation)
35 to 85% RH (when the printer is used)
Note
• To ensure high measurement accuracy, operate the instrument in the 23 ±5°C temperature range and 20
to 80% RH.
• Condensation may occur if the instrument is moved to another place where the ambient temperature
is higher, or if the temperature changes rapidly. In such cases, allow the instrument adjust to the new
environment for at least an hour before using the instrument.
Do not install the instrument in the following places.
• Outdoors.
• In direct sunlight or near heat sources.
• Where the instrument is exposed to water or other liquids.
•
Where an excessive amount of soot, steam, dust, or corrosive gas is present.
• Near strong magnetic field sources.
• Near high voltage equipment or power lines.
• Where the level of mechanical vibration is high.
• On an unstable surface.

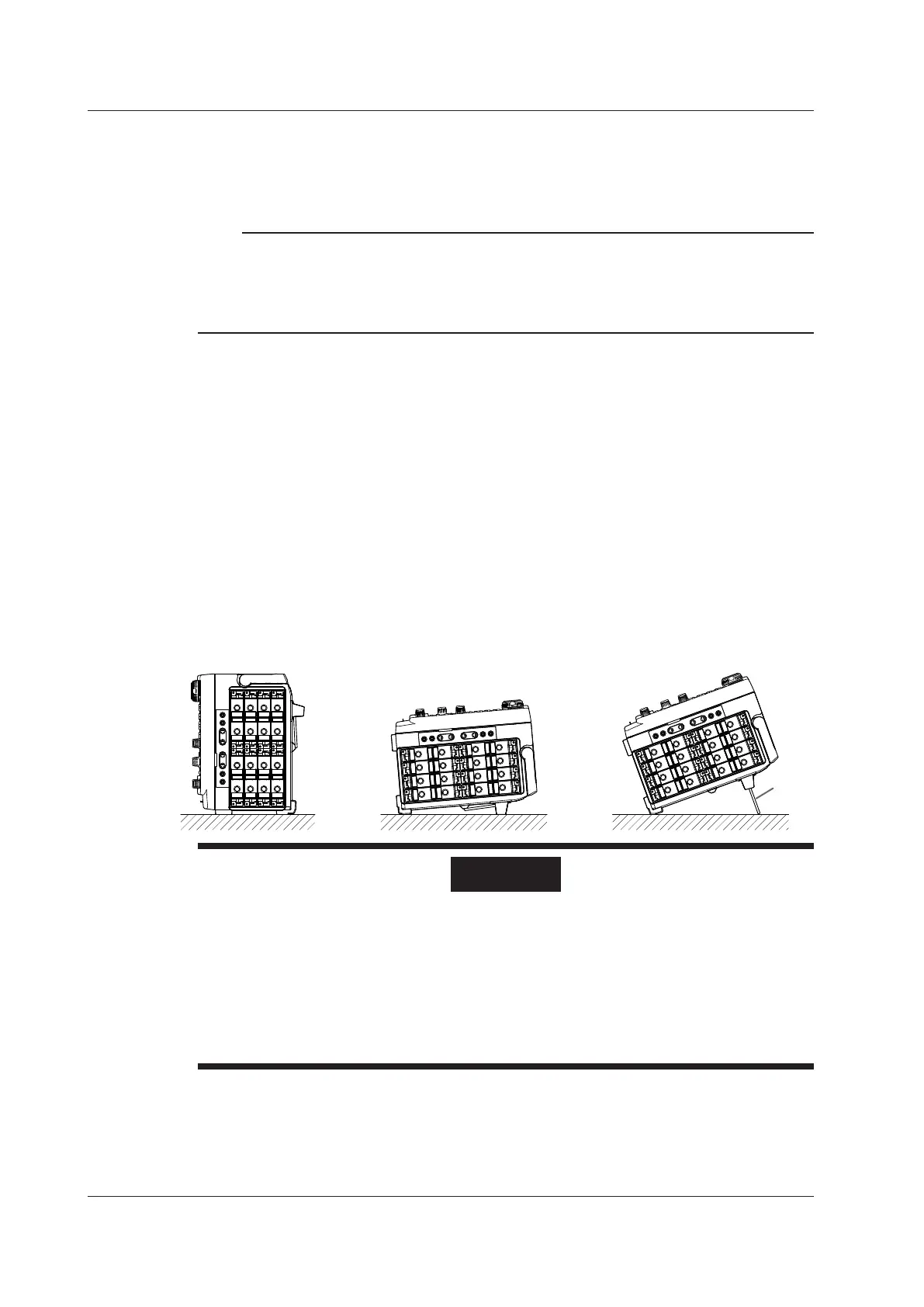

Installation Position
Install the instrument so that it is flat or with the rear panel facing down. When using the stand as
shown in the bottom right figure, push it out until it locks into place. Push the stand back in when you
store the instrument.
Stand
WARNING
• When you put away the stand, be careful not to get your hand caught between the stand
and the instrument.
• Handling the stand without firmly supporting the instrument ca
n be dangerous. Please take
the following precautions.
• Only handle the stand when the instrument is on a stable surfa
ce.
• Do not handle the stand when the instrument is tilted.
• Do not place the instrument in any position other than those shown in the above figures.
Also, do not stack the instrument.
.
Rubber Stoppers
If the instrument is installed so that it is flat as shown in the above figure, rubber stoppers can be
attached to the feet to prevent the instrument from sliding. One set of rubber stoppers (four stoppers)
are included in the package.
3.2 Installing the Instrument
3-4
IM DL850-03EN

YOKOGAWA DL850 ScopeCorder Specifications

General

Maximum Sampling Rate	100 MS/s
Power Supply	100 to 240 VAC, 50/60 Hz
Resolution	16-bit
Operating Temperature	5 to 40°C
Bandwidth	20 MHz
Input Types	Voltage, Temperature, Strain, Acceleration, Frequency, Logic, Current
Interfaces	Ethernet, USB, GP-IB
Trigger Modes	Edge, Window, Pattern
Number of Channels	Up to 128 (with multiple input modules)
Memory Capacity	Up to 2 G points (with /M4 option)
