YOKOGAWA DL850 ScopeCorder User Manual

6-20
IM DL850-03EN
H
L

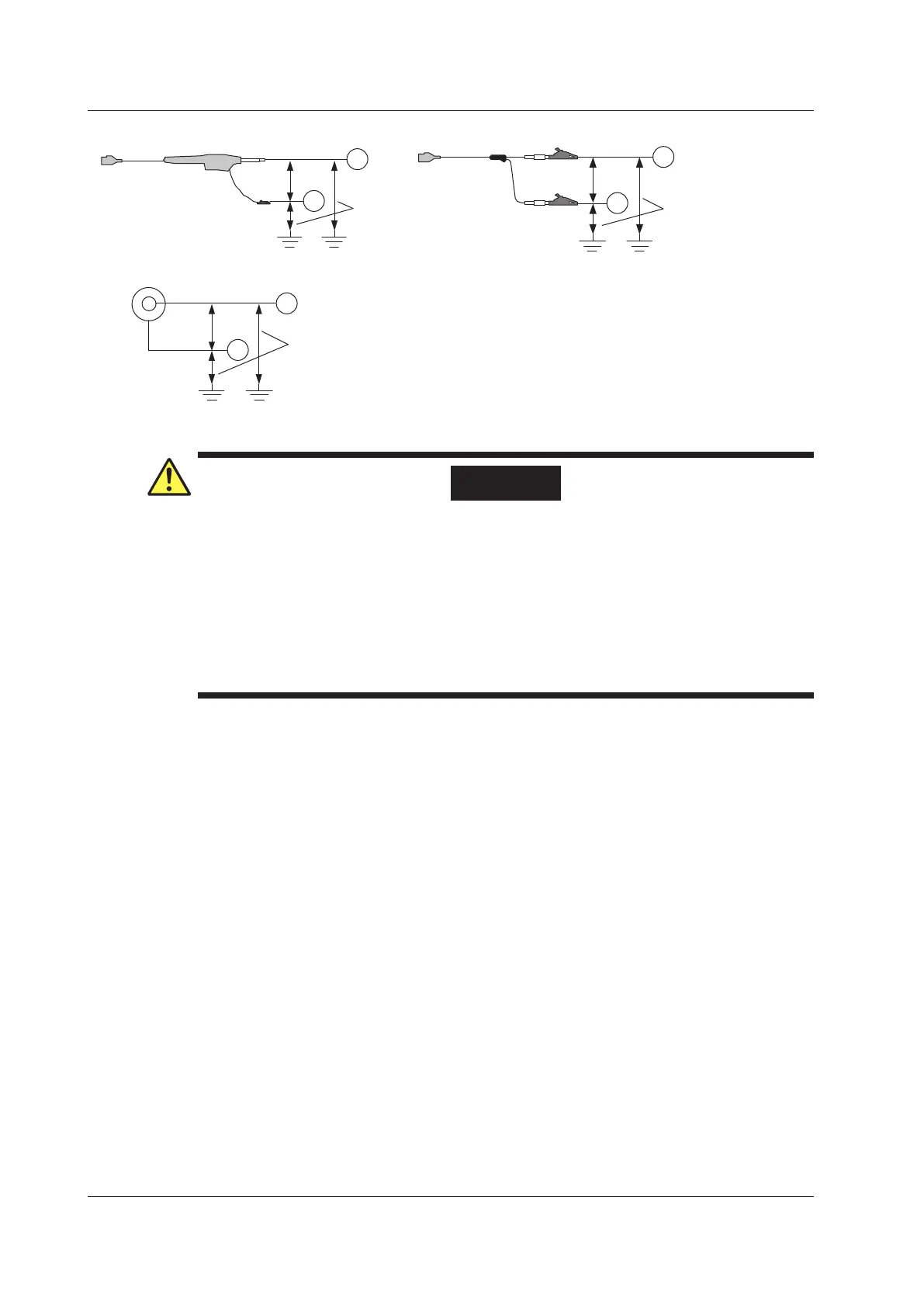

Combined with the 700929 or 701947
2
3
700929
701947
Combined with the 701901+701954
H
L
Direct input (cable that does not comply with the safety standards)
6
7
BNC
Withstand voltage: 1500 Vrms for 1 minute
Allowable transient surge voltage: ±2100 Vpeak
(between earth and input)
H
L
701901
701954
4
5
8 The typical value is a representative or standard value. It is not strictly warranted.
WARNING
• Do not apply input voltage exceeding the maximum input voltage, withstand voltage, or
allowable surge voltage.
• T
o prevent the possibility of electric shock, be sure to furnish protective earth grounding of
the DL850/DL850V.
• T
o prevent the possibility of electric shock, be sure to fasten the module screws. Otherwise,
the electrical and mechanical protection functions will not be activated.
• A
void continuous connection under an environment in which the surge voltage may occur.
• To prevent the possibility of electric shock, be sure to connect the GND lead of the
differential probe (700924/700925) to the DL850/DL850V.
6.13 Module Specifications

YOKOGAWA DL850 ScopeCorder Specifications

General

Maximum Sampling Rate	100 MS/s
Power Supply	100 to 240 VAC, 50/60 Hz
Resolution	16-bit
Operating Temperature	5 to 40°C
Bandwidth	20 MHz
Input Types	Voltage, Temperature, Strain, Acceleration, Frequency, Logic, Current
Interfaces	Ethernet, USB, GP-IB
Trigger Modes	Edge, Window, Pattern
Number of Channels	Up to 128 (with multiple input modules)
Memory Capacity	Up to 2 G points (with /M4 option)
