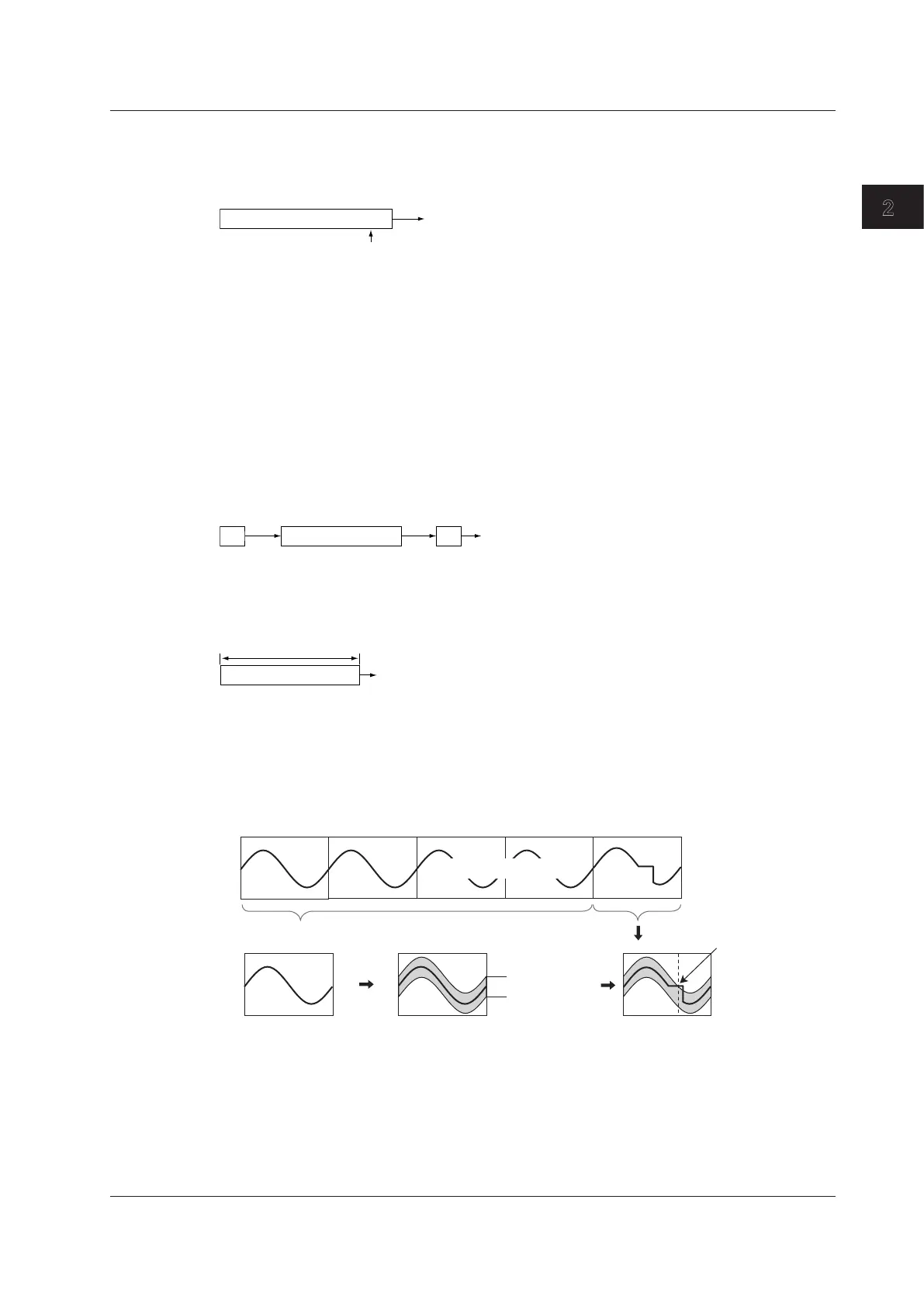

Edge On A Trigger (Enhanced)
While state condition A is met, the DL850/DL850V triggers on the OR of multiple trigger source
edges.
Edge detection
Trigger
Condition A is being met
OR Trigger
The DL850/DL850V triggers on the OR of multiple trigger source edges.
AND Trigger
The DL850/DL850V triggers on the AND of multiple trigger source conditions. The DL850/DL850V
triggers when all the specified conditions are met at a single point.
Period Trigger
The DL850/DL850V triggers on a specified period of occurrence of state condition B. The DL850/
DL850V triggers when state condition B occurs again.
Met Met
Trigger
B
B
Reference time T
Pulse Width Trigger
The DL850/DL850V triggers according to the relationship between the state condition B
achievement time and the specified reference times (Time or T1 and T2).
Achievement time
Trigger
B
Wave Window Trigger
The DL850/DL850V creates real-time templates (Wave Window) using a number of cycles directly
preceding the current waveforms. The DL850/DL850V compares the current waveforms to the real-
time templates and triggers if one of the current waveforms falls outside of its real-time template.
Reference cycles
(example: the waveforms for the four previous cycles)
Current
waveform
Real-time template
Average waveform
+ tolerance width
Trigger
Average of 1, 2, or
4 cycles
The DL850/DL850V compares the
current waveform to the real-time
template and triggers if the current
waveform falls outside of the
real-time template.
Measured waveform
Tolerance width
2.2 Triggering

YOKOGAWA DL850 ScopeCorder Specifications

General

Maximum Sampling Rate	100 MS/s
Power Supply	100 to 240 VAC, 50/60 Hz
Resolution	16-bit
Operating Temperature	5 to 40°C
Bandwidth	20 MHz
Input Types	Voltage, Temperature, Strain, Acceleration, Frequency, Logic, Current
Interfaces	Ethernet, USB, GP-IB
Trigger Modes	Edge, Window, Pattern
Number of Channels	Up to 128 (with multiple input modules)
Memory Capacity	Up to 2 G points (with /M4 option)
