YOKOGAWA DL850 ScopeCorder User Manual

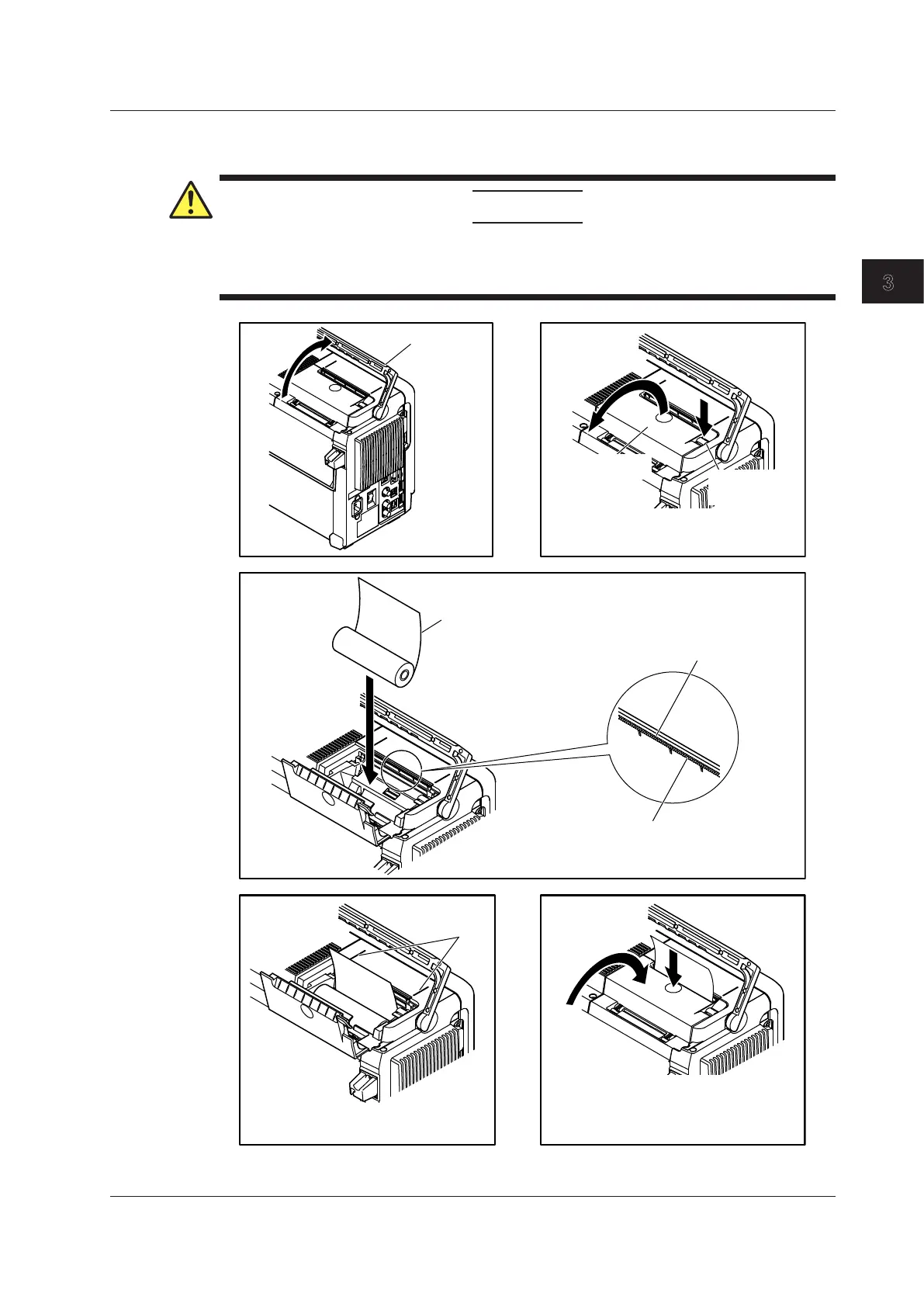

Attaching the Roll Paper
CAUTION
• Do not touch the print head. If you do, you may burn yourself.
• Do not touch the roll paper cutter section at the front end of the printer cover. Doing so may
cause injury.
Roll paper cutter section
Print head
Set the roll paper with the same
orientation as shown in the figure
Raise the handle.
Printer cover
OPEN COVER
button
Press the OPEN COVER button to open
the printer cover.
Guide
Align the ends of the roll paper with
the guides, and set the roll in place.
Close the cover, and press LOCK
on the center of the cover
until you hear a click.
4.
5.
1. 2.
3.
3.18 Loading Roll Paper into the Built-In Printer (Optional)
3-43
IM DL850-03EN
Making Preparations for Measurements
1
2
3
4
5
6
App
Index

YOKOGAWA DL850 ScopeCorder Specifications

General

Maximum Sampling Rate	100 MS/s
Power Supply	100 to 240 VAC, 50/60 Hz
Resolution	16-bit
Operating Temperature	5 to 40°C
Bandwidth	20 MHz
Input Types	Voltage, Temperature, Strain, Acceleration, Frequency, Logic, Current
Interfaces	Ethernet, USB, GP-IB
Trigger Modes	Edge, Window, Pattern
Number of Channels	Up to 128 (with multiple input modules)
Memory Capacity	Up to 2 G points (with /M4 option)
