RESET Key Operation
If you press RESET when you are using the jog shuttle to set a value or select an item, the setting
is reset to its default value (depending on the operating state of the DL850/DL850V, the setting may
not be reset).
SET Key Operations
The operation varies as indicated below depending on what you are setting.
• For a setup menu that has two values that you use the jog shuttle to adjust
Press SET to switch the value that the jog shuttle adjusts.
• For a menu that has the jog shuttle + SET mark (
) displayed on it.
Press SET to confirm the selected item.
Arrow Key Operations
The operation varies depending on what you are setting.
• When setting a value
Up and down arrow keys: Increases and decreases the value
Left and right arrow keys: Changes which digit to set
• When selecting the item to set
You can use the up and down arrow keys.
How to Enter Values in Setup Dialog Boxes
1.
Use the keys to display the appropriate setup dialog box.
2.
Use the jog shuttle or the arrow keys to move the cursor to the setting that you want to set.
3.
Press SET. The operation varies as indicated below depending on what you are setting.
• A selection menu appears.
• A check box is selected or cleared.
• An item is selected.
• A table of settings is selected.

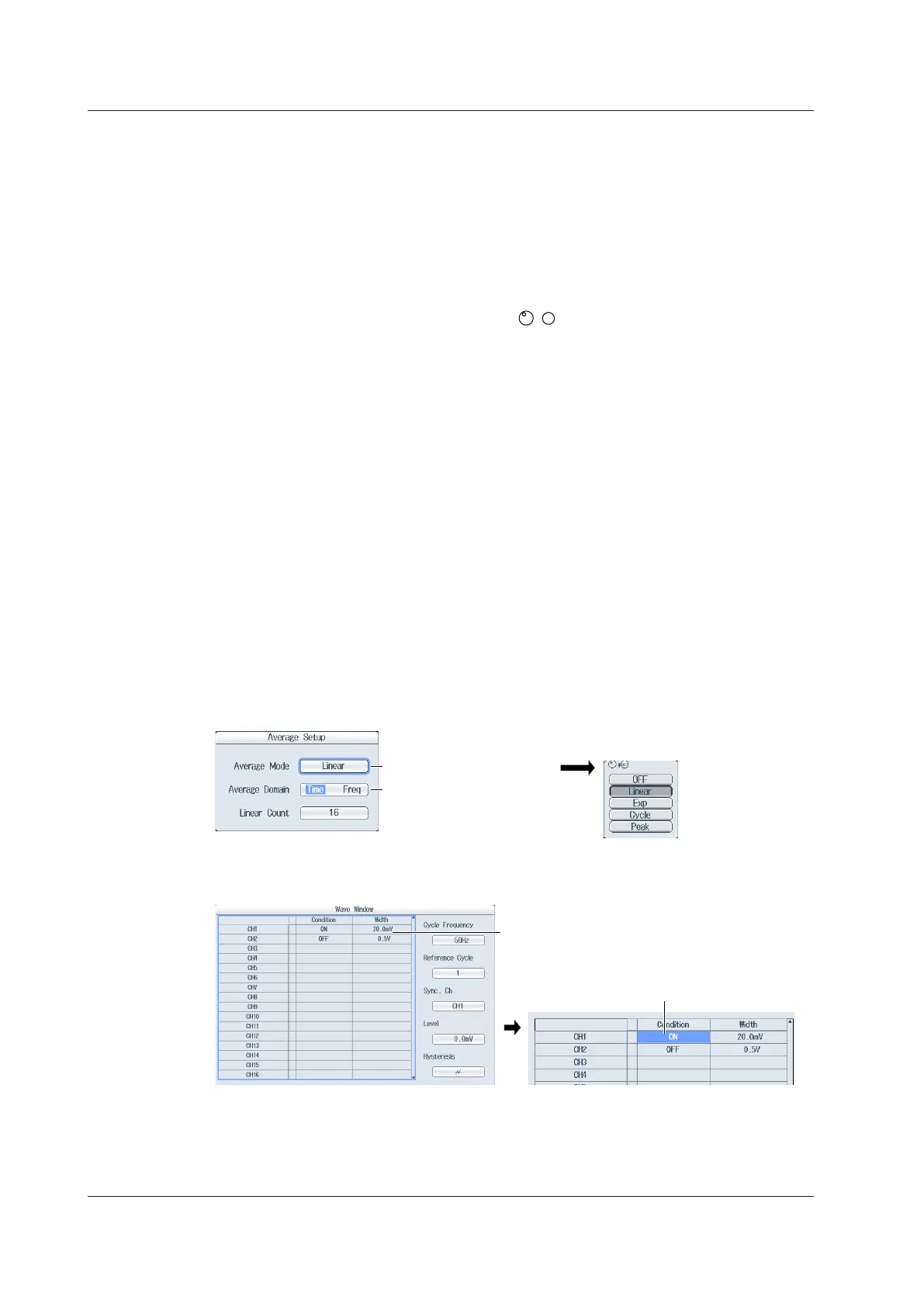

Displaying a Selection Menu and Selecting an Item
Select Time or Freq.
Displays the selection menu
After selecting an item with the jog
shuttle, press SET to confirm it.
Setting Items in a Table
After moving the cursor to the table, press SET
to select the setting the you want to change.
Press SET to select
a table entry.
How to Clear Setup Dialog Boxes
Press ESC to clear the setup dialog box from the screen.
4.1 Key and Jog Shuttle Operations
