6-24
IM 701310-01E
When Triggering on CH1 to CH4 or EXT

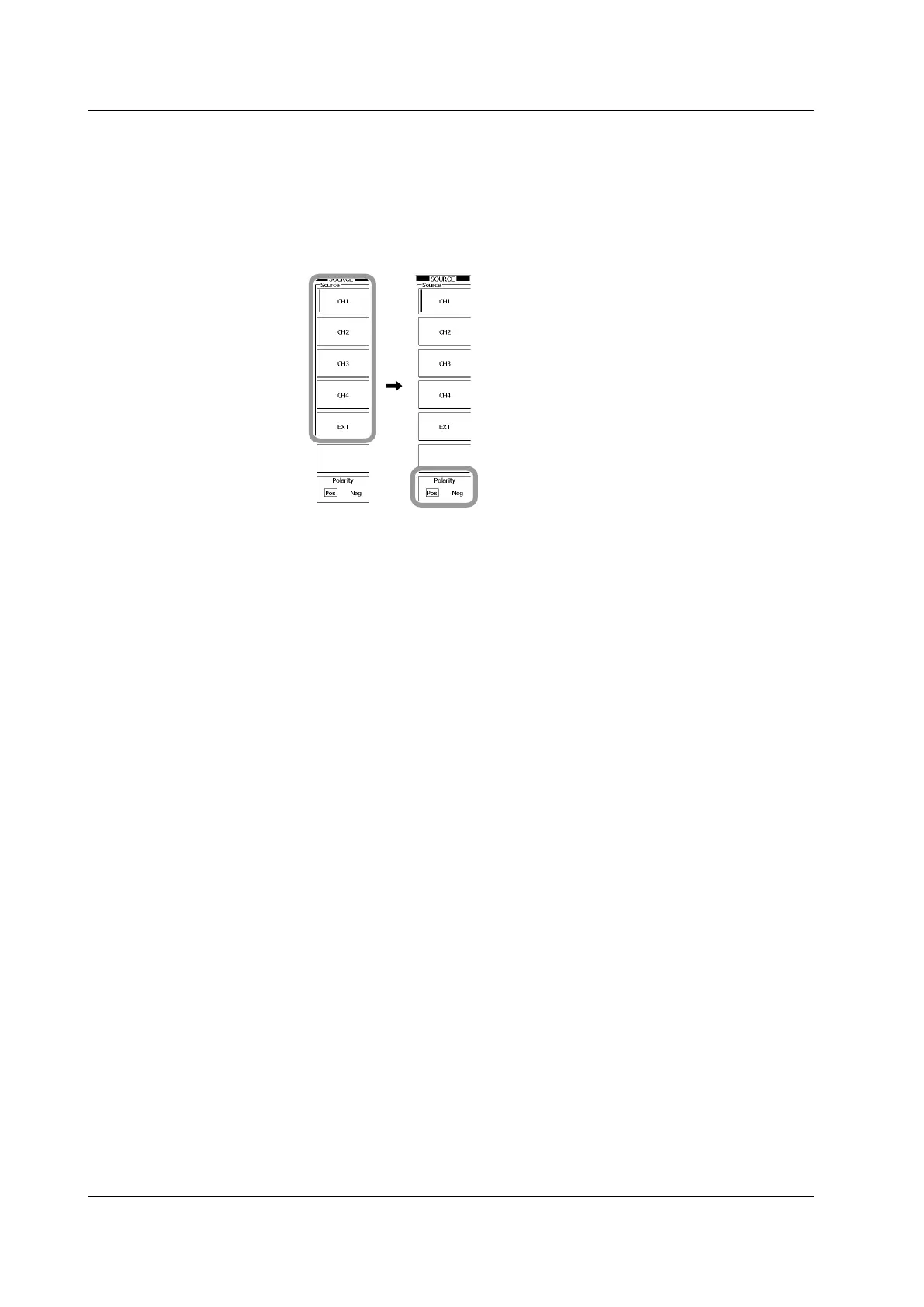

Selecting the Trigger Source
6.
Press SOURCE.
7.
Press the appropriate trigger source soft key.
8.
Press the Polarity soft key to select Pos or Neg.
When the window comparator is ON, select IN or OUT.
Setting the Trigger Level
9.
Set the trigger level according to the procedure given in section 6.6.
Setting the Trigger Coupling, HF Rejection, Trigger Hysteresis, and
Window Comparator
10.
Set the items according to the procedure given in section 6.5.
Setting the Holdoff
11.
Set the holdoff time according to the procedure given in section 6.4.
6.10 Activating a Trigger on a Pulse Width
To Next Page
