6-36

IM 701310-01E

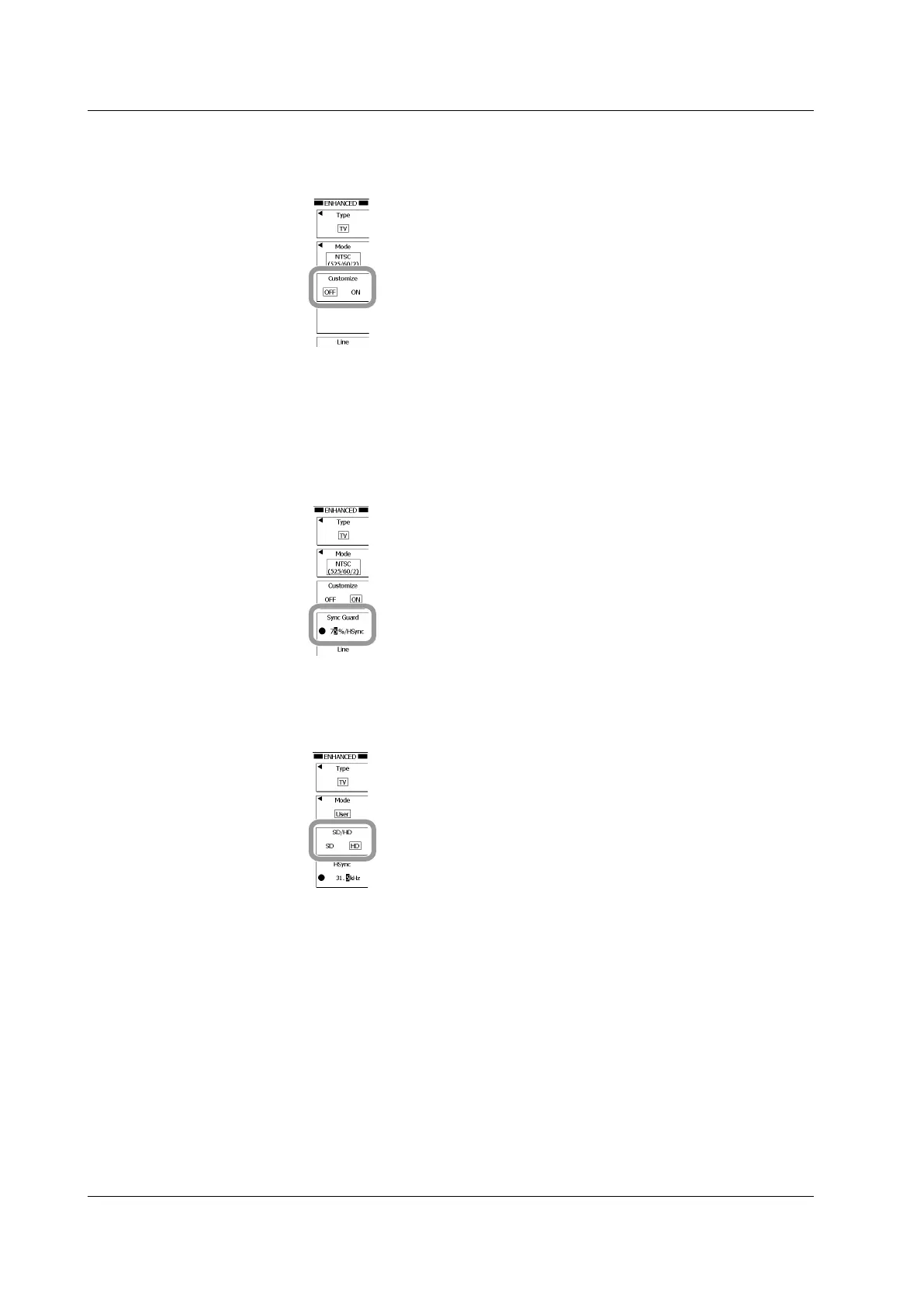

Setting Customize (When other than User is selected in step 5)

Press the Customize soft key to select ON or OFF.

If OFF is selected, proceed to step 12.

Setting the Sync Guard Frequency (When other than User is selected in

step 5)

Press the Sync Guard soft key.

Use the rotary knob to set the sync guard frequency (as a percentage of the

horizontal sync frequency).

Proceed to step 12.

Setting the Resolution (When User is selected in step 5)

Press the SD/HD soft key, to select SD (standard definition) or HD (high

definition).

6.13 Setting the TV Trigger
