Acquisition and Display

7-33

IM 701310-01E

App

Index

Setting the GO/NO-GO Determination Mode

10.

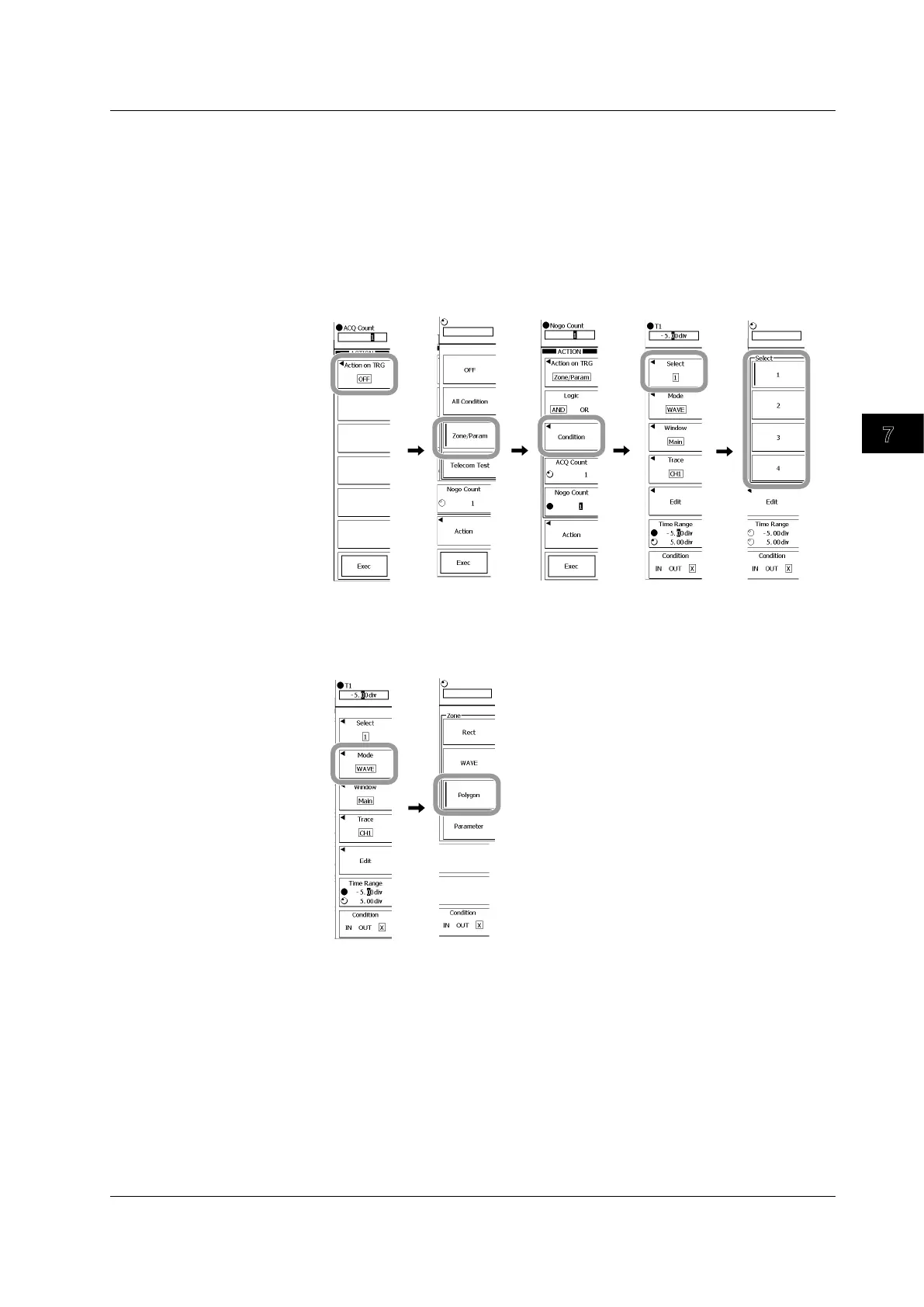

Press SHIFT+TRIG MODE/HOLD OFF (ACQ COUNT/ACTION).

11.

Press these soft keys: Action on TRG > Zone/Param > Condition.

Selecting a GO/NO-GO Condition Number

12.

Press the Select soft key.

13.

Press the soft key that corresponds to the appropriate GO/NO-GO condition

number.

Setting the Determination Mode

14.

Press these soft keys: Mode > Polygon.

This sets the determination mode to Polygon.

7.12 Setting Polygonal Zone GO/No-Go Determination Conditions
