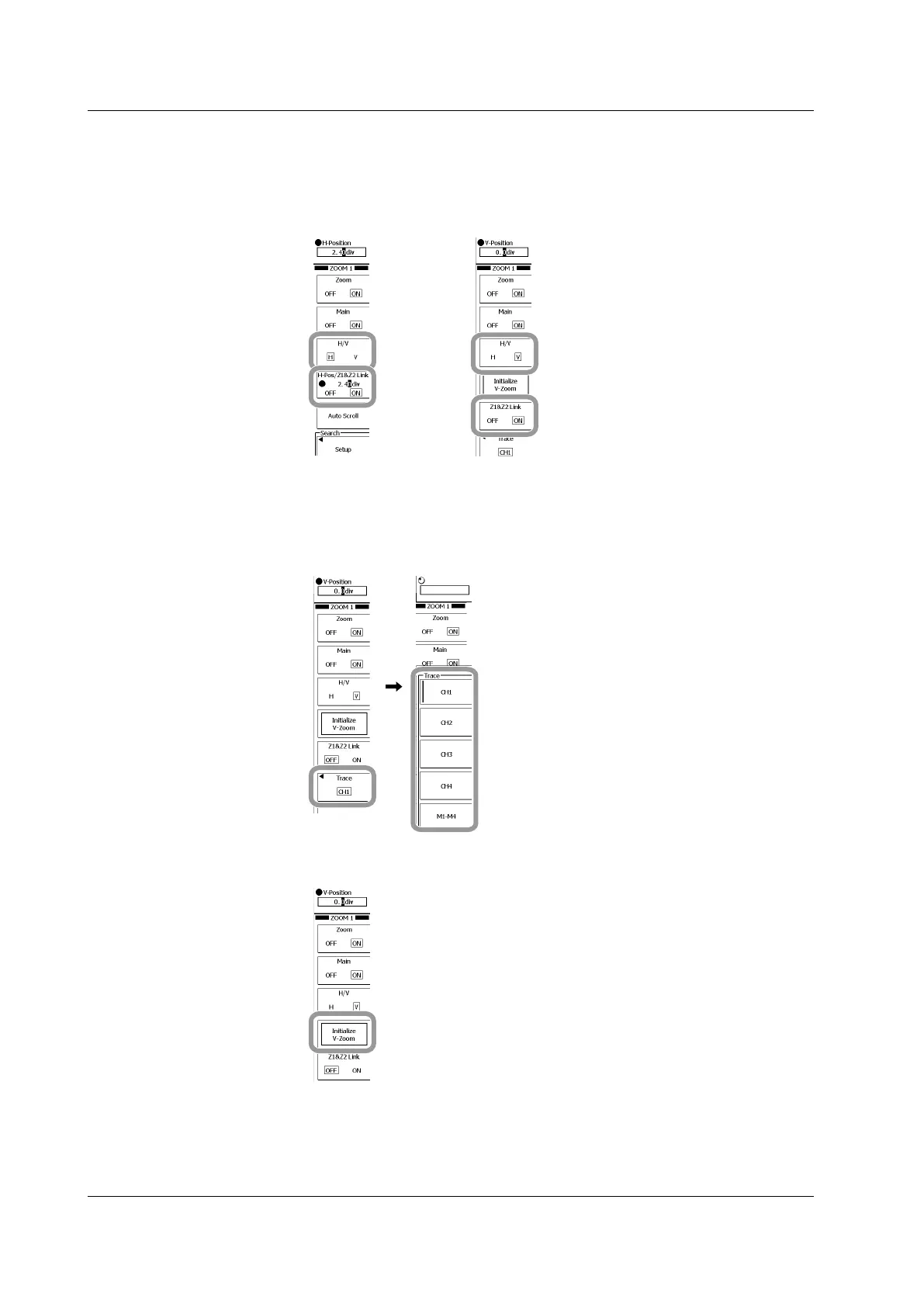

Linking Zoom Boxes Z1 and Z2

13.

Press the H/V soft key and set it to H or V.

14.

When H is selected press the H-Pos/Z1&Z2 Link soft key, and when V is selected

press the Z1&Z2 Link soft key, to select ON or OFF.

Horizontal direction Vertical direction

Initializing the Vertical Zoom

15.

Press the Trace soft key.

16.

Press the soft key corresponding to the desired channel.

To select M1 to M4, first switch by pressing the

M1-M4

soft key.

17.

Press the Initialize V-Zoom soft key.

8.1 Zooming the Waveform
