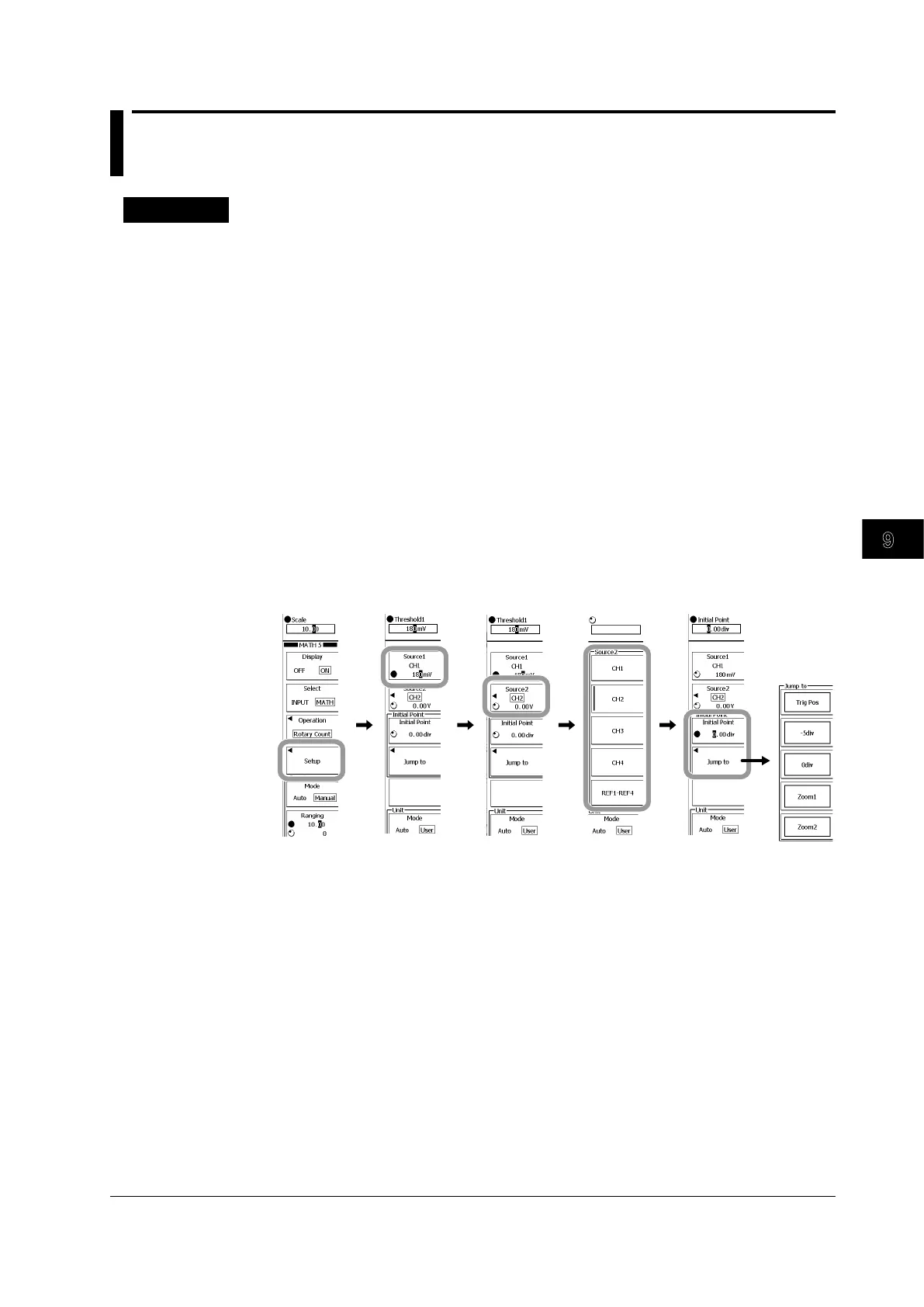

9.9 Counting Rotations
Procedure
1.
Carry out steps 1 to 5 in section 9.1 to set the operator to Rotary Count.
Setting the Count Conditions
2.
Press the Setup soft key.
3.
Press the Source1 soft key. A menu used to select the waveform to be computed
appears. Press the soft key corresponding to the source waveform.
To select REF1 to REF4, first switch to REF1-REF4 by pressing the corresponding soft key.
When CH1 to CH4 on the front panel are set, the waveform to be computed is fixed to the
channel that is set. A menu used to select the waveform to be computed don’t appears.
4.
Use the rotary knob to set the determination level of phase A.
5.
Press the Source2 soft key twice to display the Source2 menu.
6.
Press any of the CH1 to CH4 and REF1-REF4 soft keys to select Source2.
To select REF1 to REF4, first switch to REF1-REF4 by pressing the corresponding soft key.
7.
Use the rotary knob to set the determination level of phase B.
8.
Press the Initial Point soft key.
9.
Use the rotary knob to set the count start point. Or, press the Jump to soft key
to show a preset menu, and set the count start point.
Setting the Unit and Display Range
Carry out steps 6 to 13 in section 9.1.
