YOKOGAWA DL9000 Series User Manual

10-2
IM 701310-01E

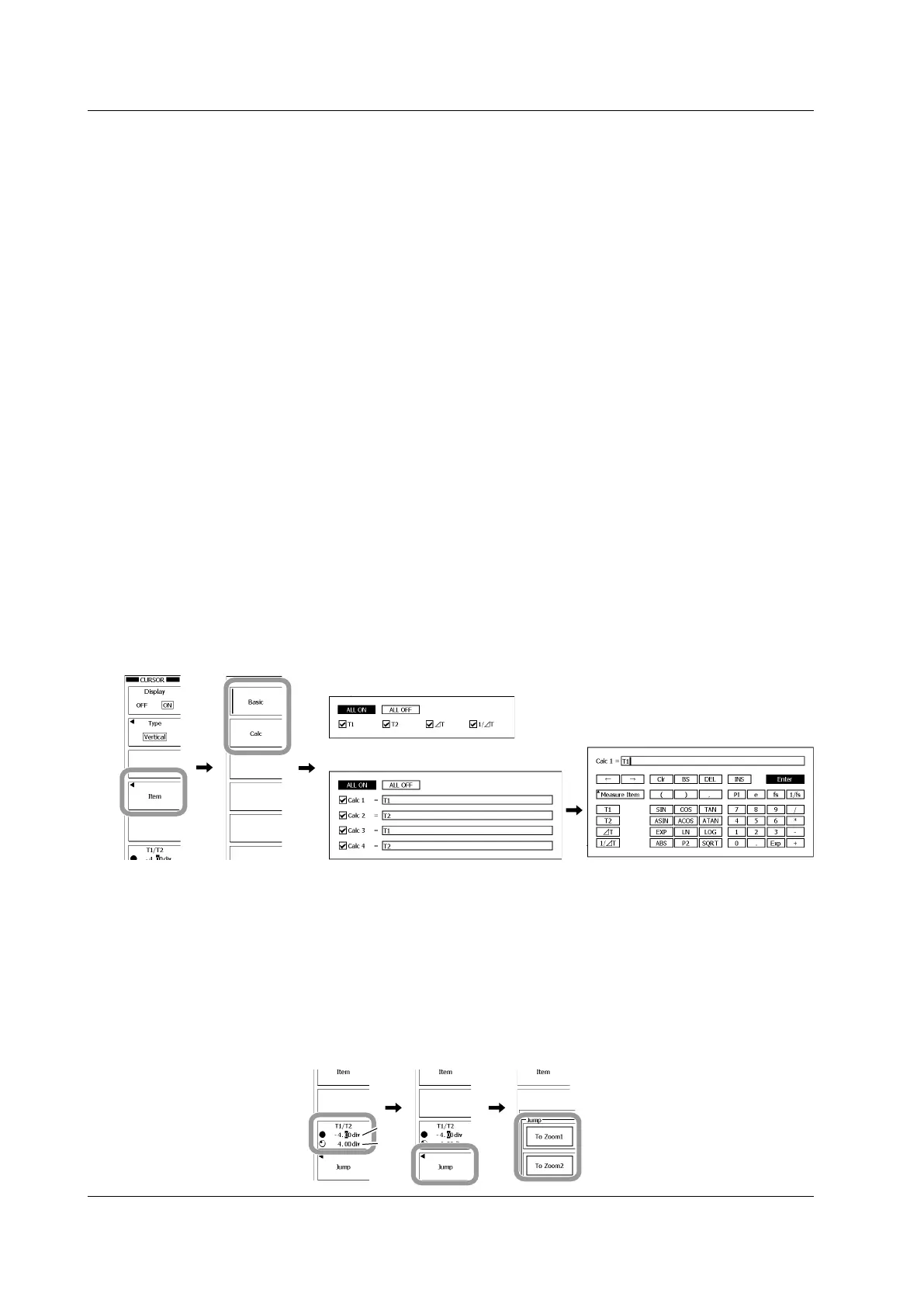

Vertical Cursors
Selecting Measurement Items
4.
Press the Item soft key.
• Selecting Basic Measurement Items
5.
Press the Basic soft key.
6.
Use the rotary knob and SET to select the items you want to measure.
• If you select ALL ON and press
SET
, you can turn ON all items at once.
• If you select ALL OFF and press
SET
, you can turn OFF all items at once.
• Configuring Calculations When Using Cursor Measurement Values in
Calculations
7.
Press the Calc soft key.
8.
Use the rotary knob and SET to select the calculation number from Calc 1 to
Calc 4.
9.
Use the rotary knob and SET to select the expression box to the right of the
selected number.
The dialog box for entering the expression appears.
10.
Use the rotary knob and SET to select functions and operators.
• You can also use the rotary knob and SET to select Measure Item and then select
measurement items from the displayed menu.
• You can enter numbers using the numeric keys.
11.
When you are done entering the expression, press the Enter soft key. To cancel
the entered expression, press ESC.
The dialog box closes, and the screen for selecting the calculation number reappears.
12.
Press ESC to return to the previous screen.
Basic
Calc
Moving a Cursor
13.
Press the T1/T2 soft key.
14.
Use the rotary knob to move the T1 or T2 cursor.
Press the soft key to select the cursor that you want to move using the rotary knob.
Selecting the Jump Destination
15.
Press the Jump soft key.
16.
Press the To Zoom1 or To Zoom2 soft key to select the jump destination zoom
window.
T1
T2
10.1 Measuring Using Cursors
