YOKOGAWA DL9000 Series User Manual

10-9
IM 701310-01E
Analysis and Search
3
2
1
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
App
Index
Marker Cursors
Selecting the Marker Form
4.
Press the Marker Form soft key to select Mark or Line.
Selecting Measurement Items
5.
Press the Item soft key.
• Selecting Basic Measurement Items
6.
You can set measurement items for each marker. Press the appropriate soft key
from MC1 to MC4 to select a marker.
7.
Use the the rotary knob and SET to select the items you want to measure.
• If you select ALL ON and press
SET
, you can turn ON all items at once.
• If you select ALL OFF and press
SET
, you can turn OFF all items at once.
• Configuring Calculations When Using Cursor Measurement Values in Calculations
8.
Press the Calc soft key.
9.
Use the the rotary knob and SET to select the calculation number from Calc 1 to
Calc 4.
10.
Use the rotary knob and SET to select the expression box to the right of the
selected number.
The dialog box for entering the expression appears.
11.
Use the the rotary knob and SET to select functions and operators.
• You can also use the the rotary knob and SET to select Measure Item and then select
measurement items from the displayed menu.
• Y
ou can enter numbers using the numeric keys.
12.
When you are done entering the expression, press the Enter soft key. To cancel
the entered expression, press ESC.
The dialog box closes, and the screen for selecting the calculation number reappears.
13.
Press ESC to return to the previous screen.

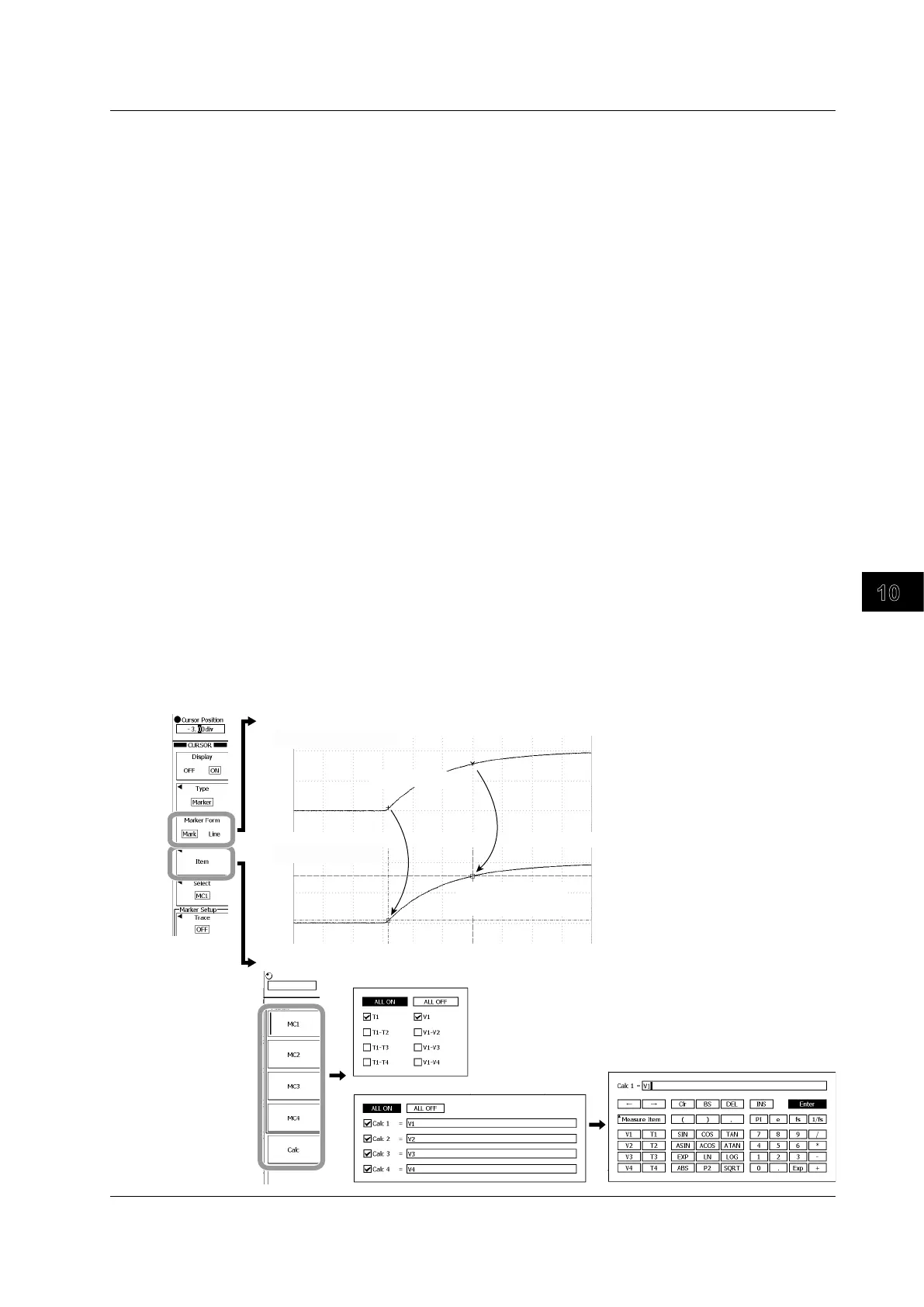

Select the marker type
Select measurement items
When set to Mark
When set to Line
Displays markers
Displays line marks
in place of marks
Basic
Calc
10.1 Measuring Using Cursors
