Selecting a Marker

14.

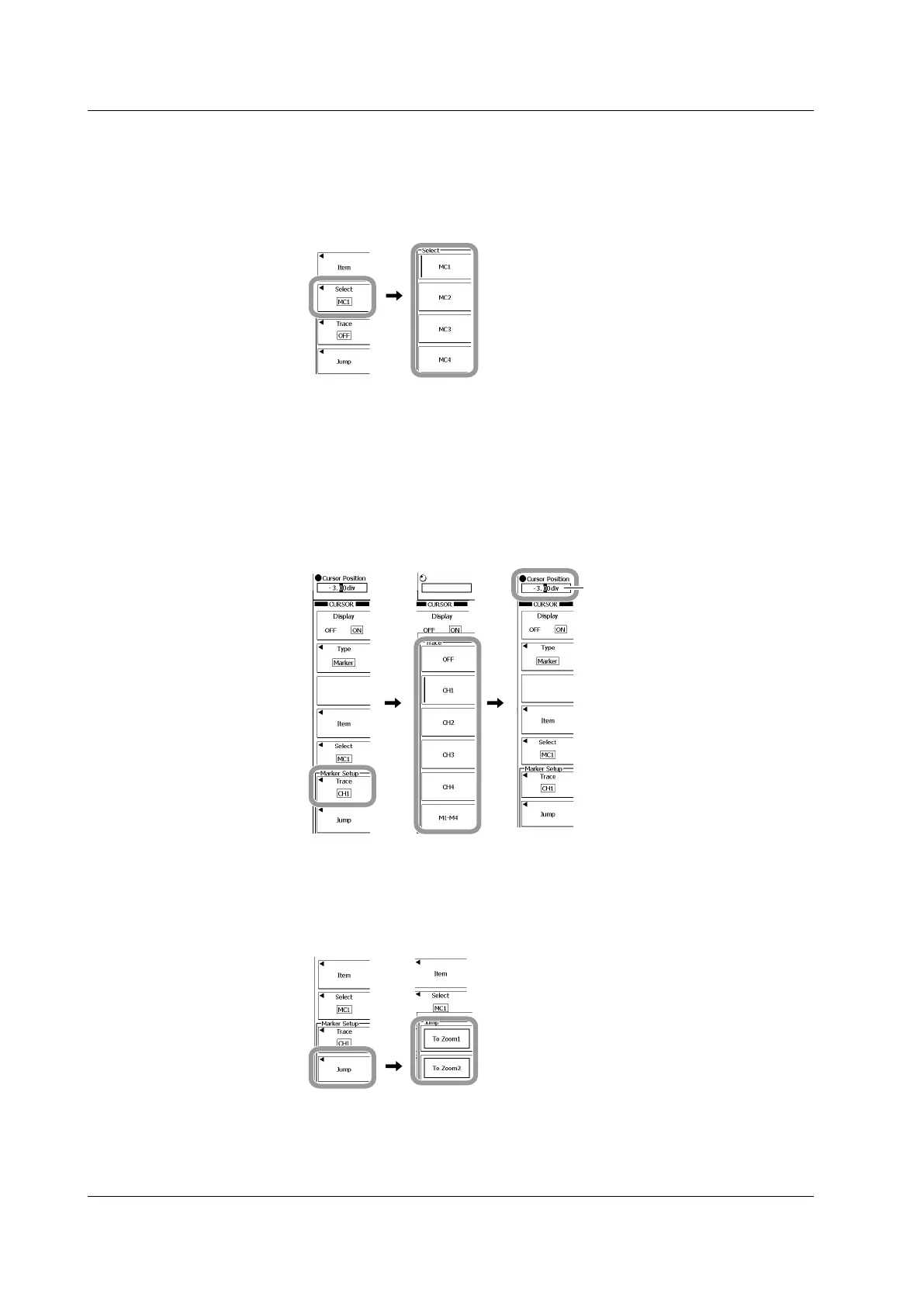

Press the Select soft key.

15.

Press the appropriate soft key from MC1 to MC4 to select a marker.

Select the source waveform, move the cursor, and select the jump destination for the marker

selected here.

• Selecting the Source Waveform

16.

Press the Trace soft key.

17.

Press the appropriate waveform soft key.

To select a channel from M1 to M4, press the

M1-M4

soft key first.

• Moving the Marker

18.

Use the rotary knob to move the marker.

Marker position

• Selecting the Jump Destination

19.

Press the Jump soft key.

20.

Press the To Zoom1 or To Zoom2 soft key to select the jump destination zoom

window.
