Serial Cursors

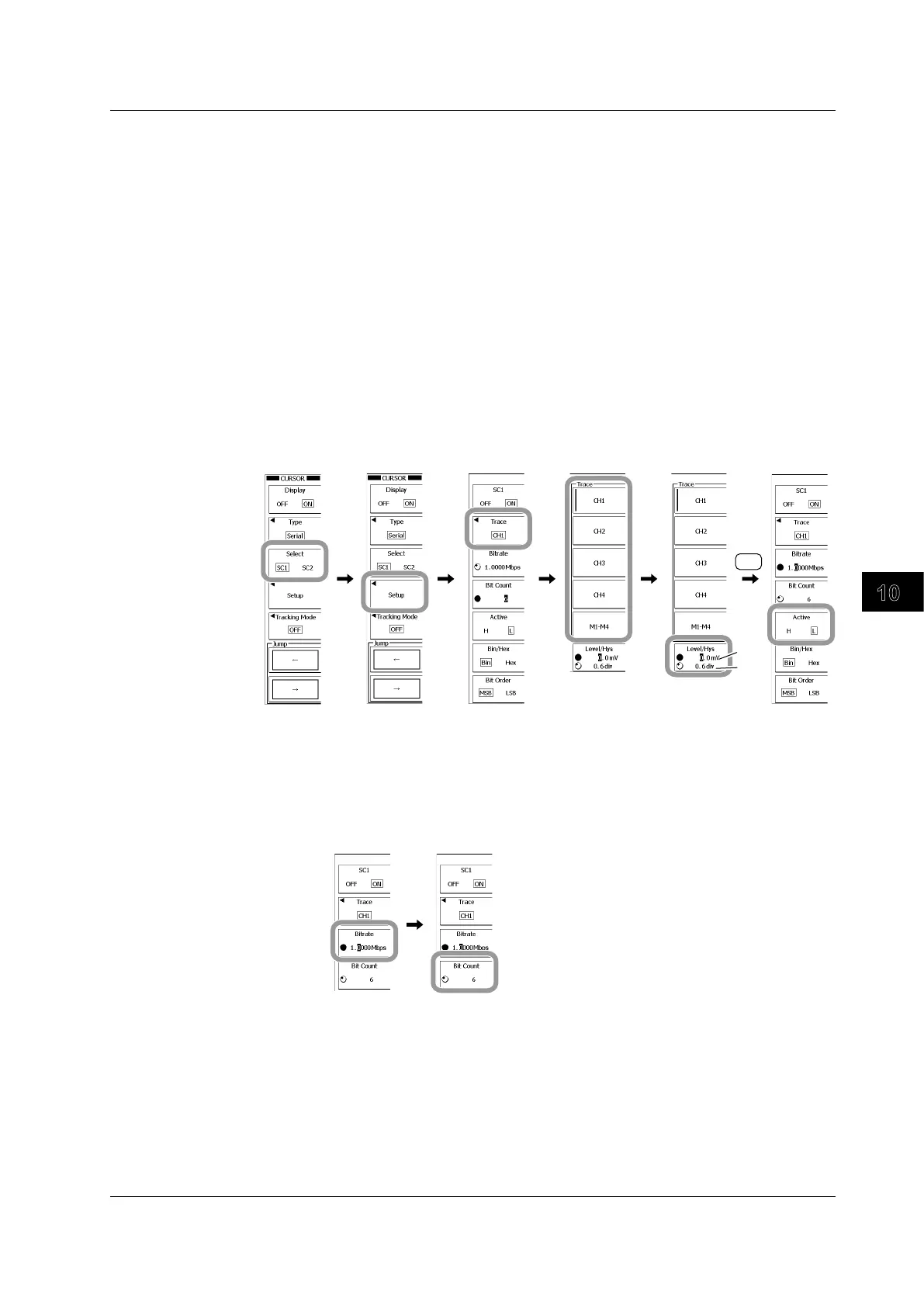

Selecting a Serial Cursor
4.
Press the Select soft key to select SC1 or SC2.
You can set two serial cursors: SC1 and SC2.
5.
Press the Setup soft key.
Selecting the Source Waveform
6.
Press the Trace soft key.
7.
Press the appropriate waveform soft key.
To select a channel from M1 to M4, press the
M1-M4
soft key first.
8.
Press the Level/Hys soft key.
9.
Use the rotary knob to set the threshold level and hysteresis.
Press the soft key to select the setting that you want to set using the rotary knob.
10.
Press ESC to return to the previous screen.
11.
Press the Active soft key to select H or L.
Setting the Bit Rate and Bit Count
12.
Press the Bitrate soft key.
13.
Use the rotary knob to set the bit rate from 1bps to 1Gbps.
14.
Press the Bit Count soft key.
15.
Use the rotary knob to set the bit count from 1 to 128.
10.1 Measuring Using Cursors
