10-18
IM 701310-01E

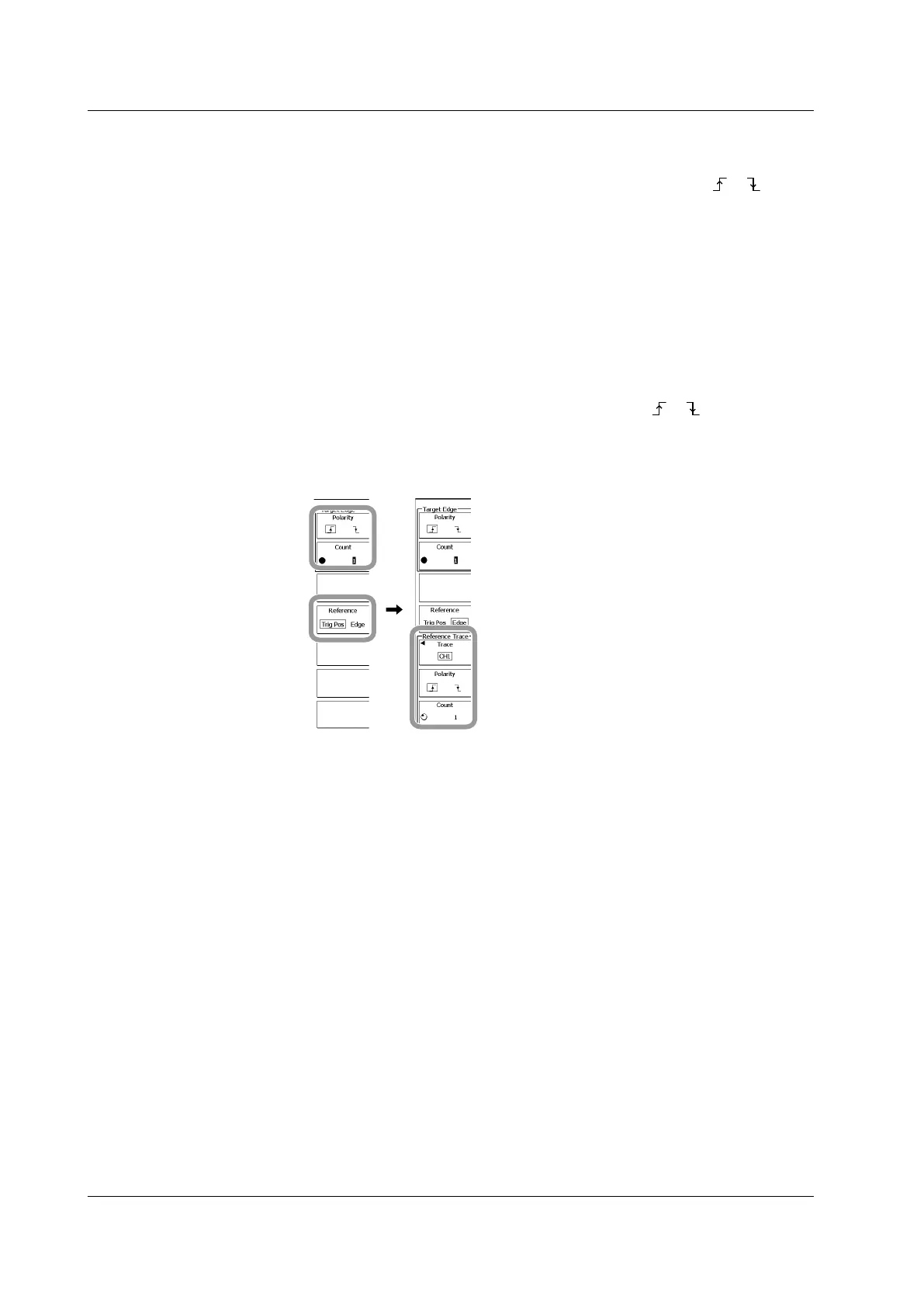

• Setting the Delay by Specifying the Edge Count and Reference Waveform
16.
Use the rotary knob and SET to select Delay Setup.
17.
Press the Polarity soft key to set the edge that will be counted to or .
18.
Press the Count soft key. Use the rotary knob to set the edge detection count
that defines the edge used to measure the delay.
19.
Press the Reference soft key to set the reference point to Trig Pos (trigger
position) or Edge.
If you select Trig Pos, proceed to step 24.
• Setting the Reference Point
20.
Press the Trace soft key.
21.
Press the appropriate soft key to select the reference waveform.
22.
Press the Polarity soft key to set the reference edge to or .
23.
Press the Count soft key. Use the rotary knob to set the edge detection count
that defines the reference edge.
24.
Press ESC to return to the previous screen.
10.2 Performing Automated Measurement of Waveform Parameters
To Next Page
