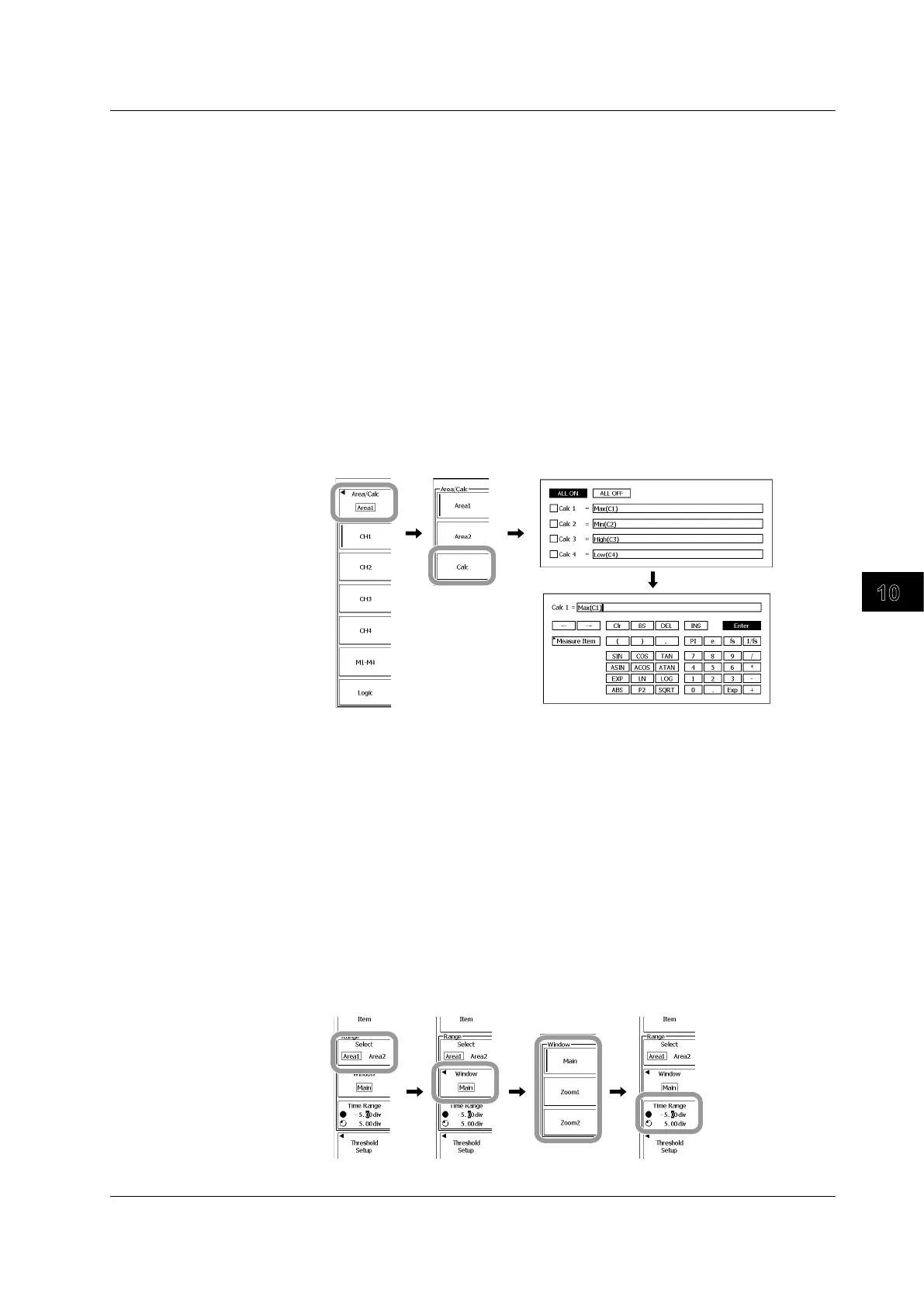

Setting a Calculation
Set the calculation only when you want to perform waveform parameter calculations.
25.
On the Area/Calc menu, press the Calc soft key.
26.
Use the rotary knob and SET to select the calculation number from Calc 1 to
Calc 4.
27.
Use the rotary knob and SET to select the expression box to the right of the
selected number.
The dialog box for entering the expression appears.
28.
Use the rotary knob and SET to select functions and operators.
• You can also use the rotary knob and SET to select Measure Item and then select
measurement items from the displayed menu.
• You can enter numbers using the numeric keys.
29.
When you are done entering the expression, press the Enter soft key. To cancel
the entered expression, press ESC.
The dialog box closes, and the screen for selecting the calculation number reappears.
30.
Press ESC to return to the PARAM menu.
Setting a Measurement Area’s Time Range
Selecting a Measurement Area
31.
Press the Select soft key to select Area1 or Area2.
Selecting a Measurement Window
32.
Press the Window soft key.
33.
Press the appropriate soft key from Main to Zoom4 to select a window.
Setting the Time Range
34.
Press the Time Range soft key.
35.
Use the rotary knob to set the time range start point (T1) and end point (T2).
Press the soft key to select the point that you want to set using the rotary knob.
10.2 Performing Automated Measurement of Waveform Parameters
