Displaying and Searching History Waveforms
11-23
IM 701310-01E
3
2
1
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
App
Index

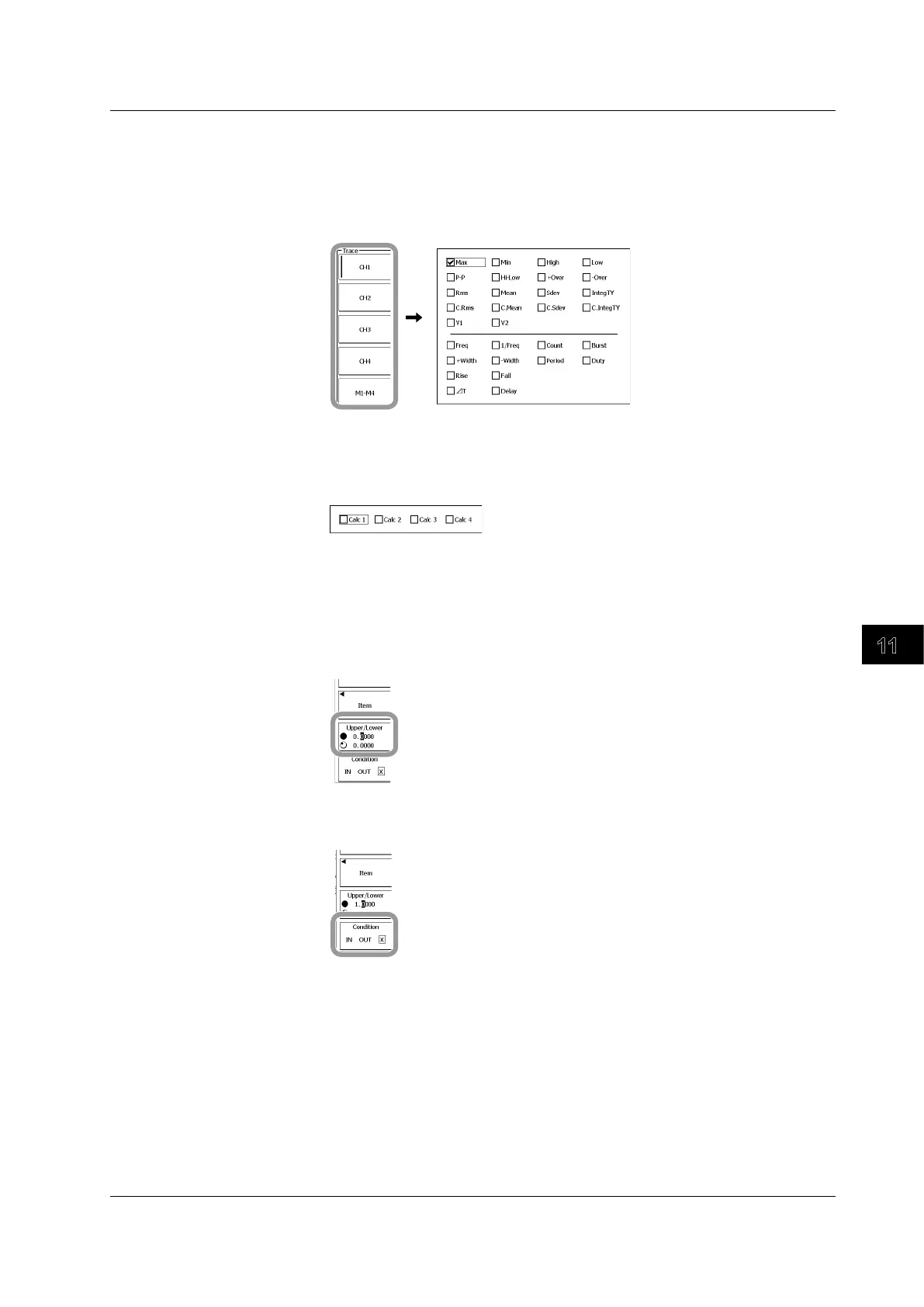

• Selecting a Signal/Waveform Parameter
11.
Press the appropriate signal soft key.
To select a channel from M1 to M4, press the
M1-M4
soft key first.
12.
Use the rotary knob and SET to select a waveform parameter.
Proceed to step 14.
• Selecting a Calculation
13.
Use the rotary knob and SET to select a calculation number from Calc 1 to Calc 4.
You can select a calculation that you set using the procedure described in section 10.2.
14.
Press ESC.
Setting the Upper and Lower Limits for the Selected Waveform Parameters
15.
Press the Upper/Lower soft key to select the limit that you will set.
16.
Use the rotary knob to set the upper and lower limits.
Selecting a Search Criterion
17.
Press the Condition soft key, to select IN, OUT, or X.
Repeat steps 5 to 17 for search conditions 1 to 4 as necessary.
18.
Press ESC to return to the search execution menu.
11.5 Searching History Waveforms Using Waveform Parameters (MEASURE History Search)
