14.1 Turning ON/OFF the Reference Waveform
Display

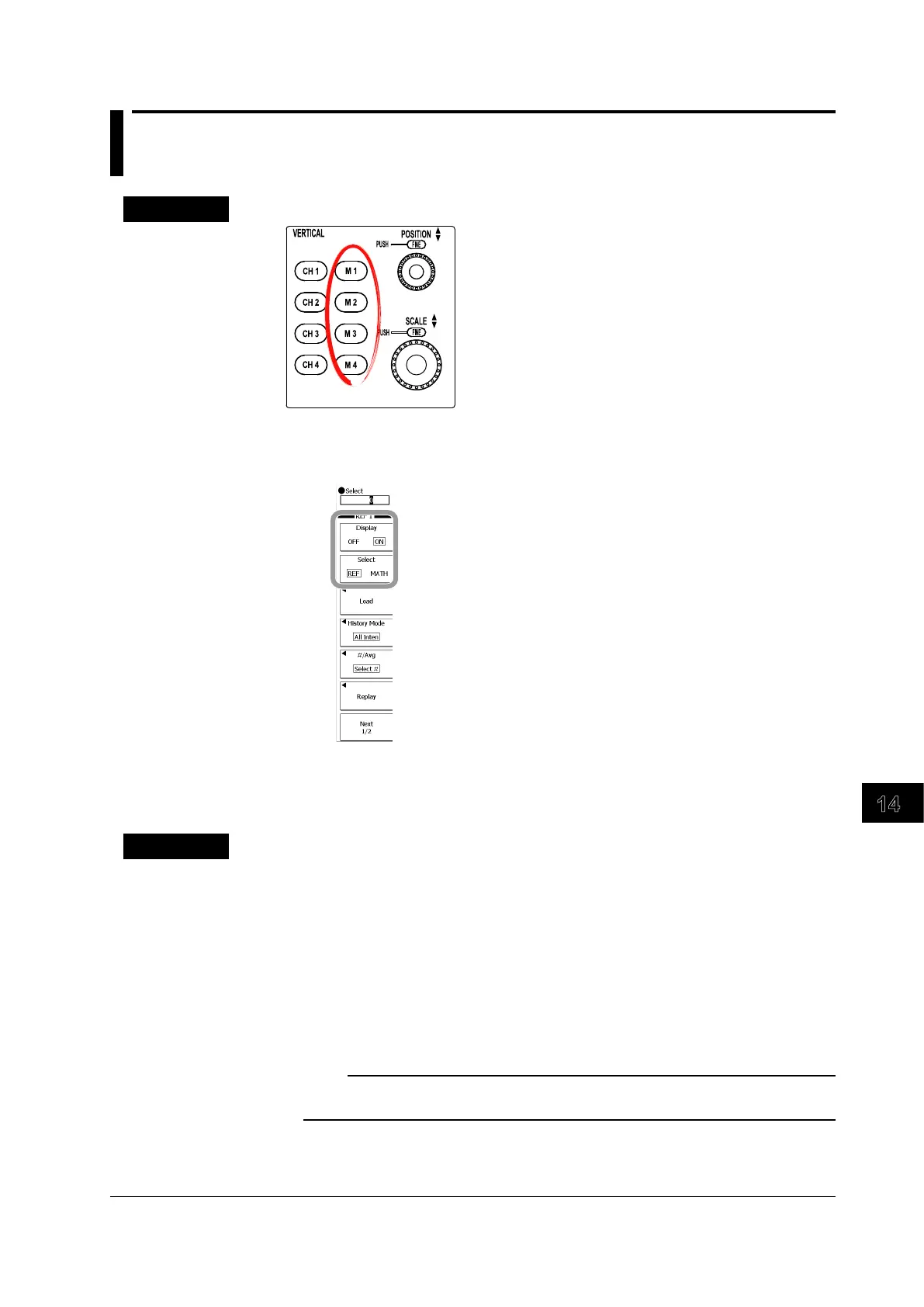

Procedure
1.
Press the key from M1 to M4 to select the waveform to be set.
The key lights, and the waveform appears.
2.
Press the Select soft key to select to REF.
Switching the Display OFF
1.
Press the key to be turned off, from M1 to M4.
2.
Press the Display soft key, and select OFF.
Explanation
A history waveform of input channels, a computed waveform and a waveform saved in
the internal memory can be displayed as reference waveforms of 1 to 4.
The DL9000 also allows you to perform computation with data of displayed reference
waveform.
When the reference waveform is set to ON, a computed waveform corresponding to the
reference number cannot be displayed.
Reference waveforms are backed up in the internal memory even if the DL9000 is turned
OFF. They are displayed the next time the power is turned ON. To delete all the data that
are backed up, turn the power ON while holding down the Reset key.
Note
• Only the latest waveform is backed up for history waveforms.
• Waveforms whose record length exceeds 125 kW are not backed up.
