Explanation
The auto setup function automatically sets the key settings such as V/div, T/div, and
trigger level that are appropriate for the input signal.

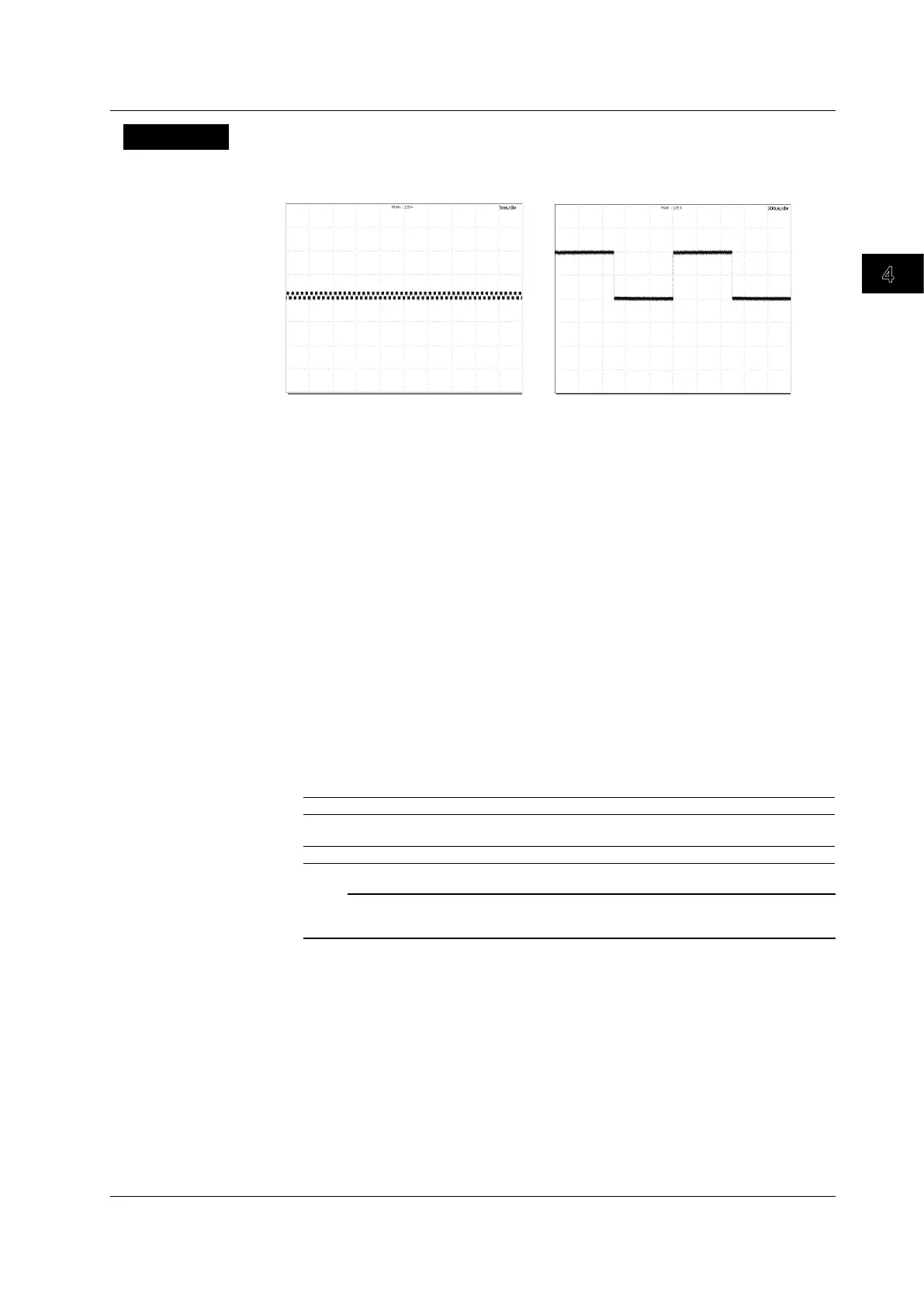

Before auto setup After auto setup
Center Position after Auto Setup
The center position after auto setup is 0 V.
Applicable Channels
Auto setup is performed on all channels.
Waveforms That Were Displayed before Auto Setup
If you execute auto setup, data in the acquisition memory will be overwritten, and
waveforms that were displayed before auto setup will be cleared.
Canceling Auto Setup
Pressing the Undo soft key to sets the DL9000 back to the settings that existed before
auto setup. However, when you turn OFF the power switch, the settings that existed
immediately before auto setup are clear. Therefore, the Undo operation is not possible in
this case.
Applicable Signals for Auto Setup
Frequency Approx. 50 Hz or higher
Absolute value of the input voltage Maximum value is greater than or equal to approximately
20 mV (when the probe attenuation is set to 1:1)
Type Repetitive signal (that is not complex)
Note
The auto setup function may not work properly if the signal includes DC components or high-
frequency components.
