Dot Model
+/A
–/B
b
+/A
–/B
b
Channel 1
Channel 2
Channel 3
Channel 4
Channel 5
Channel 6
Channel 1
Channel 3
Channel 5
Channel 2
Channel 4
Channel 6
+A
–/B
b
Screw input terminal
Clamped input terminal
(/H2 option)

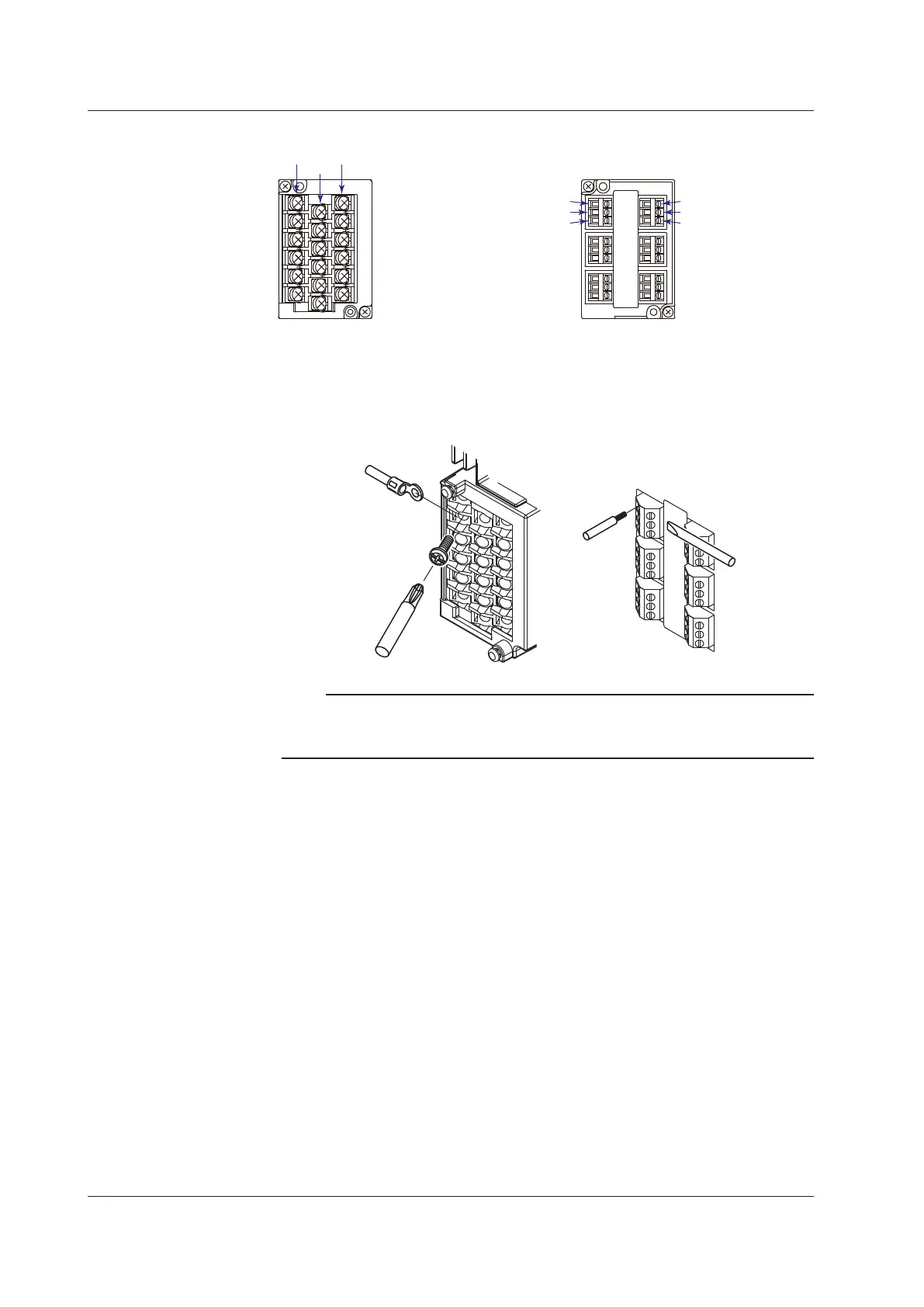

1.
Turn OFF the recorder and remove the terminal cover.
2.
Connect the signal wires to the terminals.
Clamped input terminal
Screw input terminal
Philips
screwdriver
Flat-blade
screwdriver
Crimp-on lug with
insulation sleeves
Signal wire
Signal wire
Note
Input signal wires of diameter less than or equal to 0.3 mm may not be secured firmly for
clamped terminals (/H2). Fold over the conducting section of the wire, for example, to make
sure that the wire is securely connected to the clamped terminal.
3.
Replace the terminal cover and fasten it with screws.
The proper torque for tightening the screws is 0.6 N•m.
2.3 Input Signal Wiring
