16-5
IM WT5000-02EN

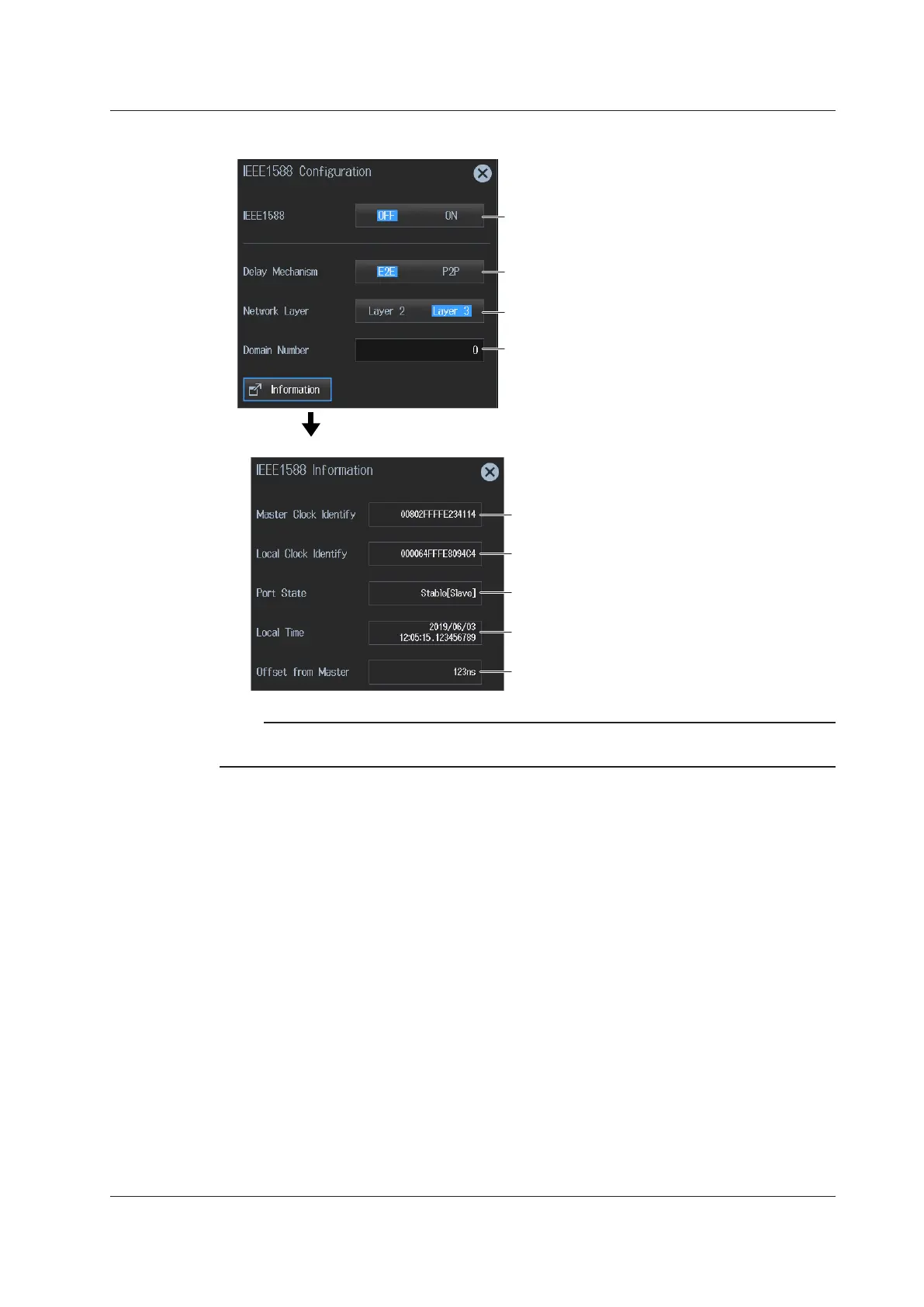

IEEE 1588 Configuration Screen
Set the domain number (0 to 255).
Configure the network layer
(Layer 2, Layer 3).
Set the delay mechanism (E2E, P2P).
Turns the IEEE1588 time synchronization
feature on and off
IEEE 1588 information
Tap Information.
Master clock ID (64-bit identifier)
Local clock ID (64-bit identifier)
Port state,
IEEE1588 state indication in brackets
Local time
Offset from master
Note
You can also display the utility settings overview screen by moving the cursor on the Utility tab using the
arrow keys and then pressing SET.
Procedure Using Keys
See section 16.1.
16.3 Configuring the IEEE 1588 Time Synchronization
To Next Page
