Accessories
157

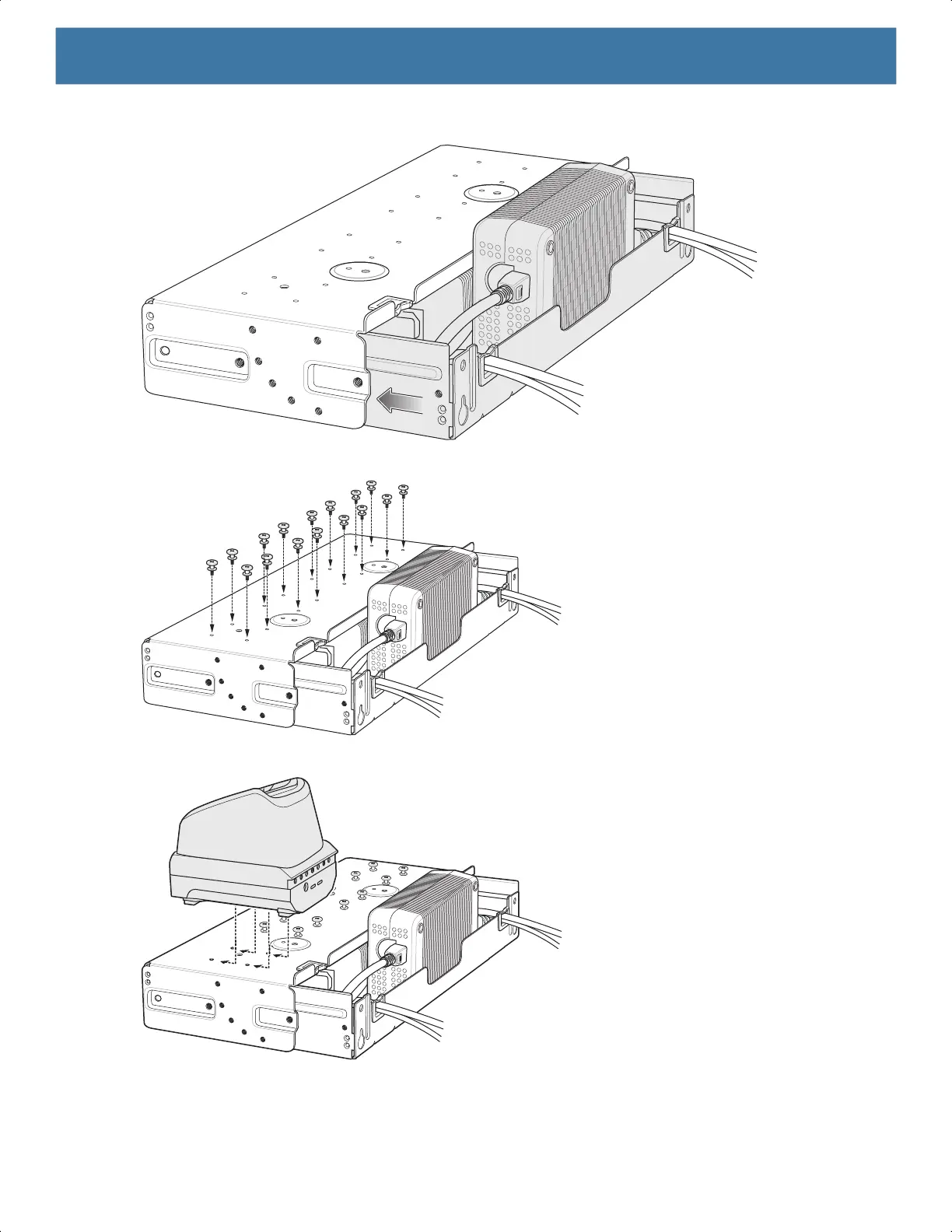

7. Slide top tray onto bottom tray until top tray touches vertical power supply.
8. Install 16 M2.5 studs onto top tray as shown below.
9. Align and install 4-Slot Battery Charger onto four studs.
