Accessories
156

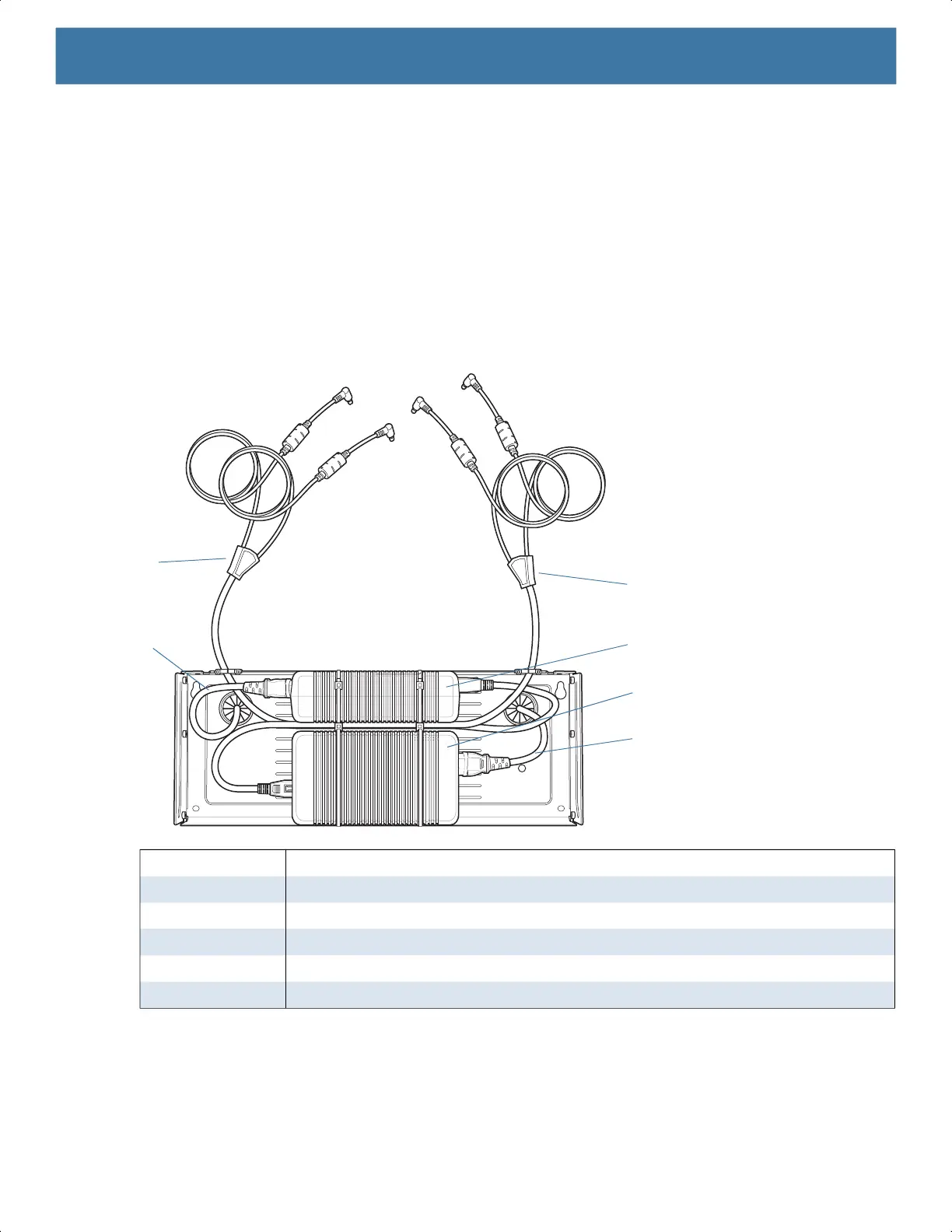

4-Slot Battery Chargers Rack Installation
Use the Rack/Wall Mount Bracket to mount four 4-Slot Battery Chargers on a rack. When installing on a rack,
first assemble the bracket and chargers and then install the assembly on the rack.
1. Place one power supply horizontally in bottom tray.
2. Place one power supply vertically in bottom tray.
3. Connect AC line cords to power supplies.
4. Connect DC line cords to power supplies.
5. Secure power supplies and cables to bottom tray with tie wraps.
6. Route cables through cable slots.
1 DC Y cable 1
2 DC Y cable 2
3 Power supply 1
4 Power supply 2
5 AC line cord 2
6 AC line cord 1
2
5
3
4
6
1
MN-003834-01ENa_tc52-android-10-ug-en.book Page 156
