4-Slot Battery Charger
CAUTION: Ensure that you follow the guidelines for battery safety described in Battery Safety Guidelines on
page 179.
This section describes how to use the 4-Slot Battery Charger to charge up to four device batteries.

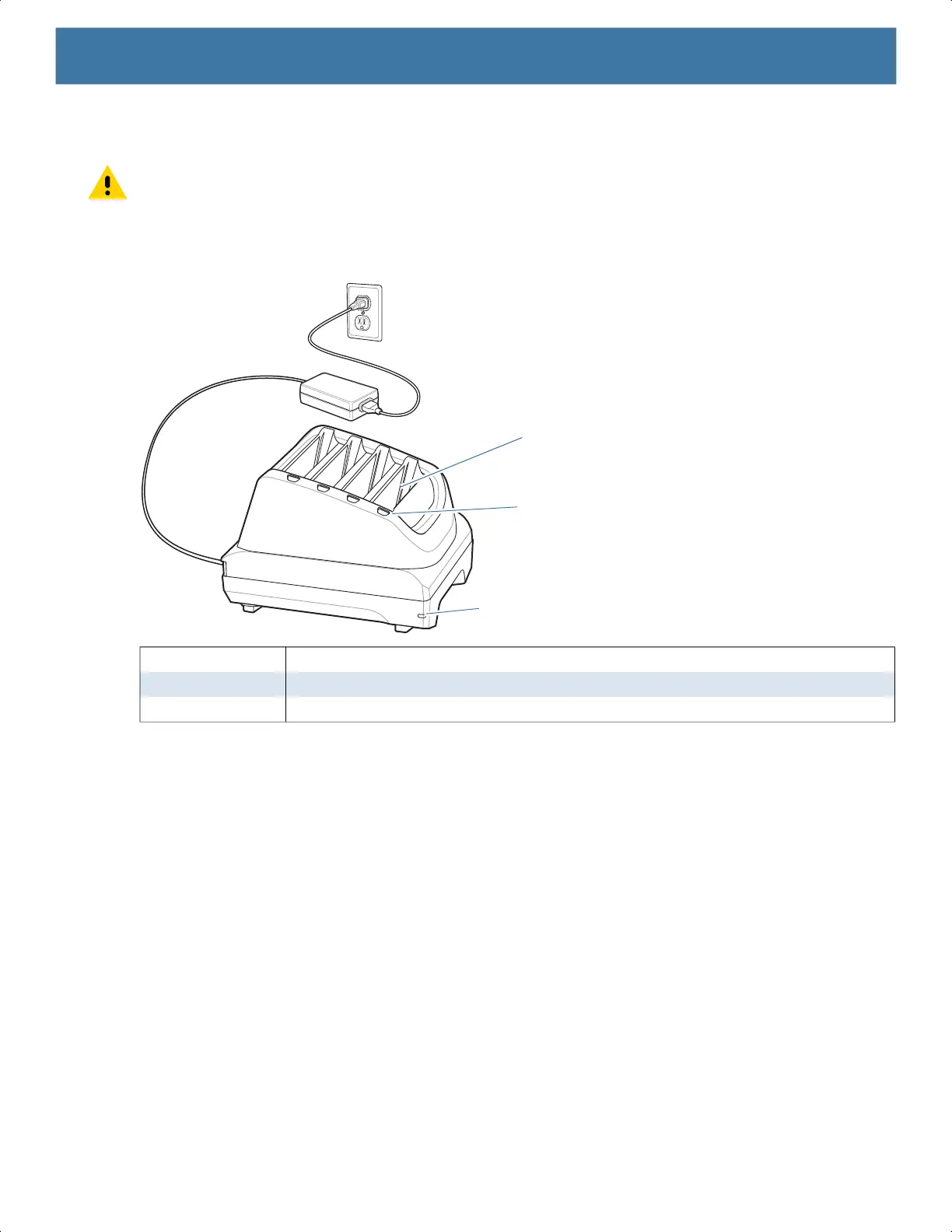

Figure 65 4-Slot Battery Charger
Setup
Single Charger Setup
1. Plug the DC line cord plug into the power port on the back of the charger.
2. Plug the DC line cord connector into the power supply.
3. Plug the AC line cord into the power supply.
4. Plug the AC line cord into an AC outlet.
1 Battery slot
2 Battery charge LED
3 Power LED
2
1
3
