Zebra TC52 Series User Manual

Data Capture
76

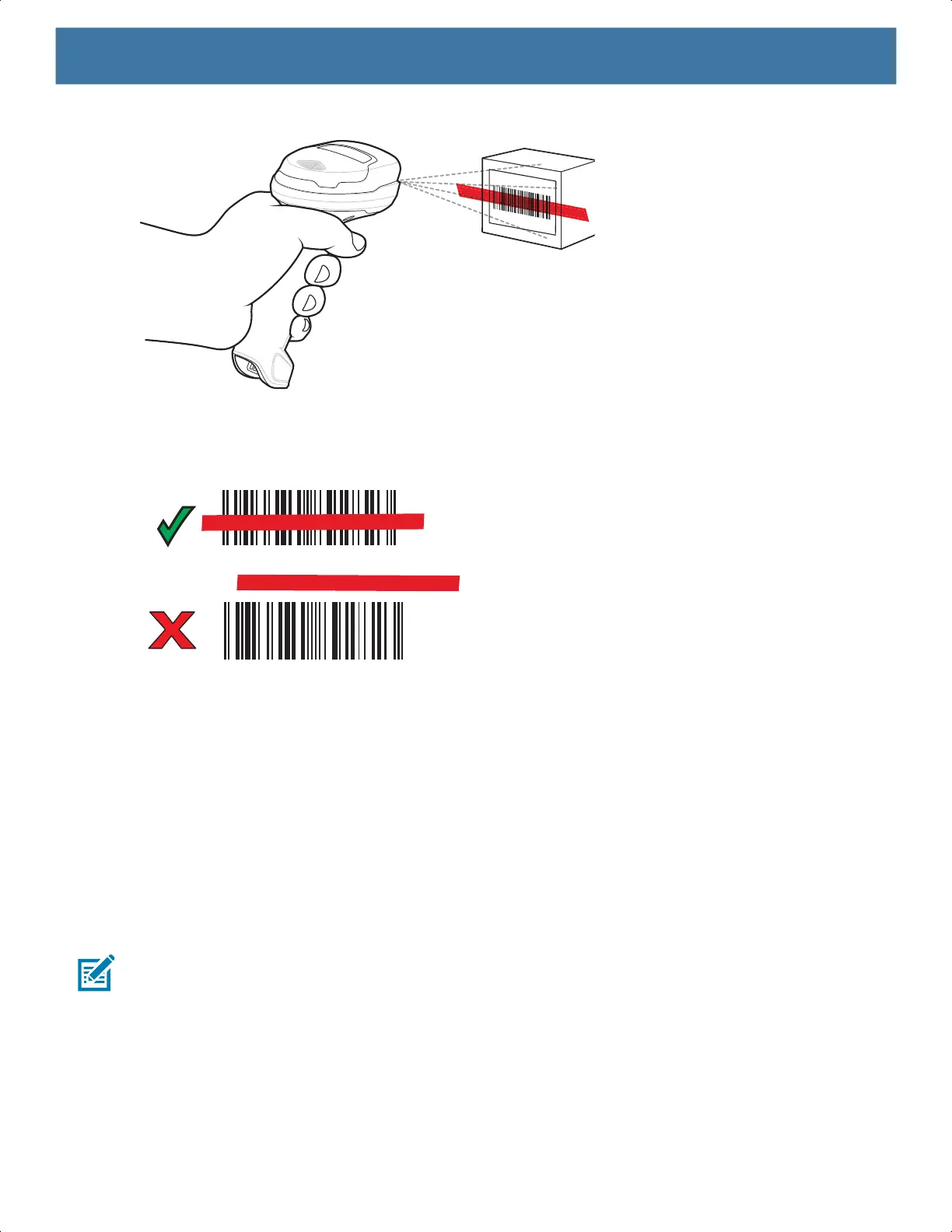

Figure 32 Barcode Scanning with DS2278
4. Press and hold the trigger.
5. Ensure the aiming pattern covers the barcode.
Figure 33 DS2278 Aiming Pattern
6. Upon successful decode, the scanner beeps and the LED flashes, and the scan line turns off.
7. The captured data appears in the text field.
Pairing the Bluetooth Ring Scanner
To connect the Bluetooth Ring Scanner to the device, use one of the following methods:
• Near Field Communication (NFC) (RS5100/RS6000 only)
• Simple Serial Interface (SSI)
• Bluetooth Human Interface Device (HID) Mode.
Pairing Using Near Field Communication
NOTE: RS5100 and RS6000 only.
The device provides the ability to pair the Ring Scanner using NFC.
To pair using NFC:
1. Ensure that the Ring Scanner is in SSI mode. Refer to the RS5100 or RS6000 User Guide for more
information.
2. Ensure that NFC is enabled on the device.
MN-003834-01ENa_tc52-android-10-ug-en.book Page 76

Zebra TC52 Series Specifications

General

Processor	Qualcomm Snapdragon 660 octa-core, 2.2 GHz
Memory	4 GB RAM/32 GB Flash or 4 GB RAM/64 GB Flash
Front Camera	5 MP
Operating Temp	-4°F to 122°F/-20°C to 50°C
Operating System	Android
Touch Panel	Capacitive touch panel; multi-touch
Rear Camera	13 MP with autofocus and flash
Battery	Li-Ion 4150 mAh; Hot-swappable
Connectivity	Wi-Fi 802.11 a/b/g/n/ac
Drop Specification	Multiple 6 ft./1.8 m drops to concrete over operating temperature range
Tumble Specification	1000 tumbles at 0.5 m (1.6 ft)
Sealing	IP65
Expansion Slot	MicroSD
Scanner	SE4710 imager (1D and 2D barcode scanning)
Durability	Corning Gorilla Glass
Weight	8.8 oz./249 g
