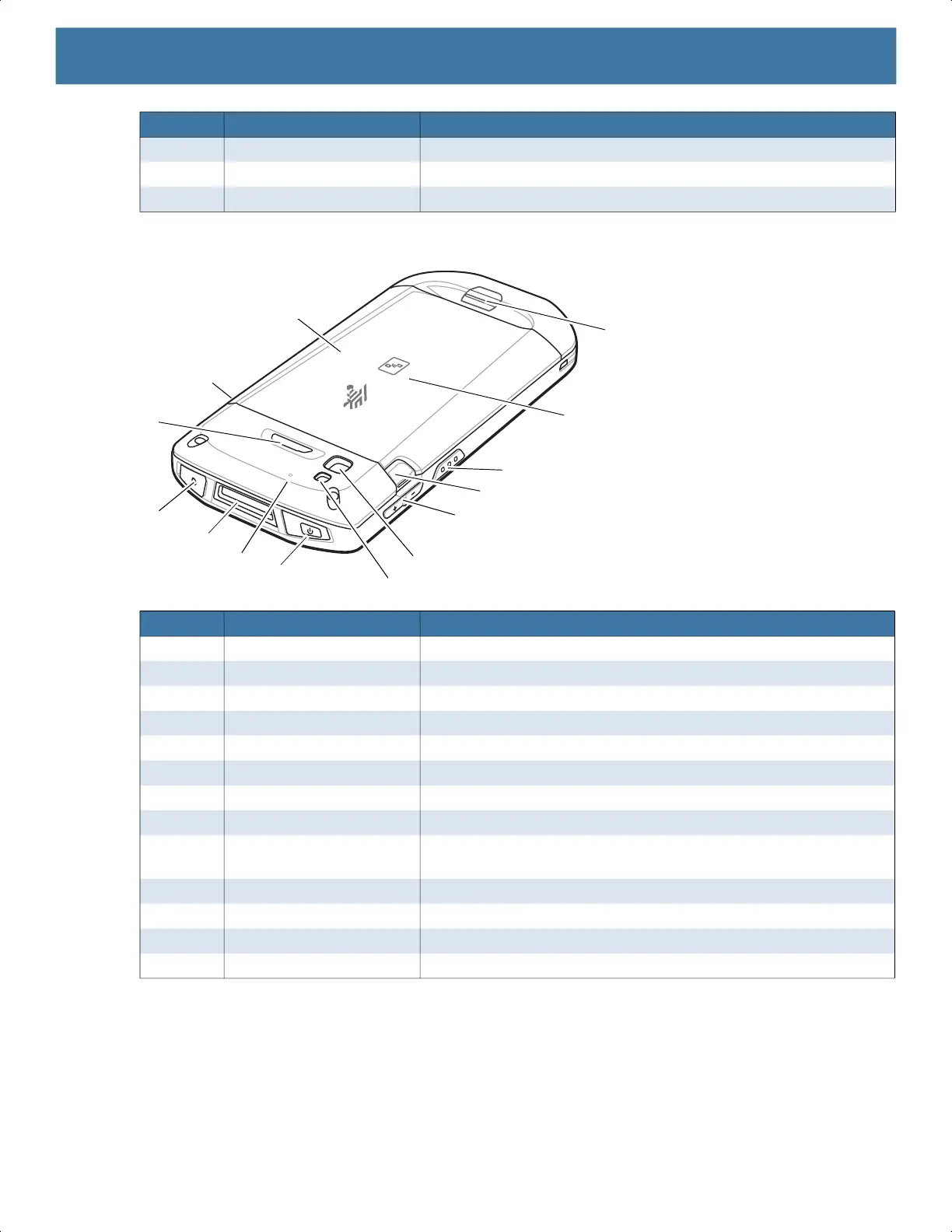

Figure 2 Rear View
12 Microphone Use for communications in Handset mode.
13 Scan Button Initiates data capture (programmable).
14 PTT Button Initiates push-to-talk communications (programmable).
Number Item Function
15 Battery PowerPrecision+ Lithium-ion battery.
16 Basic Hand Strap Mount Provides mounting point for Basic Hand Strap accessory.
17 NFC Antenna Provides communication with other NFC-enabled devices.
18 Scan Button Initiates data capture (programmable).
19 Battery Release Latches Press to remove the battery.
20 Volume Up/Down Button Increase and decrease audio volume (programmable).
21 Rear Camera Takes photos and videos.
22 Camera Flash Provides illumination for the camera.
23 Power Button Turns the display on and off. Press and hold to reset the device,
power off or swap battery.
24 Microphone Use for noise cancellation.
25 Exit Window Provides data capture using the imager.
26 Headset Jack For audio output to headset.
27 Programmable Button Programmable.
Number Item Function
27
18
20
21
15
23
26
19
19
22
17
16
25
24
