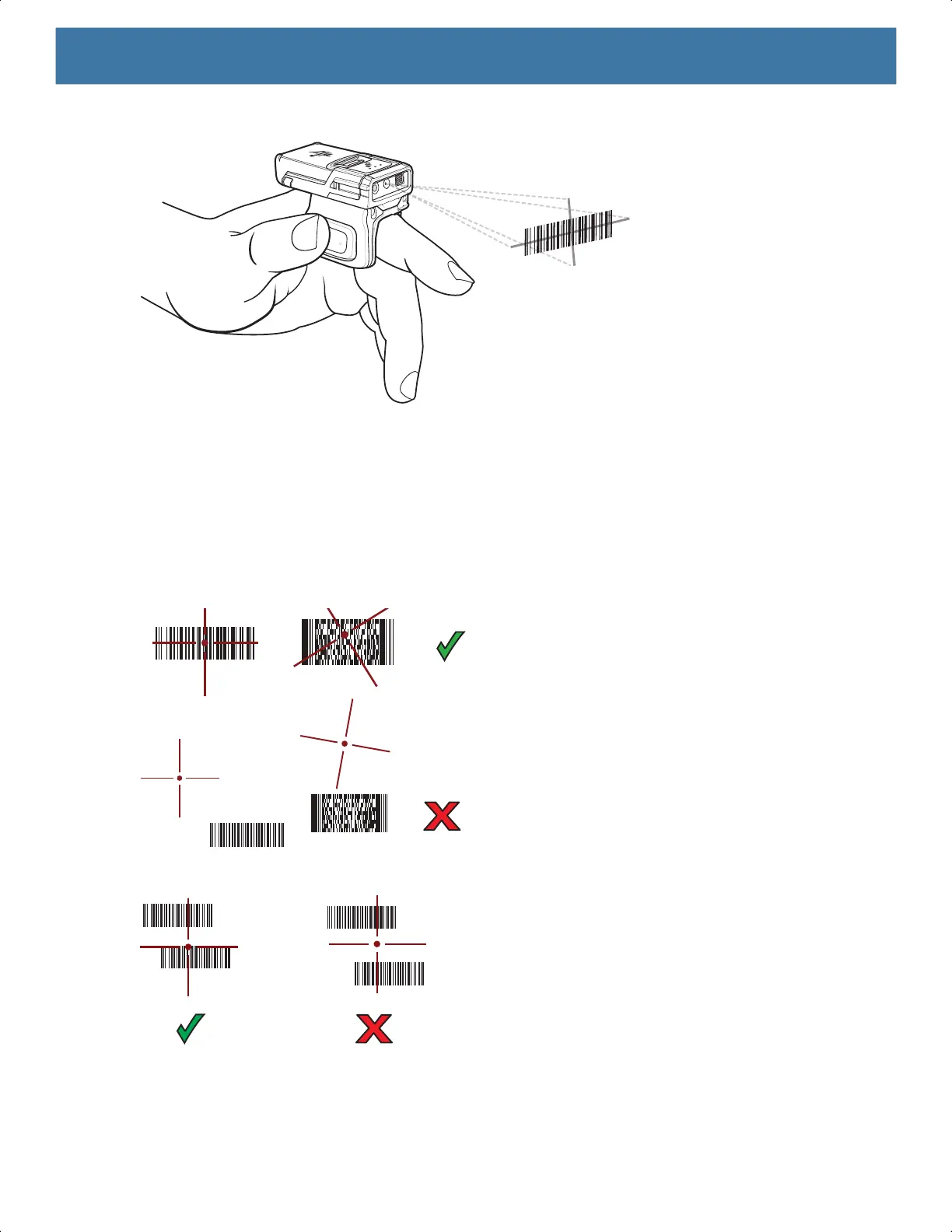

Figure 24 Barcode Scanning with RS5100
4. Press and hold the trigger.
The red laser aiming pattern turns on to assist in aiming. Ensure the barcode is within the area formed by
the cross-hairs in the aiming pattern. The aiming dot increases visibility in bright lighting conditions.
The RS5100 LEDs light green and a beep sounds to indicate the barcode was decoded successfully. When
the RS5100 is in Pick List mode, the RS5100 does not decode the barcode until the center of the crosshair
touches the barcode.
Figure 25 RS5100 Aiming Pattern
Figure 26 RS5100 Pick List Mode with Multiple Barcodes in Aiming Pattern
5. The captured data appears in the text field.
