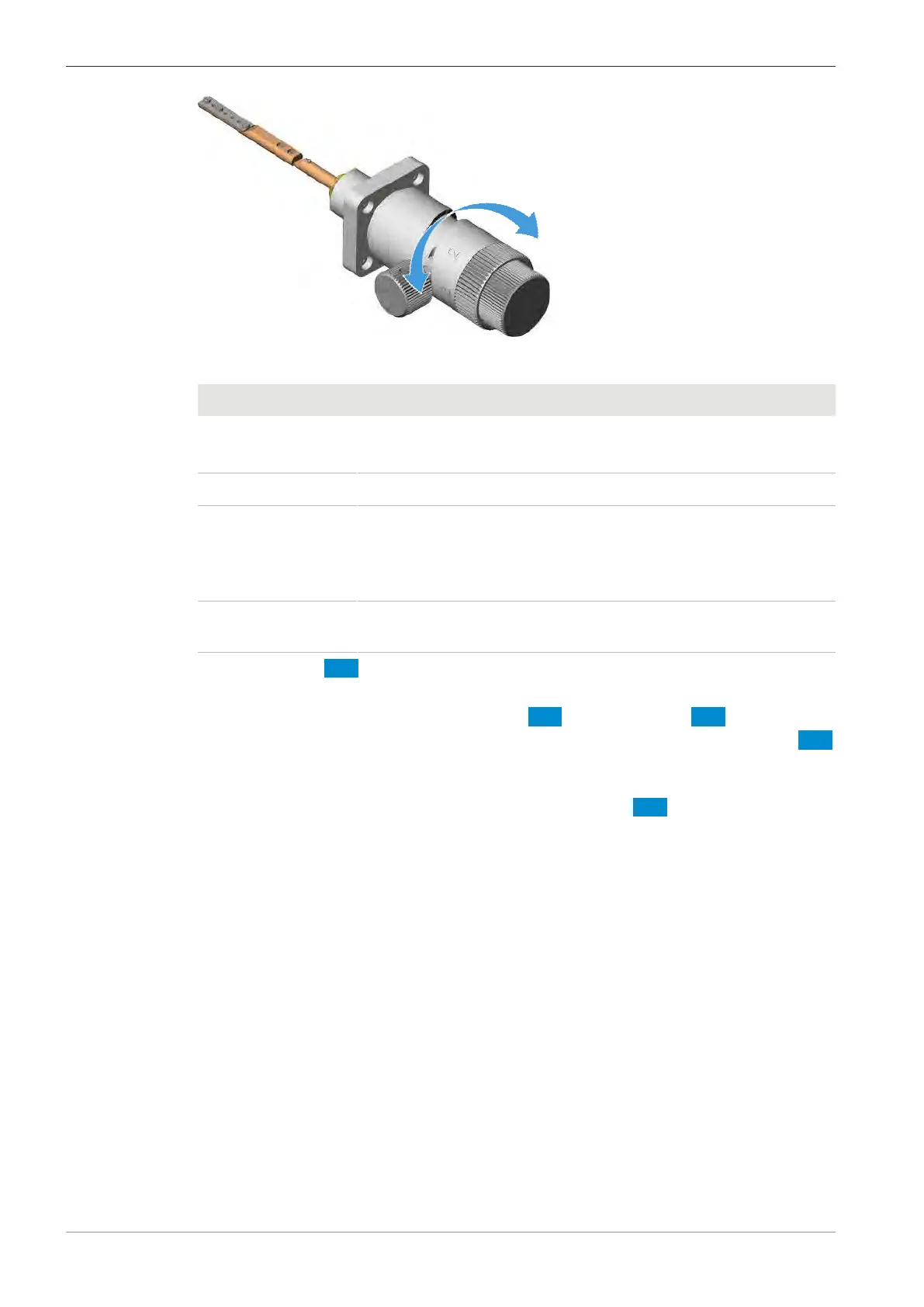

Fig.11: Mid-column aperture changer
Position Aperture diameter Typical application
0 750μm Optional VP mode (with 100μm VP aperture)
Optional EP mode (with 100μm EP aperture)
1 30μm HV mode
2 20μm HV mode
Optional EasyVP mode (with 400μm EasyVP
aperture in combination with a beamsleeve
aperture)
3 Apertures can be fit-
ted as an option
Stigmator
The stigmator coils
5
compensate for astigmatism so that the electron beam becomes rota-
tionally symmetrical.
Deflection System
The electron beam is focused by the objective lens
6
onto the specimen
8
while being de-
flected in a point-by-point scan (raster scan) over the specimen surface by the scanning coils
5
.
Signal Detection
When the primary electron beam hits the specimen, certain interaction products are released,
which can be recorded by specific detectors, e.g. the BSD detector
7
. For more information
refer to Principle of Signal Detection [
} 30].
