2 Safety | 2.5 Safety Devices and Interlocks ZEISS

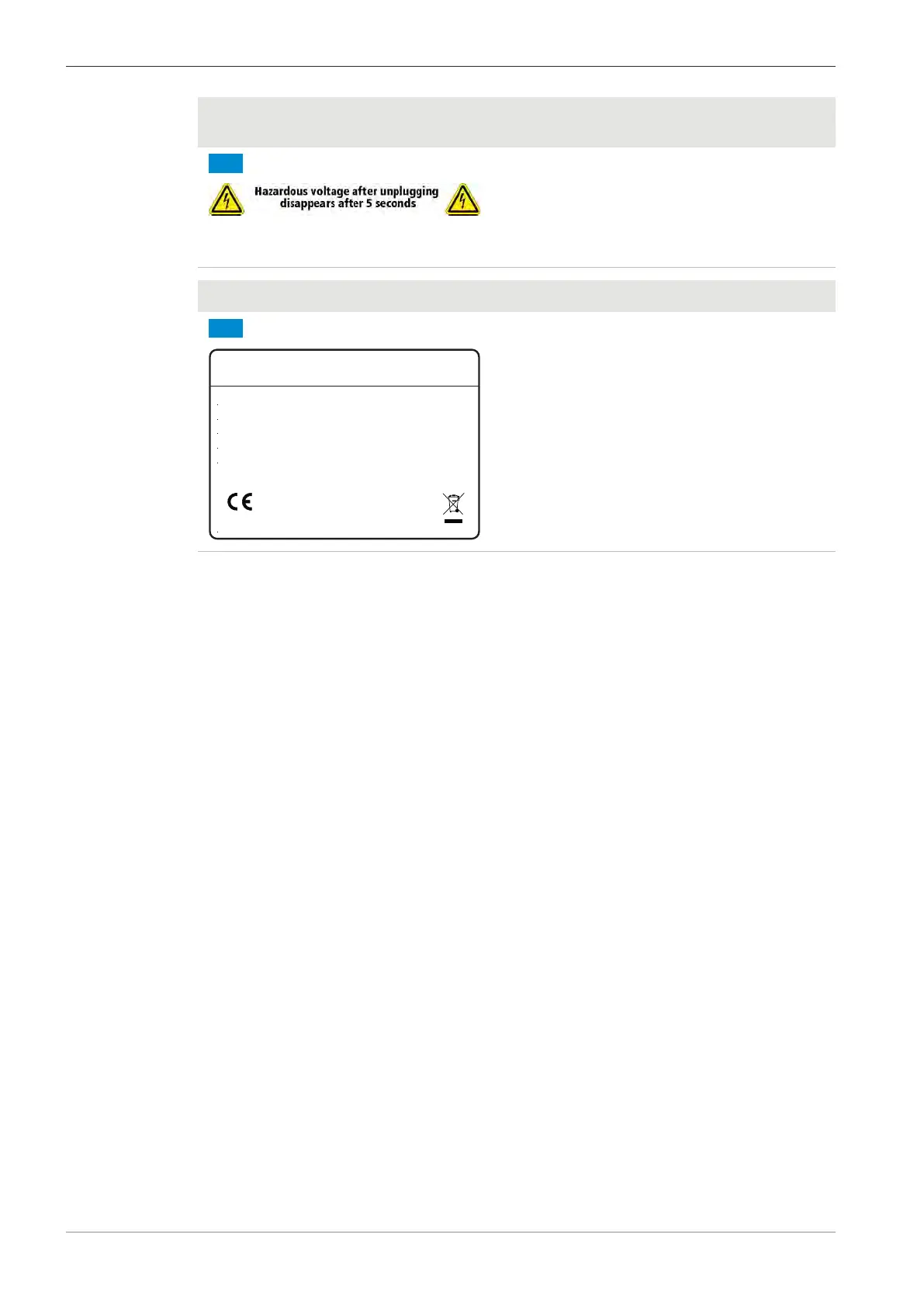

Position and Figure of the Safety La-
bel
Description
16
At the CEE connector
Risk of electrical shock
Residual voltage at the mains plug after unplug-
ging.
Wait at least 5 s after unplugging the mains plug
before touching the pins of the mains plug.
Position and Figure of the Type Plate Description
13
At the rear of the microscope
Carl Zeiss Microscopy GmbH
73447 Oberkochen, Germany
Serial number
50 - 60 Hz max. 16 A
EVO15
354900-9041-000
1/N/PE
Made in UK/GB
230 VAC
Manufactured in year 2017
The Type plate contains a unique serial number,
the EVO model designation with the according
part number, the manufacturing year, and the
mains voltage for which the EVO is configured,
either 230 VAC or 120 VAC.
Order no. 354900-9040-000 (EVO10)
Order no. 354900-9041-000 (EVO15)
Order no. 354900-9042-000 (EVO25)
2.5 Safety Devices and Interlocks
In order to prevent injuries and/or property damage, the Microscope System is equipped with sev-
eral safety devices and interlocks. In case of defect or damage, the affected parts and the Micro-
scope System must be taken out of operation immediately and must be secured against uninten-
tional use.
To verifying the safety of the Microscope System, please contact your ZEISS service representative.
Please keep the service logs and logbooks.
2.5.1 Protective Cover Panels
Due to hazardous voltages and X-rays inside the microscope, the microscope is equipped with
protective cover panels.
18 Instruction Manual ZEISS EVO | en-US | Rev. 10 | 354706-0780-006
