2 Description
2-2 NetPath 100 User’s Manual - Installation Guide 980-001-0210G
June
1999
ISDN Adapter
Option
The NetPath 100 can be factory-optioned to include an integral ISDN Adapter module.
The ISDN adapter includes four “U” ISDN TA Interfaces with two integral NT1 In-
verse Multiplexers, thereby providing up to 512 Kbps of switched connectivity for net-
work Backup and/or additional Bandwidth On-Demand.
ISDN Backup
Backup in Frame Relay Protocol utilizing the Router’s Primary Port can be via dedi-
cated PVCs on an alternate port, or the frame switch manager may reroute the original
PVCs to the Backup Frame Switch. It is also possible to bypass the entire Frame Relay
Network and initiate backup to a pool of ports on an alternate Frame Switch connected
directly to another Router.

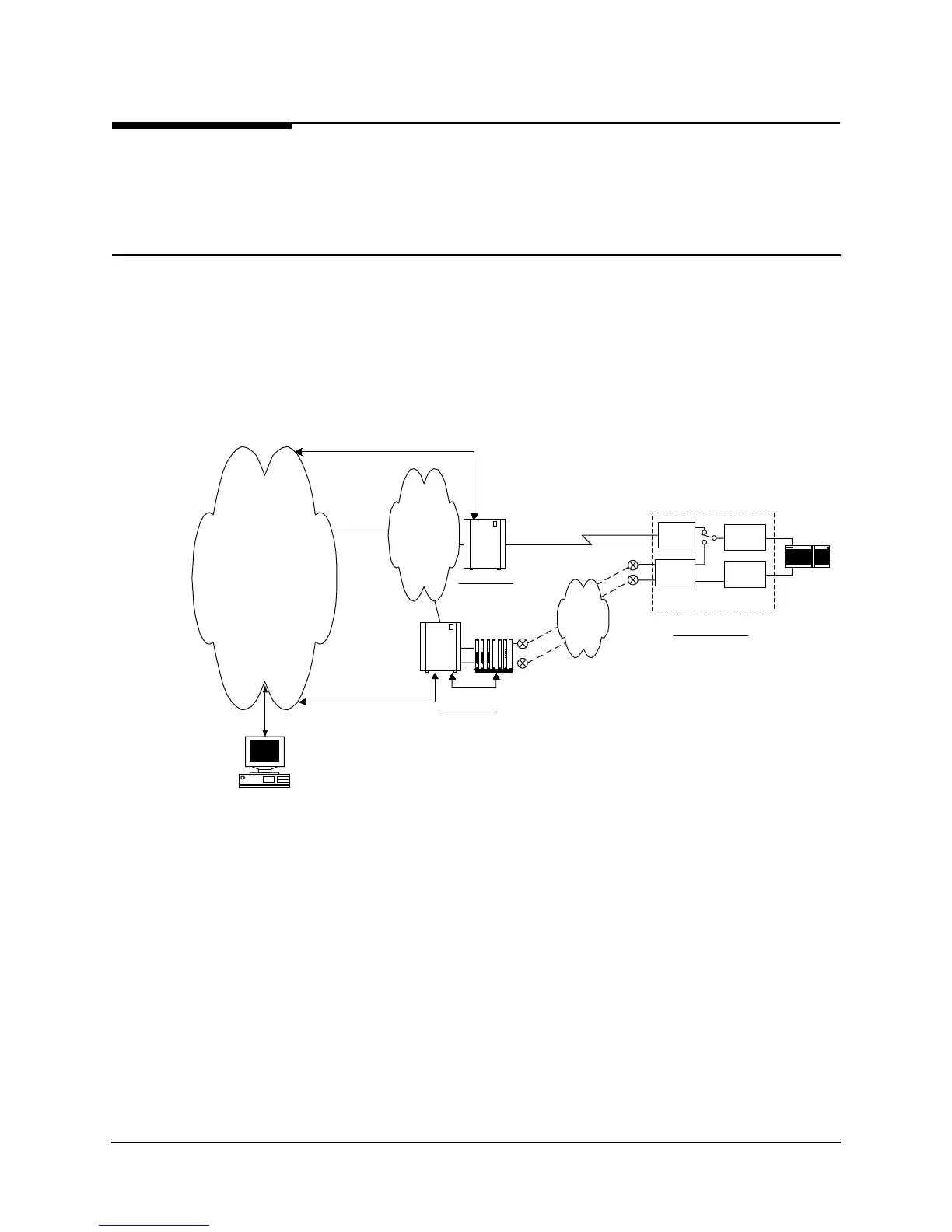

A typical network configuration showing the backup connection to a Backup Frame
Switch using rerouted PVCs is shown in Figure 2-2.
Fi
g
ure 2-2 T
y
pical Backup Confi
g
uration
The backup process is described as follows:
•
NetPath 100 detects loss of connectivity at CSU.
•
ISDN Adapter card calls Backup Frame Switch and is identified by caller ID.
•
Frame Switch Manager either reroutes original PVCs, or Frame Switch uses
alternate PVCs for the backup connection.
•
NetPath 100 switches the data path when connected.
•
Associated routers determine that PVCs have been established through LMI
enquiries.
•
Communication is resumed.
Frame
Backbone
CSU
ISDN
BRI 1
NetPath 100
Customer Location
PRI 1
V.35
Data
IP Mana
g
ement
Network
Backup
Frame
Switch
Frame
Switch
ISDN
PRI 4
BRI 4
Inverse
Multiplexer
Backup Node
On
Demand
F/S & IMux Control
Control
F/S Control
NP 100 Data
& Control
NP 100 Data
& Control
Work Station
Control
Router
Primar
y
Node
