Zhone 100 - NetPath 100 Unit Features

2 Description
2-4 NetPath 100 User’s Manual - Installation Guide 980-001-0210G
June
1999
NetPath 100
The basic NetPath 100 includes a T1 interface, network-compliant Fractional Rate to
Full Rate CSU/DSU, a Frame Relay switch function, a Frame Relay management
module, and an SNMP Agent.
The unit also includes two Auxiliary ports and may be factory-optioned to include an
internal V.32bis or V.34-compliant modem. An integral call director connects the mo-
dem to the CSU, AUX 1 port, AUX 2 port, or Option module (ISDN) based on a
DTMF code sent by the caller. All the devices can access the modem for call-out pur-
poses on a first-come, first-served basis.
System software can be downloaded to the NetPath 100 for upgrades.
The front and rear panels of the basic NetPath 100 are shown in Figure 2-4 and
Figure 2-5.
Detailed descriptions of the NetPath 100 indicators and controls are provided in sec-
tion 5 Diagnostics of this manual. Connector and pinout details are provided in Instal-
lation, Section 3 of this manual.

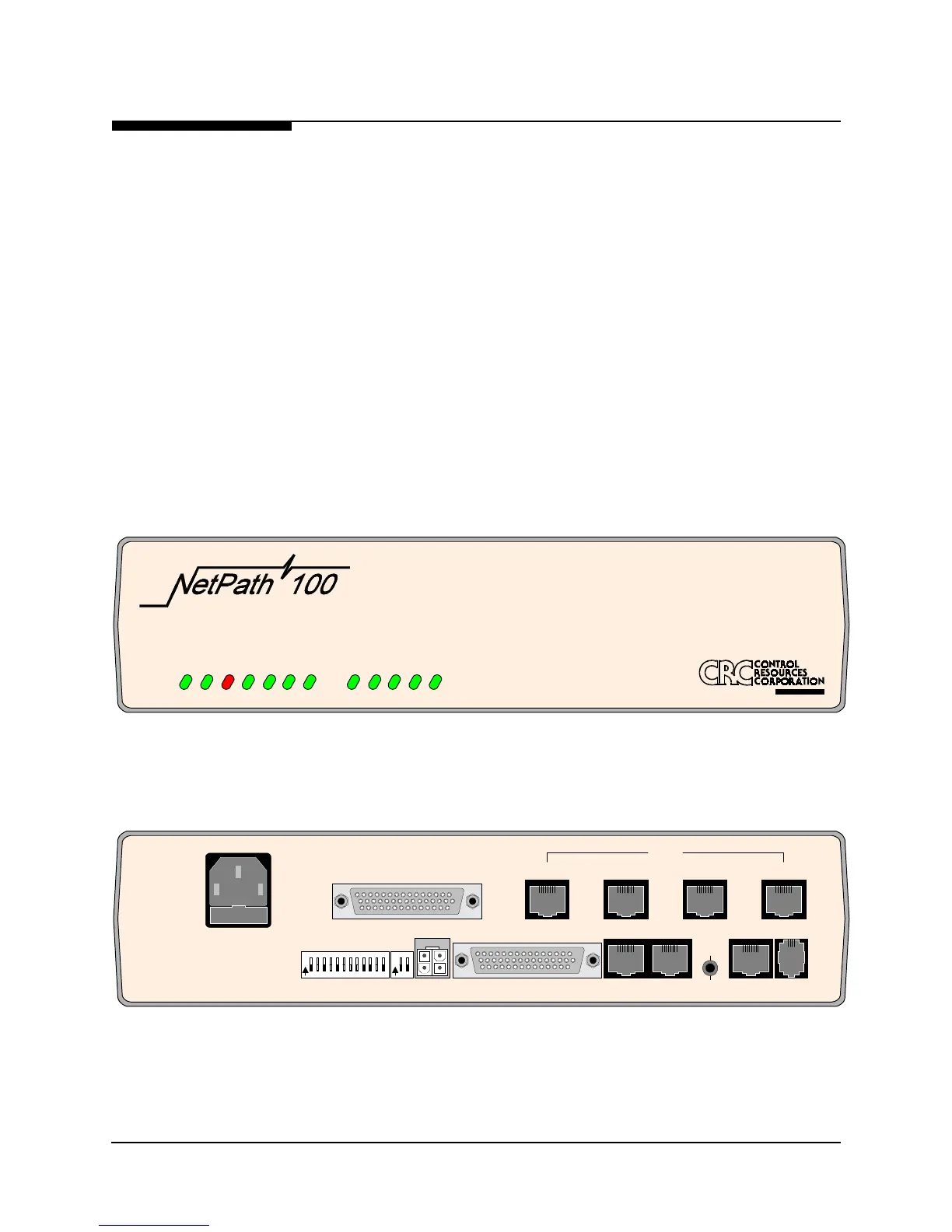

Figure 2-4 NetPath 100 Front Panel (shown with ISDN option)
Figure 2-5 NetPath 100 Rear Panel (shown with ISDN option)
