NetPath 100 also provides expanded management access to the FSU through the fol-
lowing features:
•
Support for two IP Addresses.
•
An optional network-facing management channel via a specified IP Address
on a specified payload PVC.
•
An optional CPE-facing dedicated PVC management channel.
These optional management paths are shown in Figure 2-8.

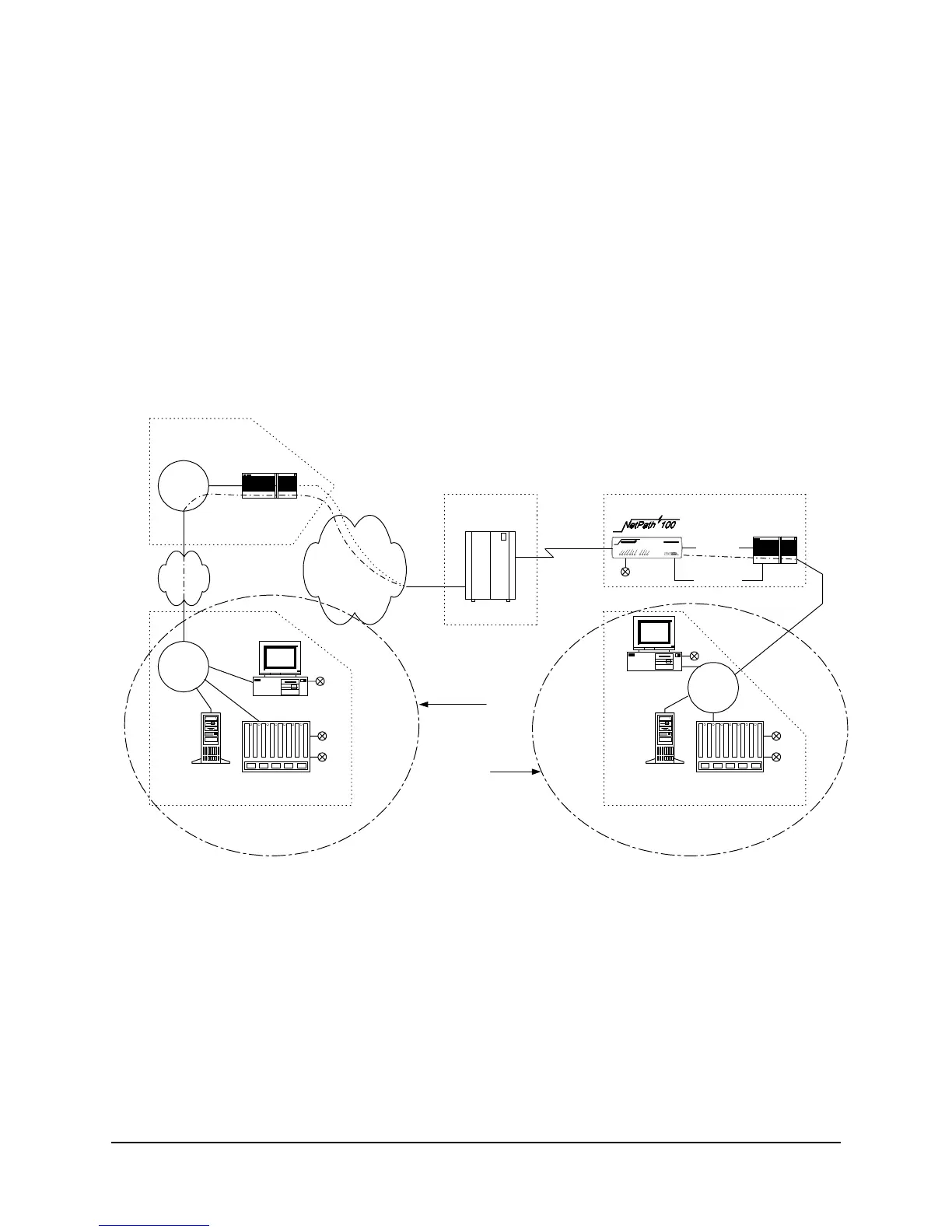

Figure 2-8 Payload / CPE Management
Customer Data
Center
IP Over
Frame
Customer &
Mgmt PVCs
Customer
LAN
Frame Relay
Backbone
Cust.
PVCs
Dial Line
Console Port
Serial Port
(Cust. PVC)
Router
End User Premise
Router
POP
Frame Switch
NCC Telnet
Work Station
SNMP Alarm
Server
NCC
LAN
Network Control Center
Mgmt
Terminal Server
SNMP Alarm
Server
NCC
LAN
NCC Telnet
Work Station
Network Control Center
Terminal Server
Mgmt
OR
Pa
y
load
CPE
