Zhone 100 - Power Control Unit Option

2 Description
980-001-0210G NetPath 100 User’s Manual - Installation Guide 2-5
June
1999
Power Control
Unit Option
The optional external Model 467 Power Control Unit (PCU) provides a mechanism for
rebooting an external device by momentarily disrupting its AC power source.
The unit is a stand-alone enclosure which consists of an AC power relay, relay control
circuit, power transformer, AC IN power plug/cord, AC OUT power socket/cord, and
NetPath power/control cable.
The PCU responds to an operator command to disrupt power to the connected device
for a duration of one (1) to 30 seconds. When commanded, the PCU disrupts both the
Hot and Neutral power leads.

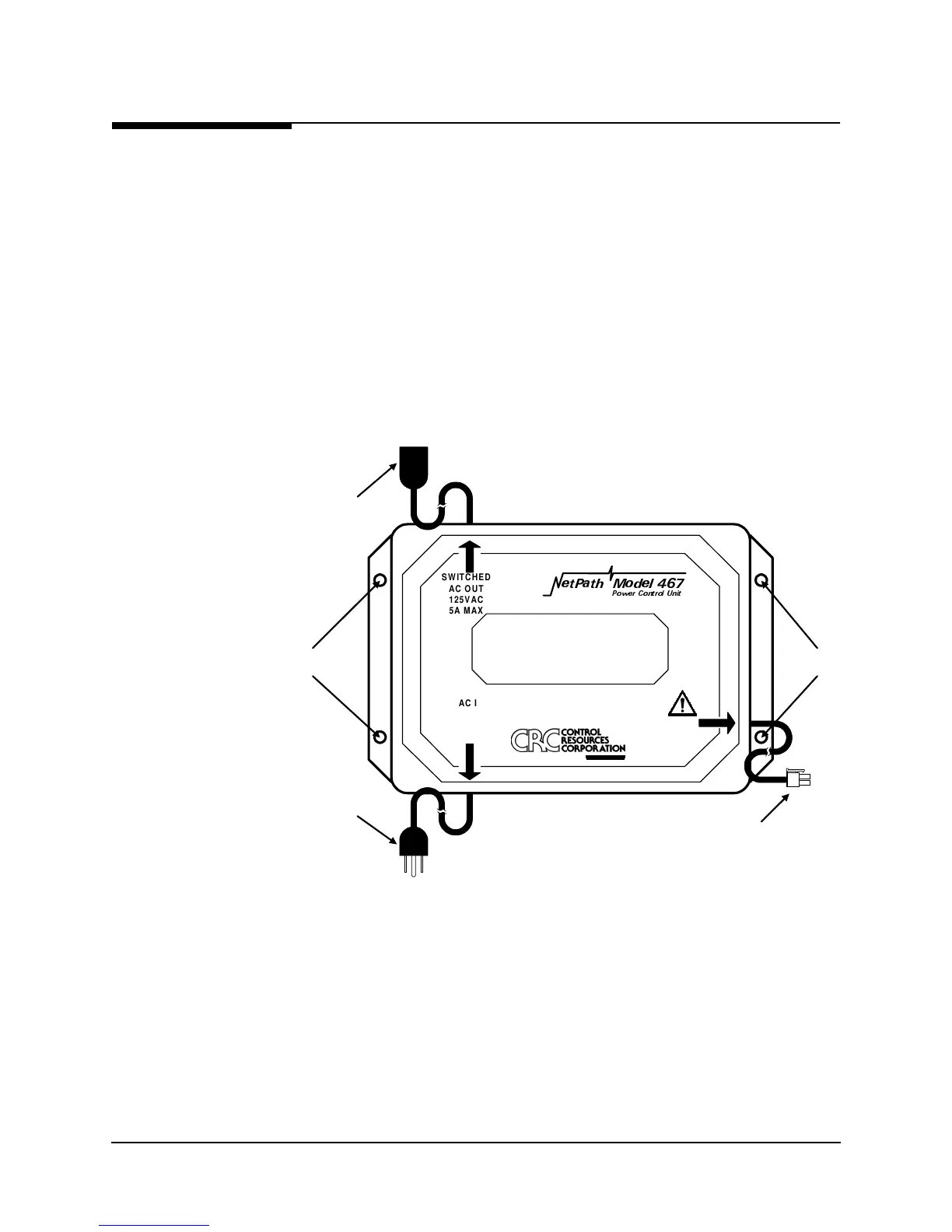

The PCU can be wall-mounted using the four mounting holes shown in Figure 2-6.
Fi
g
ure 2-6 Model 467 Power Control Unit
A
P-COM
Company
SEE
USERS
MANUAL
HW3DWK 0RGHO 
3RZHU &RQWURO 8QLW
SWITCHED
AC OUT
125VAC
5A MAX
AC IN
125VAC
5.5AMPS MAX
50-60Hz
WARNING!
NO USER SERVICEABLE PARTS INSIDE
HIGH INTERNAL VOLTAGES PRESENT
INTERNAL SHOCK HAZARD PRESENT
Mounting
Holes
Mounting
Holes
AC IN
Plug
AC OUT
Socket
Power/Control
Connector
(4-Pin, Keyed, Locking)
