2 Description
980-001-0210G NetPath 100 User’s Manual - Installation Guide 2-7
June
1999
WAN DLCI
The in-band Frame Relay Management Channel WAN address is defined by the DLCI
(Data Link Connection Identifier). The WAN DLCI can be configured for a Dedicated
PVC, or as a Tunneled channel within a Payload PVC. During initial installation the
WAN DLCI can be set via the unit’s rear panel Configuration DIP Switches, Local
Console Port or Dial-In Console Port. Thereafter the DLCI can also be changed via in-
band management access.
Management
IP Addressing
NetPath 100 has special features for Network Service Providers (NSPs) who require
management access to the FSU to be isolated from the payload data. This isolated ac-
cess is provided either by NetPath 100’s dedicated network-facing management PVC
as shown in Figure 2-1 or by the Tunneled management channel on a network-facing
Payload PVC as shown in Figure 2-7.

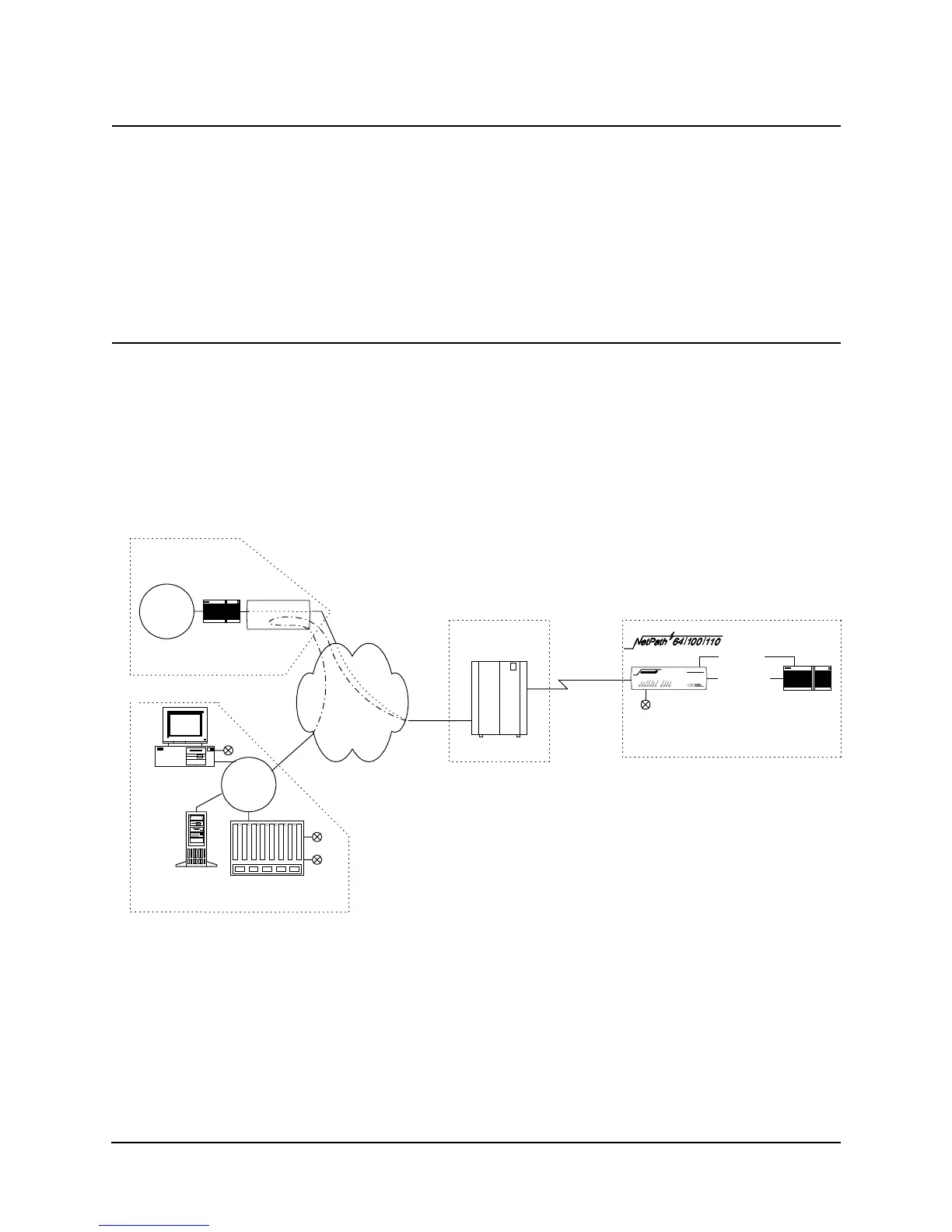

Fi
ure 2-7 Tunneled Mana
ement
Tunnel management is accomplished by a NetPath HUB (NetPath100 class unit) locat-
ed at a site which supports up to 48 PVCs connected to NetPath units located at remote
(spoke) sites. The HUB unit performs the routing and encapsulation function for man-
agement channel messages going to and from the remote units. The HUB is connected
to the network management systems by a separate dedicated group management PVC.
SNMP Alarm
Server
NCC
LAN
NCC Telnet
Work Station
Customer Data
Center
Network Control Center
IP Over
Frame
Customer &
Mgmt PVCs
Customer
LAN
Frame Relay
Backbone
Cust.
PVCs
Group
Mgmt
PVC
Terminal Server
Dial Line
Console Port
Serial Port
(Cust. PVC)
Router
End User Premise
Router
POP
Frame Switch
HUB
NetPath 100
To Next Page
