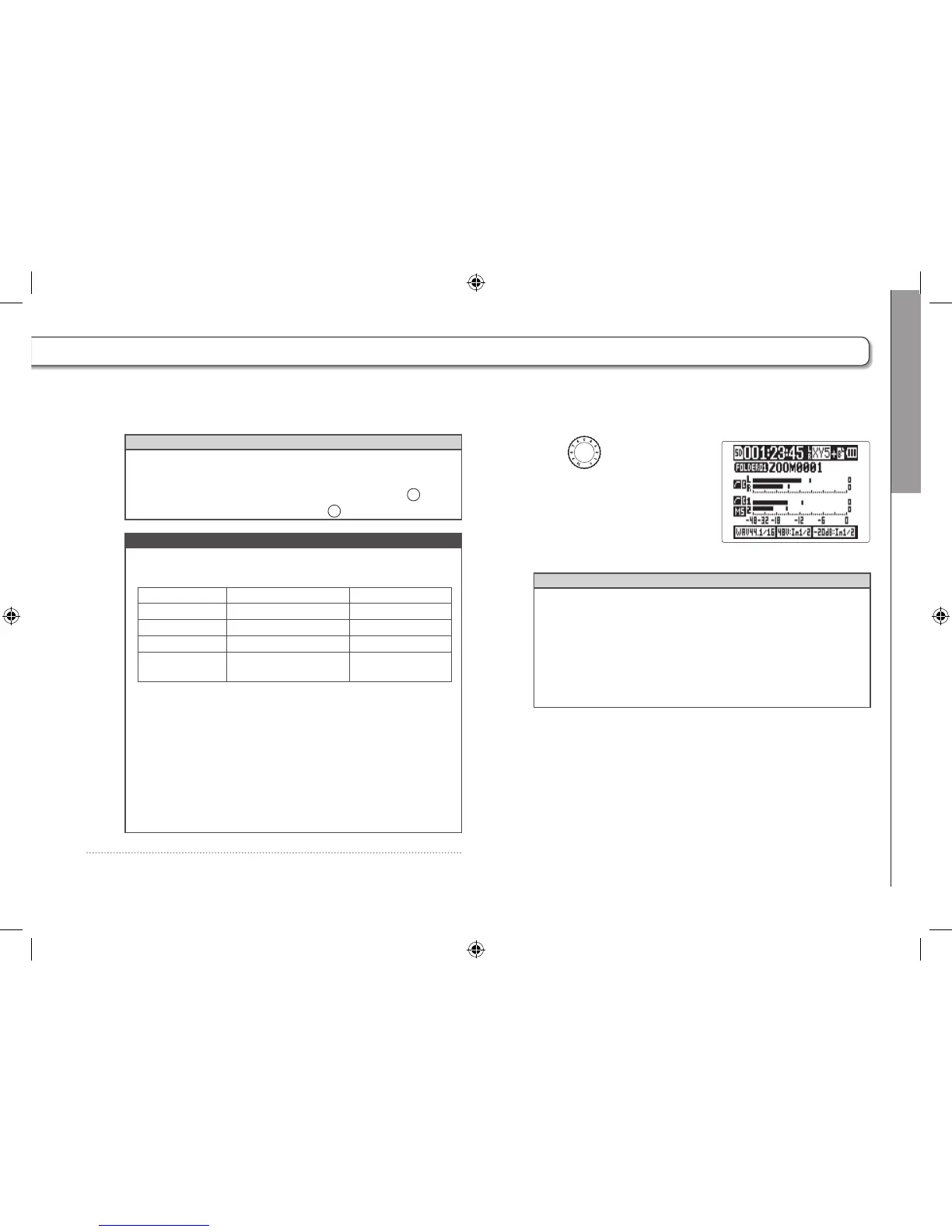

Zoom H5 User Manual

Recording
Selecting inputs and adjusting levels
23
H5 Handy Recorder
HINT
If a combo type input capsule is connected to the L/R
inputs, you can enable and disable the stereo link with
these tracks in the same manner by pressing the
R
L
track
button while pressing and holding
R
L
.
NOTE
When using MULTI FILE recording mode
•
Files are created for each selected input as follows.
Track recorded File name Description
L/R input
ZOOMnnnn_TrLR.WAV Stereo file
Input 1
ZOOMnnnn_Tr1.WAV Mono file
Input 2
ZOOMnnnn_Tr2.WAV Mono file
Input 1/2
(stereo setting)
ZOOMnnnn_Tr12.WAV Stereo file
Note: “nnnn” in the file name is the project number
•
All the files that are created during the same recording
in MULTI FILE mode are managed as a single project
unit.
When using STEREO FILE recording mode
•
Files are created for each selected input as follows.
ZOOMnnnn.WAV/ZOOMnnnn.MP3 (stereo file)
Note: “nnnn” in the file name is the file number
•
In STEREO FILE mode, this data is managed in file units.
3. Turn for the
selected input to adjust
the input level.
HINT
•
Adjust so that the peak level stays around −12dB.
•
If the sound distorts even when you lower the input
level, try changing mic positions and adjusting the
output levels of connected devices.
•
The COMP/LIMITER function can be used. (→ P. 94)
•
Noise from wind and other sources can be cut during
recording. (→ P. 93)
MULTI FILE mode

Zoom H5 Specifications

General

G-shock sensor	No
Number of cameras	1
Sample rate	96 kHz
Audio quality	24 bit
Audio recording	Yes
Microphone sensitivity	45 dB
Compatible memory cards	SD, SDHC
Power source type	Battery
Product color	Black
Microphone maximum input	140 dB SPL
Microphone input impedance	2000 Ω
Interface	1/8\
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.

Weight and Dimensions

Depth	135.2 mm
Width	66.8 mm
Height	42.1 mm
Weight	176 g
