Zoom H5 User Manual

Connecting mics/other devices to Inputs 1/2
08
Connecting mics/other devices to Inputs 1/2
Connecting mics
Connect dynamic mics and condenser mics to the Input 1/2
XLR jacks.
Phantom power (+12V/+24V/+48V) can be supplied to con-
denser mics. (→ P. 96)
Connecting instruments and other devices
Connect keyboards and mixers directly to the Input 1/2 TRS
jacks.
Direct input of passive guitars and basses is not supported.
Connect these instruments through a mixer or effects
device.
Turn the PAD function ON when connecting a mixer or
other device with a standard output level of +4dB.
(→ P. 98)

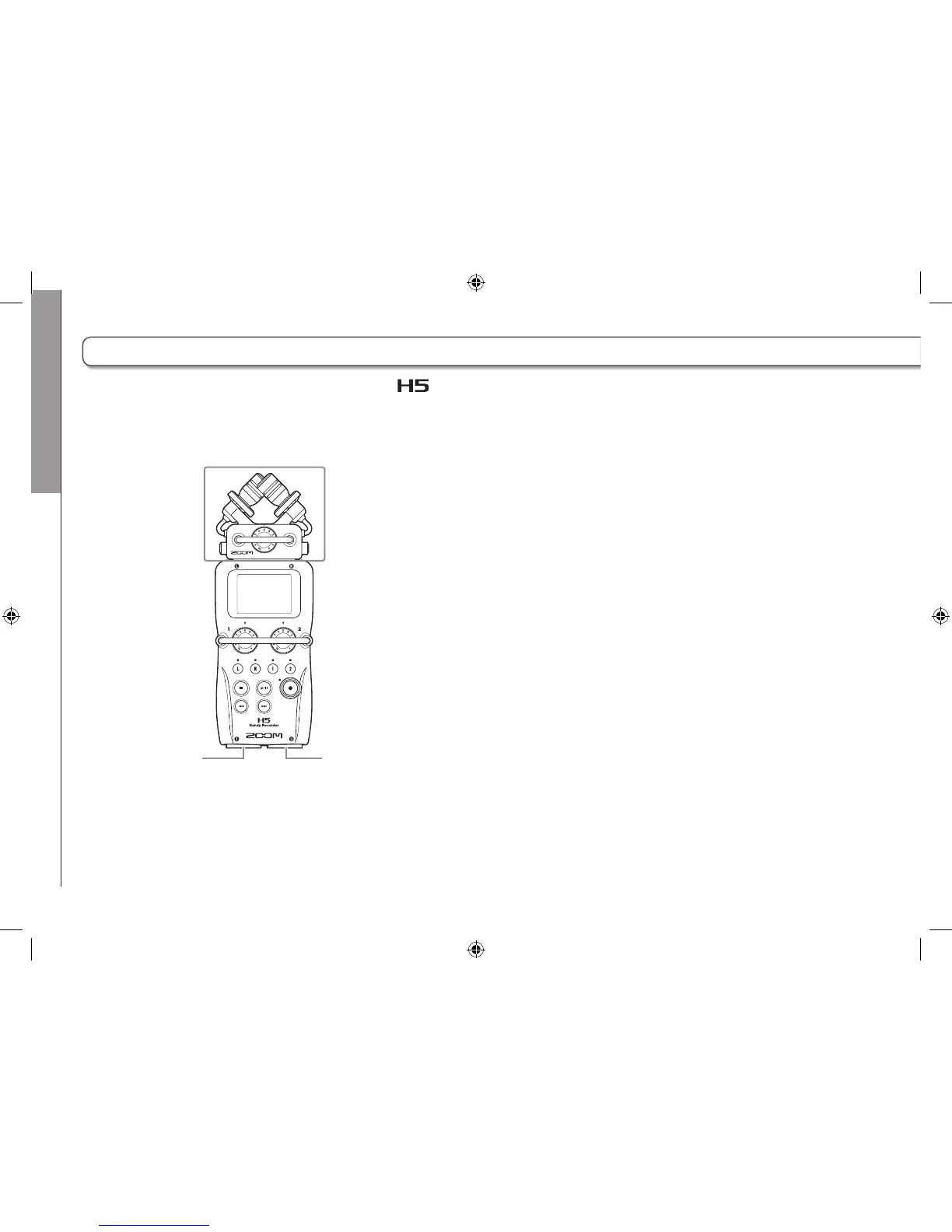

Input 1 Input 2
L/R inputs
In addition to the L/R inputs from the XY mic, the also has Inputs 1/2. These can be used together to record up to 4
tracks at the same time.
You can connect mics, instruments and other devices to Inputs 1/2.

Zoom H5 Specifications

General

G-shock sensor	No
Number of cameras	1
Sample rate	96 kHz
Audio quality	24 bit
Audio recording	Yes
Microphone sensitivity	45 dB
Compatible memory cards	SD, SDHC
Power source type	Battery
Product color	Black
Microphone maximum input	140 dB SPL
Microphone input impedance	2000 Ω
Interface	1/8\
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.

Weight and Dimensions

Depth	135.2 mm
Width	66.8 mm
Height	42.1 mm
Weight	176 g
