AAton CANTAR X3 - ANNEXES; Connectors Overview

ANNEXES
I. Connectors

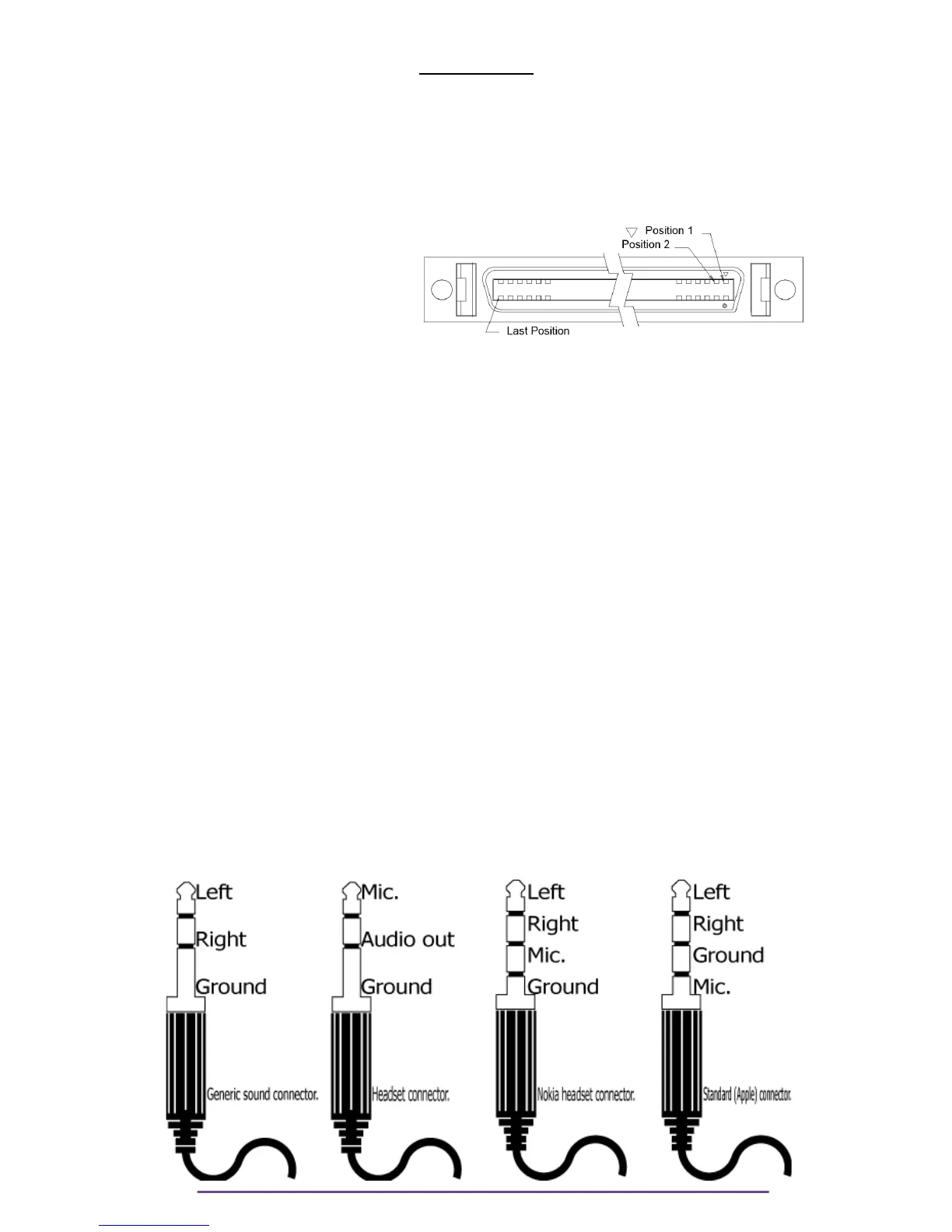

1. Mini Delta Ribbon
As seen from the outside (user's side)
Pin description:
- 1, 2: Ground
- 3: LTC In
- 4: Ascii
- 9: World clock out
- 10 & 23: Tally (no polarity)
- 11: Cantarem
- 12: AES-6 Out -
- 13: AES-6 Out +
- 14 & 15: V Batt
- 16: LTC Out
- 21: World clock In
- 22: Ground
- 24: Power On/Off
- 25: AES-5 Out -
- 26: AES-5 Out +
- Other pins: reserved for future use, do not connect.
2. Headphone Jack 6.35mm & Slate Mic Jack 3.5mm
Cantar uses:
- a generic sound connector for its Jack 6,35mm headphone connector.
- a Nokia type headset connector for its Slate Mic Jack 3,5mm, 4 points, connector.
Cantar X3 72
