AAton CANTAR X3 - Cantarem Lemo 8; Timecode Lemo 5 (F); Power XLR-4 (M); MIC XLR-3(F)

3. Cantarem Lemo 8
Lemo 8 wiring:
- 1 Ground (to Pin 1 of Mini Delta Ribbon)
- 2: Ltc Out (to Pin 16 of MDR)
- 3: Cantarem (to Pin 11 of MDR)
- 4: V Batt (to Pin 14 of MDR)
- 7: Ltc In (to Pin 3 of MDR)

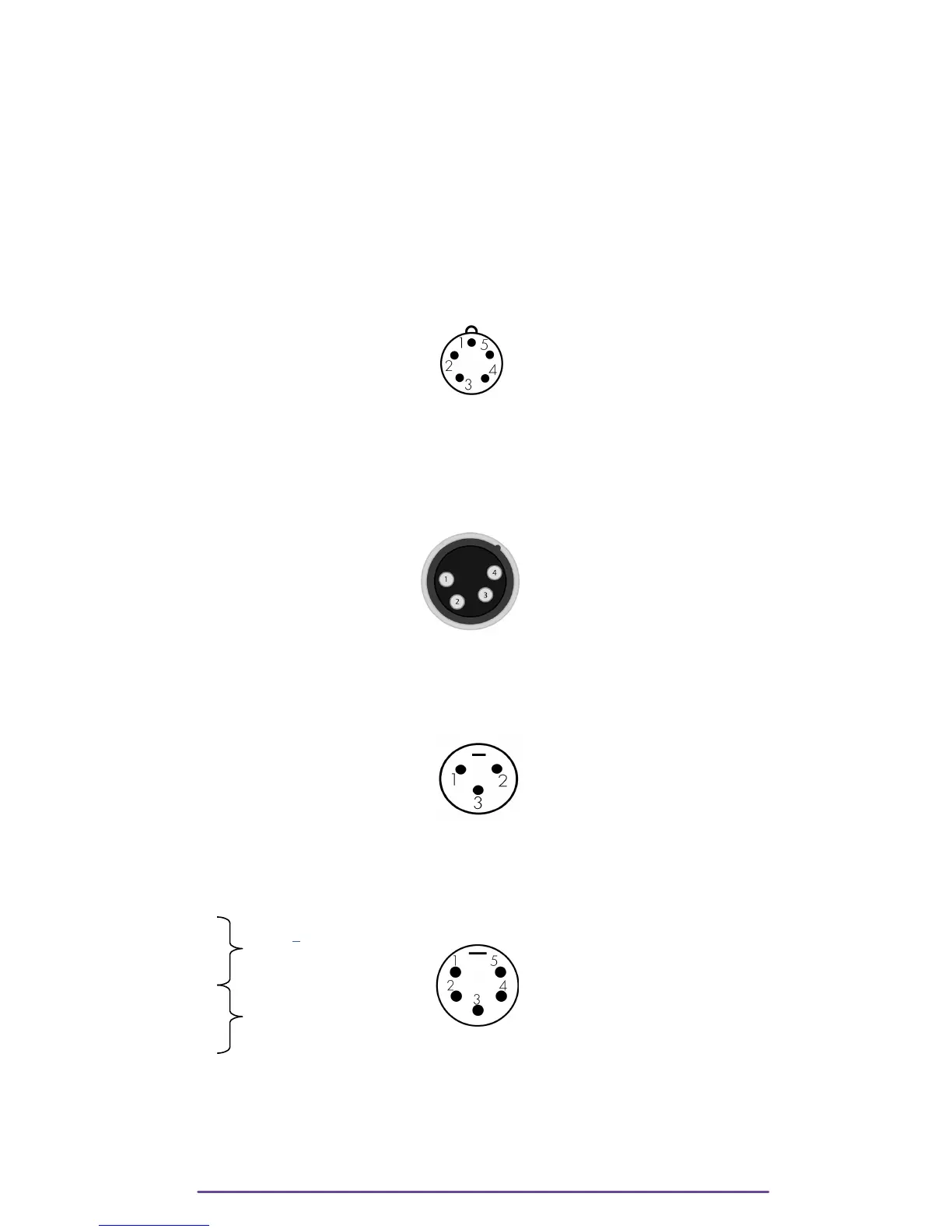

4. Timecode Lemo 5 (F)
Lemo 5 wiring:
- 1 Ground
- 2 LTC-In
- 3 Ascii
- 4 N.C
- 5 LTC-Out
5. Power XLR-4 (M)
External power: 13 to 18 V – 4 Amps
- 1 Ground
- 2 NC
- 3 NC
- 4 + Batt
6. Mic XLR-3(F)
Symmetrical transformer (max+24dBu)
- 1 Ground
- 2 Hot
- 3 Cold
7. Mic XLR-5(F)
Symmetrical transformer (max. +24dBu)
- 1 Ground
- 2 Hot Mic 3 / Mic 7
- 3 Cold
- 1 Ground
- 4 Hot Mic 4 / Mic 8
- 5 Cold
Cantar X3 73
