208 Actual signals and parameters
1405 RO 1 OFF
DELAY
Defines the release delay for relay output RO 1. 0.0 s
0.0…3600.0 s Delay time. See the figure for parameter 1404 RO 1 ON
DELAY.
1 = 0.1 s
1406 RO 2 ON
DELAY
See parameter 1404 RO 1 ON DELAY.0.0s
1407 RO 2 OFF
DELAY
See parameter 1405 RO 1 OFF DELAY.0.0s
1408 RO 3 ON
DELAY
See parameter 1404 RO 1 ON DELAY.0.0s
1409 RO 3 OFF
DELAY
See parameter 1405 RO 1 OFF DELAY.0.0s
1410 RELAY
OUTPUT 4
See parameter 1401 RELAY OUTPUT 1. Available only if
the MREL-01 output relay extension module is connected to
the drive. See parameter 0181 EXTENSION.
NOT SEL
1413 RO 4 ON
DELAY
See parameter 1404 RO 1 ON DELAY.0.0s
1414 RO 4 OFF
DELAY
See parameter 1405 RO 1 OFF DELAY.0.0s
15 ANALOG
OUTPUTS
Selection of the actual signals to be indicated through
analog output and output signal processing.
1501 AO1
CONTENT SEL
Connects a drive signal to analog output AO. 103
x…x Parameter index in group 01 OPERATING DATA. For
example, 102 = 0102 SPEED.
1502 AO1
CONTENT MIN
Defines the minimum value for the signal selected with
parameter 1501 AO1 CONTENT SEL.

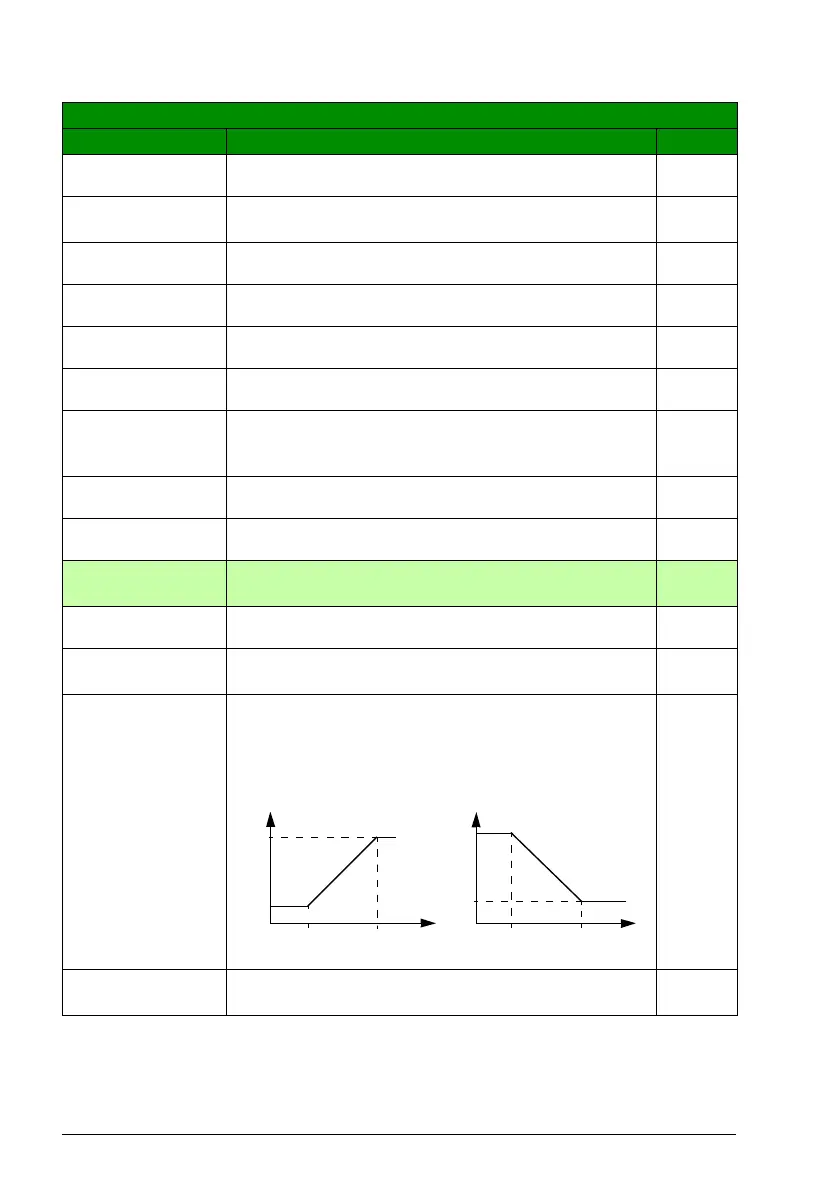

AO minimum and maximum correspond to the 1504
MINIMUM AO1 and 1505 MAXIMUM AO1 settings as
follows:
-
x…x Setting range depends on the parameter 1501 AO1
CONTENT SEL setting.
-
All parameters
No. Name/Value Description Def/FbEq
1505
1504
1502 1503
1505
1504
1503 1502
AO
content
AO (mA)
AO (mA)
AO
content
