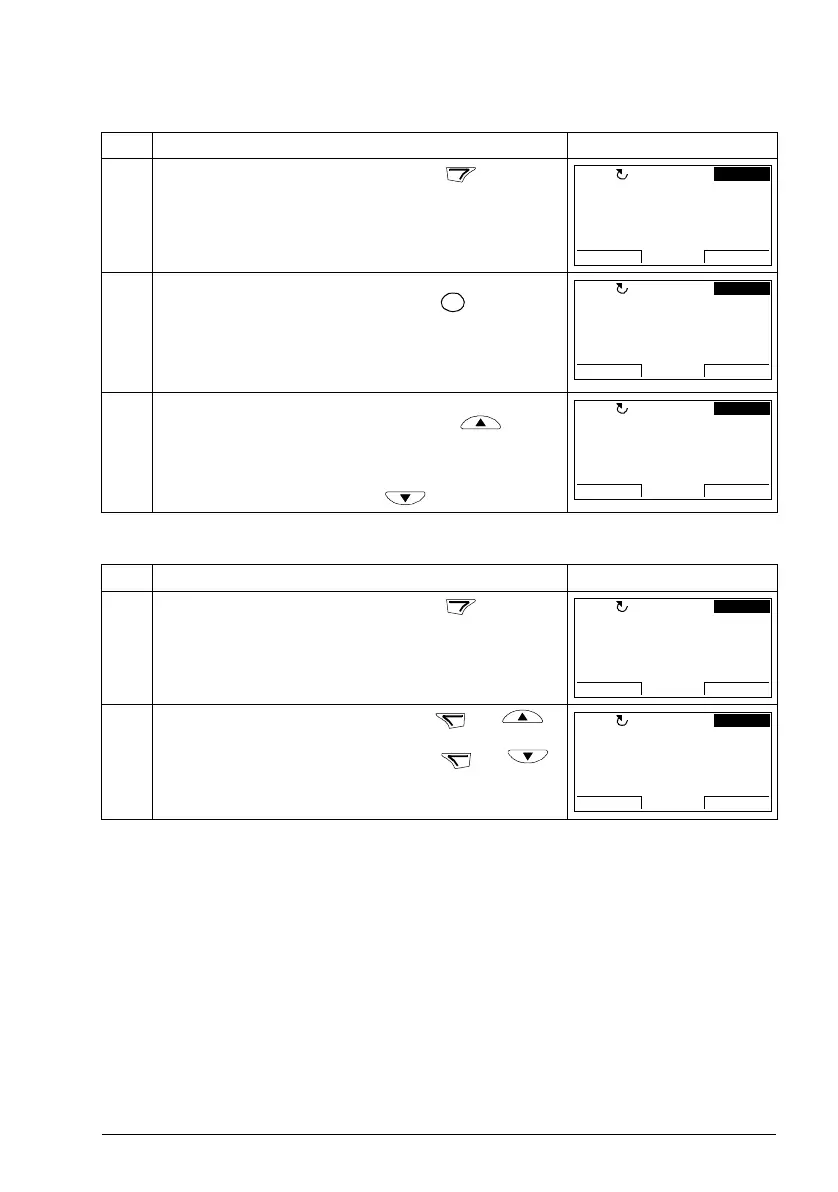

Control panels 93
How to set the speed, frequency or torque reference
How to adjust the display contrast
Parameters mode
In the Parameters mode, you can:
view and change parameter values
start, stop, change the direction and switch between local and remote control.
Step Action Display
1. If you are not in the Output mode, press repeatedly
until you get there.
2. If the drive is in remote control (REM shown on the status
line), switch to local control by pressing . The display
briefly shows a message about changing the mode and
then returns to the Output mode.
Note: With group 11 REFERENCE SELECT, you can
allow the reference modification in remote control.
3. To increase the highlighted reference value shown in
the top right corner of the display, press . The
value changes immediately. It is stored in the drive
permanent memory and restored automatically after
power switch-off.
To decrease the value, press .
Step Action Display
1. If you are not in the Output mode, press repeatedly
until you get there.
2. To increase the contrast, press keys and
simultaneously.
To decrease the contrast, press keys and
simultaneously.
EXIT
DIR MENU
00:00
REM
49.1Hz
49 1 Hz.
05 A.
10 7 %.
LOC
REM
DIR MENU
00:00
LOC
49.1Hz
49 1 Hz.
05 A.
10 7 %.
DIR MENU
00:00
LOC
50.0Hz
50 0 Hz.
05 A.
10 7 %.
EXIT
DIR MENU
00:00
LOC
49.1Hz
49 1 Hz.
05 A.
10 7 %.
MENU
MENU
DIR MENU
00:00
LOC
49.1Hz
49 1 Hz.
05 A.
10 7 %.
