396 Dimension drawings

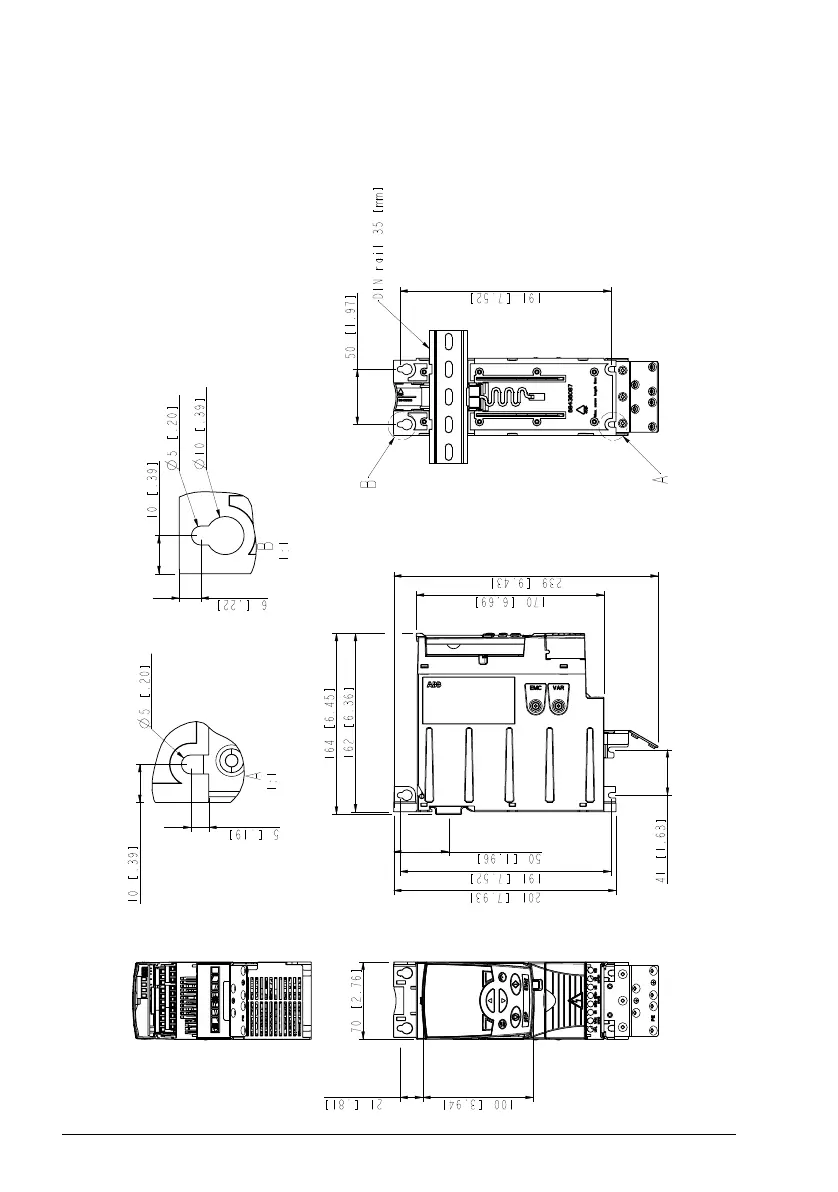

Frame sizes R0 and R1, IP20 (cabinet installation) / UL open
R1 and R0 are identical except for the fan at the top of R1.
3AUA0000067784-A
Frame sizes R0 and R1, IP20 (cabinet installation) / UL open
1)
Extension modules add 26 mm (1.02 in) to the depth measure.
1)
