ABB ACS355 series - AC500 Modbus Macro

Application macros 117
AC500 Modbus macro
The AC500 Modbus application macro configures the ACS355 drive communication
and control parameters to be applicable with the pre-engineered Starter kit for
AC500-eCo PLC and ACS355 drive over STD Modbus connection (FMBA-01
adapter).
The macro is available in ACS355 drives with firmware version 5.03C or later.
To activate the macro, set parameter 9902 APPLIC MACRO to AC500 MODBUS
(10).

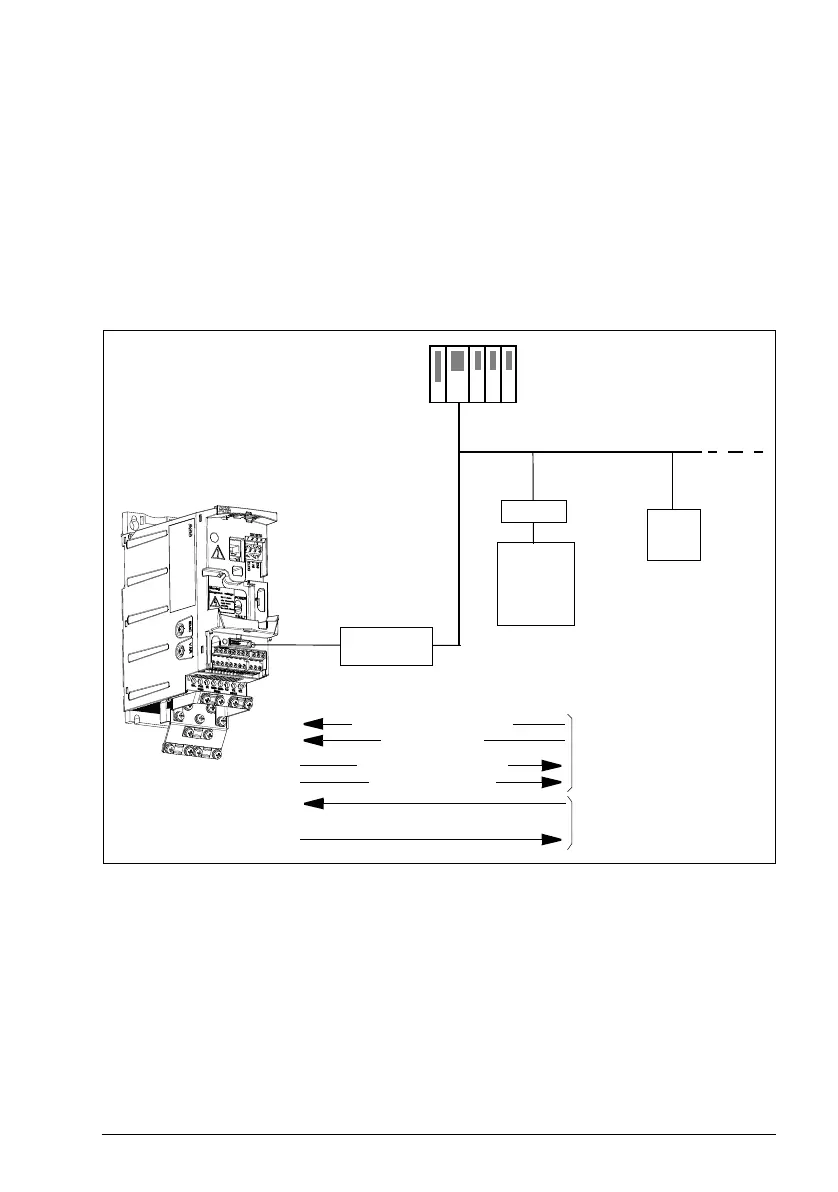

AC500-eCo PLC
Modbus
Other
devices
Process I/O (cyclic)
Service messages
(acyclic)
Drive
Data flow
Control word (CW)
References
Status word (SW)
Actual values
Parameter R/W
requests/responses
FMBA-01
adapter
X3
Drive
FMBA-01
